44123 (1232-G) - Gravely 32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive STEERING Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive

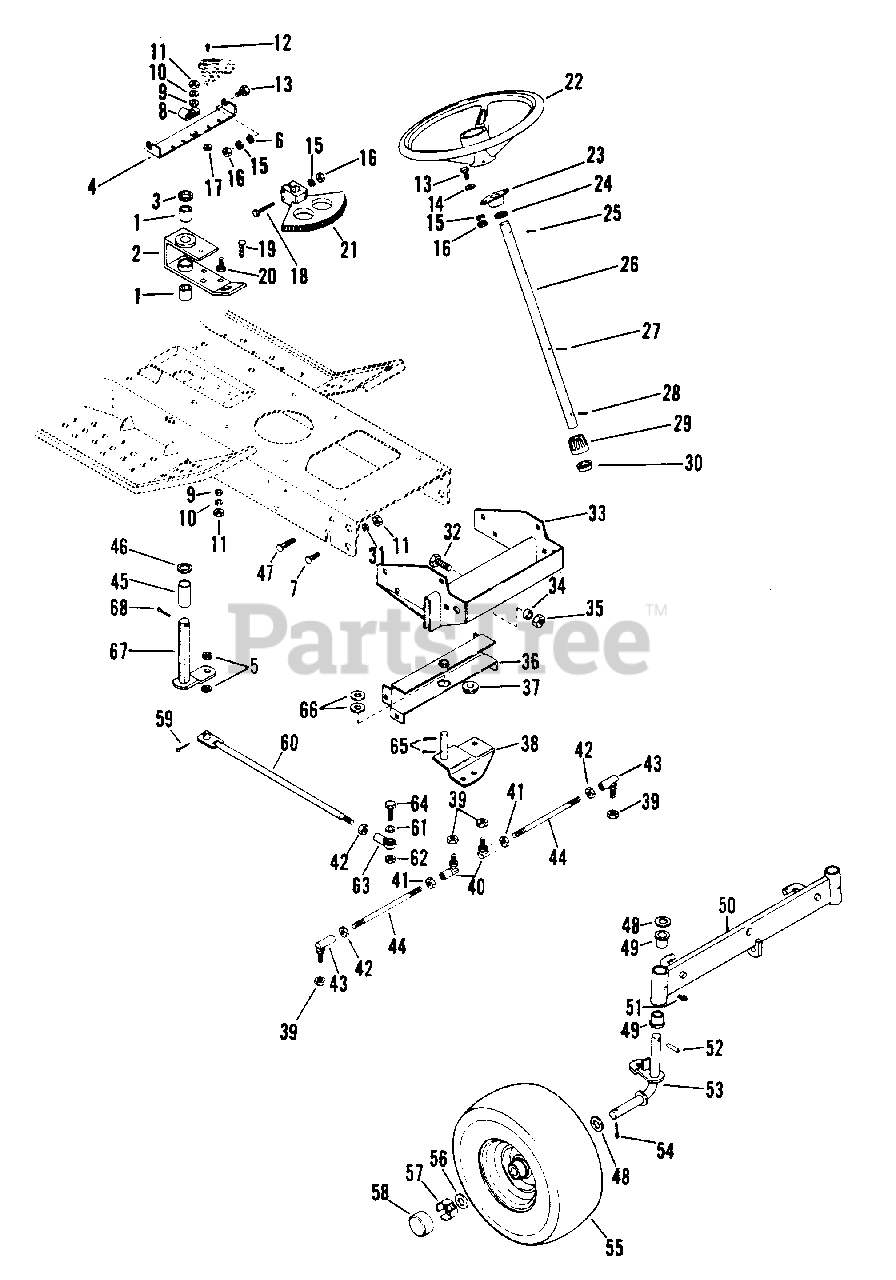

STEERING Parts Diagram

  • Title

1

Gravely 036149

BUSHING, SLEEVE
(Superseded to 05508300)

$102.99

$

In Stock, only 2 left!

0

2

Gravely 036137

BRACKET, STEERING
(Superseded to 03507800)

$

$

Not available

3

Gravely 036208

WASHER
(Superseded to 06436900)

$2.49

$

In Stock, Qty 7

0

4

Gravely 036186

BRACE
(Superseded to 03505100)

$

$

Not available

5

Gravely 417098

WASHER, FLAT .531X1.000X.063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 036520

CLIP
(Superseded to 06911000)

$

$

Not available

9

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 159929

SCREW, MACHINE 10-24X.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

13

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120379

WASHER, LOCK 5/16 SP
(Superseded to 06304800)

$

$

Not available

16

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

17

Gravely 036191

NUT, KEPS 10-24
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

18

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

19

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

20

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 036147

GEAR, STEERING BEVEL
(Superseded to 02901900)

$

$

Not available

22

Gravely 036166

WHEEL, STEERING
(Superseded to 03541000)

$

$

Not available

23

Gravely 036138

BEARING, FLANGE
(Superseded to 05402500)

$23.99

$

Usually ships in 4-12 days

0

24

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 455313

PIN, SPRING .250X1.750
(Superseded to 05803700)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 044741

COLUMN, STEERING
(Superseded to 03571900)

$

$

Not available

27

Gravely 454668

PIN, SPRING .187X1.250
(Superseded to 21072600)

$

$

Not available

28

Gravely 036144

ROLLER, NEEDLE
(Superseded to 02913300)

$17.99

$

Usually ships in 4-12 days

0

29

Gravely 036145

GEAR, STEERING PINION
(Superseded to 02902100)

$64.99

$

In Stock, only 1 left!

0

30

Gravely 036142

BUSHING, FLANGE
(Superseded to 05508000)

$19.99

$

Usually ships in 4-12 days

0

31

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

33

Gravely 036169

SUPPORT, FRONT AXLE
(Superseded to 03521000)

$

$

Not available

34

Gravely 036132

SPACER
(Superseded to 03503200)

$

$

Not available

35

Gravely 416464

NUT, LOCK 1/2-13
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

36

Gravely 036168

CHANNEL, STEERING PIVOT
(Superseded to 53510600)

$

$

Not available

37

Gravely 036173

BUSHING, FLANGE
(Superseded to 01212900)

$

$

Not available

38

Gravely 044742

PIVOT, STEERING
(Superseded to 03562500)

$72.99

$

Usually ships in 4-12 days

0

39

Gravely 412349

NUT, LOCK 3/8-24
(Superseded to 21066100)

$

$

Not available

40

Gravely 044743

JOINT, BALL L.H.
(Superseded to 03562900)

$45.99

$

Usually ships in 4-12 days

0

41

Gravely 044744

NUT, HEX 3/8-24 L.H. THREAD
(Superseded to 06507300)

$5.99

$

Usually ships in 4-12 days

0

42

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

43

Gravely 044745

JOINT, BALL, R.H.
(Superseded to 03562800)

$41.99

$

Usually ships in 4-12 days

0

44

Gravely 044746

ROD, TIE
(Superseded to 03562700)

$

$

Not available

45

Gravely 036152

SPACER
(Superseded to 03505500)

$

$

Not available

46

Gravely 131018

WASHER, FLAT .938X1.750X.134
(Superseded to 21053300)

$

$

Not available

47

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

48

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 044747

BUSHING, FLANGE
(Superseded to 05511200)

$11.99

$

In Stock, Qty 15

0

50

Gravely 044748

WELDMENT, FRONT AXLE
(Superseded to 53502900)

$

$

Not available

51

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

52

Gravely 413315

PIN, SPRING
(Superseded to 05808500)

$

$

Not available

53

Gravely 044749

SPINDLE, R.H.
(Superseded to 03562300)

$

$

Not available

53

Gravely 044750

SPINDLE, L.H.
(Superseded to 03562400)

$

$

Not available

54

Gravely 036179

PIN, COTTER THD 1/4
(Superseded to 06702700)

$

$

Not available

55

Gravely 036176

ASSEMBLY, TIRE AND WHEEL
(Superseded to 07114800)

$

$

Not available

Gravely 036776

TIRE, 6X5.00
(Superseded to 07102800)

$

$

Not available

Gravely 036777

RIM
(Superseded to 07112900)

$

$

Not available

Gravely 044751

TIRE AND WHEEL(TURF MATE)
(Superseded to 07114800)

Note: (TURF MATE)

$

$

Not available

Gravely 044701

TIRE, 18X8.50-8(TURF MATE)
(Superseded to 07120300)

Note: (TURF MATE)

$

$

Not available

Gravely 044700

RIM(TURF MATE)
(Superseded to 07122300)

Note: (TURF MATE)

$

$

Not available

Gravely 036778

BEARING, BALL .750X1.375
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

56

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 036397

GEAR, SPUR 30T
(Superseded to 03513900)

$

$

Not available

58

Gravely 036202

CAP, HUB
(Superseded to 00337700)

$2.99

$

In Stock, Qty 20+

0

59

Gravely 137185

PIN, COTTER .125X1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

60

Gravely 044752

LINK, DRAG
(Superseded to 03565400)

$

$

Not available

61

Gravely 039056

WASHER, FLAT .38X.75X.125
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

62

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

63

Gravely 044753

END, ROD
(Superseded to 03563100)

$15.99

$

In Stock, only 2 left!

0

64

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

65

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

66

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

67

Gravely 036148

ARM AND SHAFT
(Superseded to 03505400)

$

$

Not available

68

Gravely 187988

PIN, COTTER .187X1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0
