44123 (1232-G) - Gravely 32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive FRAME AND REAR DECK Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive

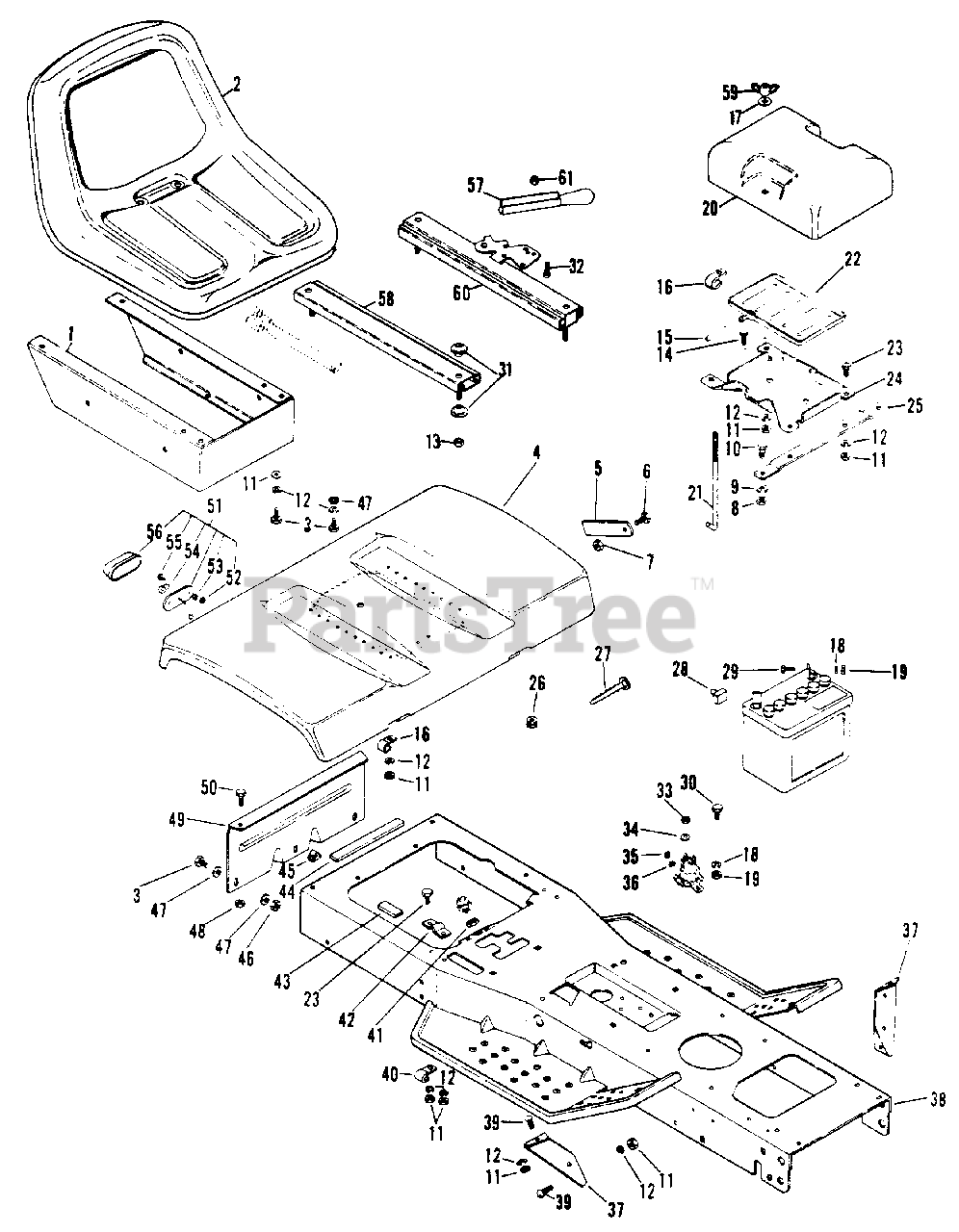

FRAME AND REAR DECK Parts Diagram

  • Title

1

Gravely 044435

FRAME, SEAT
(Superseded to 21268300)

$

$

Not available

2

Gravely 038940

SEAT, HIGH BACK
(Superseded to 59100200)

$

$

Not available

3

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 044713

DECK, REAR
(Superseded to 03563200)

$

$

Not available

5

Gravely 040685

CATCH, DECK
(Superseded to 03556600)

$

$

Not available

6

Gravely 428638

BOLT, HEX 3/8-16X.625
(Superseded to 05940100)

$

$

Not available

7

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

12

Gravely 120379

WASHER, LOCK 5/16 SP
(Superseded to 06304800)

$

$

Not available

13

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 044714

HOSE, DRAIN
(Superseded to 03564600)

$

$

Not available

16

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

20

Gravely 044348

COVER, BATTERY
(Superseded to 04912900)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 012894

BOLT, HOLD DOWN
(Superseded to 21370600)

$90.99

$

In Stock, only 1 left!

0

22

Gravely 044716

TRAY, PLASTIC BATTERY
(Superseded to 03564300)

$

$

Not available

23

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 044717

TRAY, BATTERY
(Superseded to 03564400)

$

$

Not available

25

Gravely 044718

STRAP
(Superseded to 03562200)

$

$

Not available

26

Gravely 039632

GROMMET
(Superseded to 07506500)

$3.49

$

In Stock, only 1 left!

0

27

Gravely 036313

TIE DOWN
(Superseded to 07517300)

$

$

Not available

28

Gravely 039619

INSULATOR
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 044719

INSULATOR
(Superseded to 07516600)

$

$

Not available

29

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

31

Gravely 035670

SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

32

Gravely 159929

SCREW, MACHINE 10-24 X.625 P/HD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

33

Gravely 124920

NUT, JAM 5/16
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

34

Gravely 138538

WASHER, LOCK 5/16 INT. TOOTH
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

35

Gravely 453284

NUT, HEX 10-32
(Superseded to 06502600)

$

$

Not available

36

Gravely 041170

WASHER, LOCK #10 EXT.
(Superseded to 06310400)

$1.99

$

In Stock, only 1 left!

0

37

Gravely 044720

STRUT, L.H. FOOTBOARD
(Superseded to 03561700)

$

$

Not available

37

Gravely 044721

STRUT, R.H. FOOTBOARD
(Superseded to 03561600)

$

$

Not available

38

Gravely 044722

FRAME, MAIN

$

$

Not available

39

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

40

Gravely 044715

J-CLAMP
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0

41

Gravely 036509

NUT
(Superseded to 06509600)

$

$

Not available

42

Gravely 036511

BRACE
(Superseded to 02912300)

$

$

Not available

43

Gravely 044723

TAPE, FOAM
(Superseded to 03558100)

$

$

Not available

44

Gravely 044724

TAPE, FOAM
(Superseded to 03558200)

$

$

Not available

45

Gravely 036479

BUMPER
(Superseded to 07505400)

$

$

Not available

46

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 036077

DRAWBAR
(Superseded to 03502300)

$

$

Not available

50

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 039488

ASSEMBLY, TAILLIGHT
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

52

Gravely 120361

NUT, 10-24 HEX
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

53

Gravely 120217

WASHER, LOCK NO. 10 SP
(Superseded to 21049900)

$

$

Not available

54

BULB, GE NO. 1895

$

$

Not available

55

Gravely 159920

SCREW, MACHINE 10-24X.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

56

Gravely 036784

LENS
(Superseded to 03137500)

$

$

Not available

57

Gravely 035643

HANDLE, SEAT ADJUSTER
(Superseded to 08650800)

$

$

Not available

58

Gravely 036542

ADJUSTER, SEAT

$

$

Not available

59

Gravely 126177

NUT, WING 1/4-20
(Superseded to 21051800)

$

$

Not available

60

Gravely 035641

ADJUSTER, SEAT W/LATCH
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

61

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

NS

Gravely 035318

DECAL, TRACTOR(SAFETY/CONTROLS)
(Superseded to 03542900)

Note: (SAFETY/CONTROLS)

$

$

Not available

NS

Gravely 040046

DECAL, AMERICA
(Superseded to 03327700)

$

$

Not available

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days
