4410 (181-184D725) - Mastercraft Walk-Behind Mower, Electric (1991) Handle Detail Parts Diagram

Walk-Behind Mower, Electric

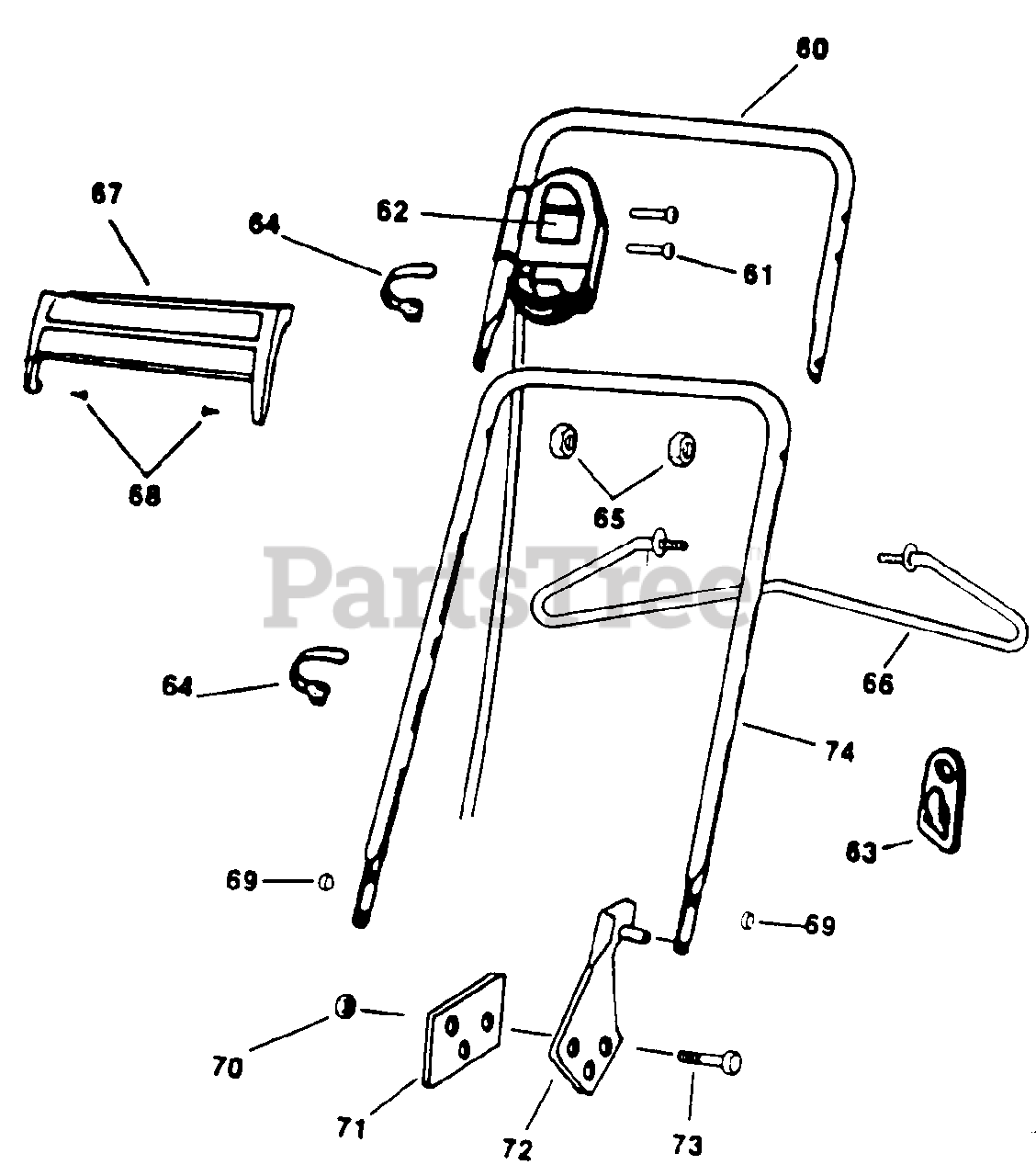

Handle Detail Parts Diagram

  • Title

60

MTD 749-0842

Upper Handle

$

$

Not available

61

MTD 710-1150

Screw #7-19 x 1" Thread Forming

$

$

Not available

62

MTD 777-9380

Label-Switch Box

$

$

Not available

63

MTD 725-1590

Strain Relief

Note: (Extension Cord)

$

$

Not available

64

MTD 726-0303

Plastic Tie

$

$

Not available

65

MTD 712-0441

Lock Nut 1/4-20 Hex Flange

$

$

Not available

66

MTD 747-0790

Cord Control Rod
(Superseded to 747-1094)

$

$

Not available

67

MTD 720-0273

Trim Panel

Note: (Optional)

$

$

Currently unavailable

68

MTD 710-1168

Screw #10 x 3/4" Tapping
(Superseded to 710-1128)

$

$

Not available

69

MTD 714-0225

Cotter Pin 3/32 x 1/2"

$

$

Not available

70

MTD 712-0429

Hex Nut 5/16-18 Locking

$4.49

$

In Stock, Qty 20+

0

71

MTD 782-3017

Nut Plate

Note: (LH)

$

$

Currently unavailable

72

MTD 682-3008

Handle Bracket

Variations

MTD 682-3008-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 710-0376

Hex Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

74

MTD 749-0843

Lower Handle

$

$

Not available
