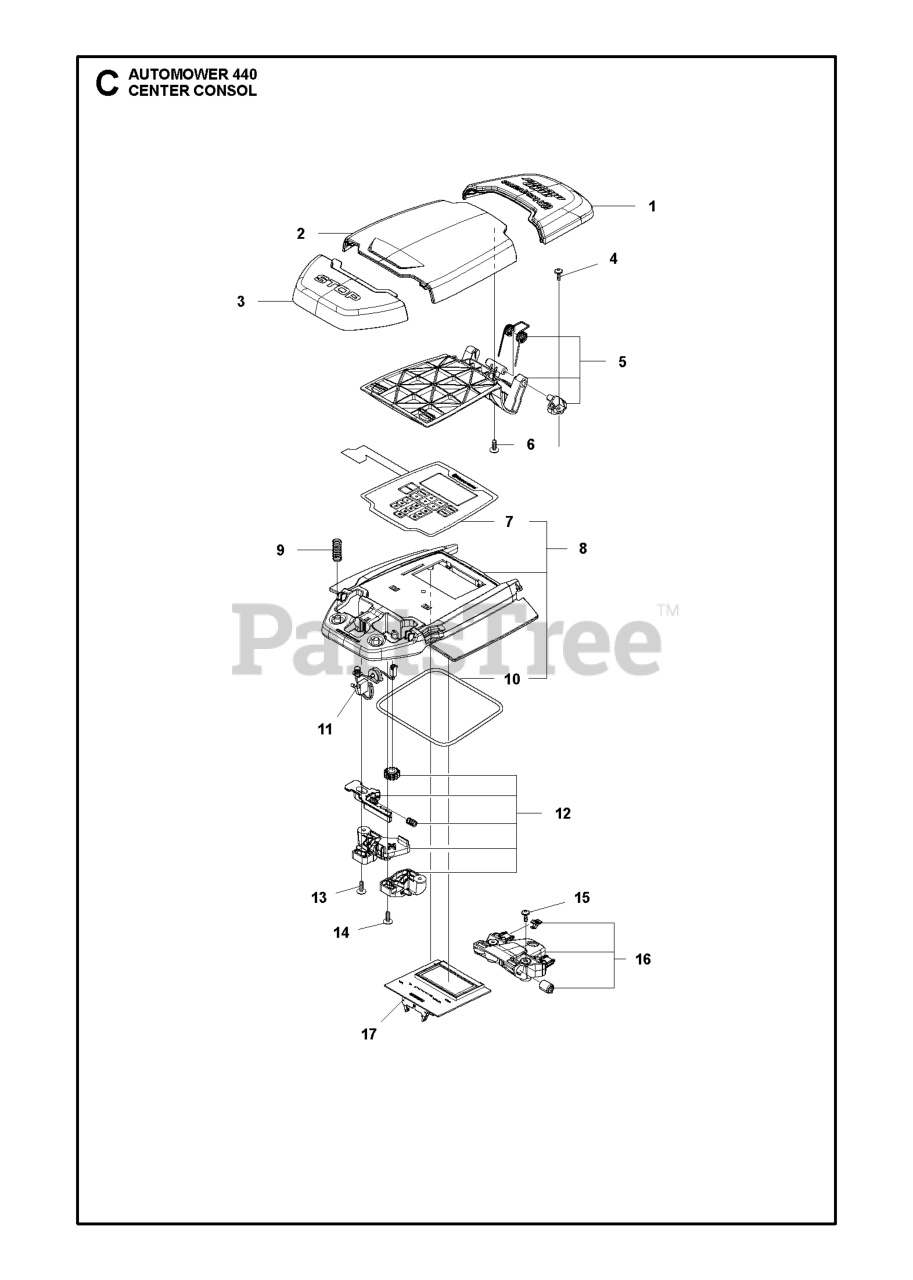

440 - Husqvarna Automower Robotic Lawn Mower (2019) CENTER CONSOL Parts Diagram

Automower Robotic Lawn Mower

CENTER CONSOL Parts Diagram

  • Title

8

Husqvarna 581620601

Note: Cover KIT

$

$

Currently unavailable

14

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

7

Husqvarna 579627901

Note: Keyboard

$

$

Currently unavailable

4

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

6

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

3

Husqvarna 579458101

BUTTON STOP

Note: Button

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574874706

SEALING STRIP

Note: Sealing Strip (1 pcs, ¯5 mm)

$11.99

$

In Stock, only 1 left!

0

17

Husqvarna 592910401

PRINTED CIRCUIT ASSY HMI BOARD

Note: Printed Circuit ASSY

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579458501

HATCH ROBOTIC GREY

Note: Hatch

$22.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588797506

NEEDS DESCRIPTION

Note: Cover

$

$

Currently unavailable

15

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 535130101

SPRING

Note: Spring

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 581620701

SUPPORT KIT FRONT

Note: Support KIT

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574480302

SWITCH STOP BUTTON NO ANCHOR

Note: Switch

$31.99

$

Usually ships in 3-10 days

0

5

Husqvarna 501065801

HINGE KIT KIT

Note: Hinge KIT

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 501066001

LOCK KIT

Note: Locking Plate KIT

$34.99

$

Usually ships in 3-10 days

0
