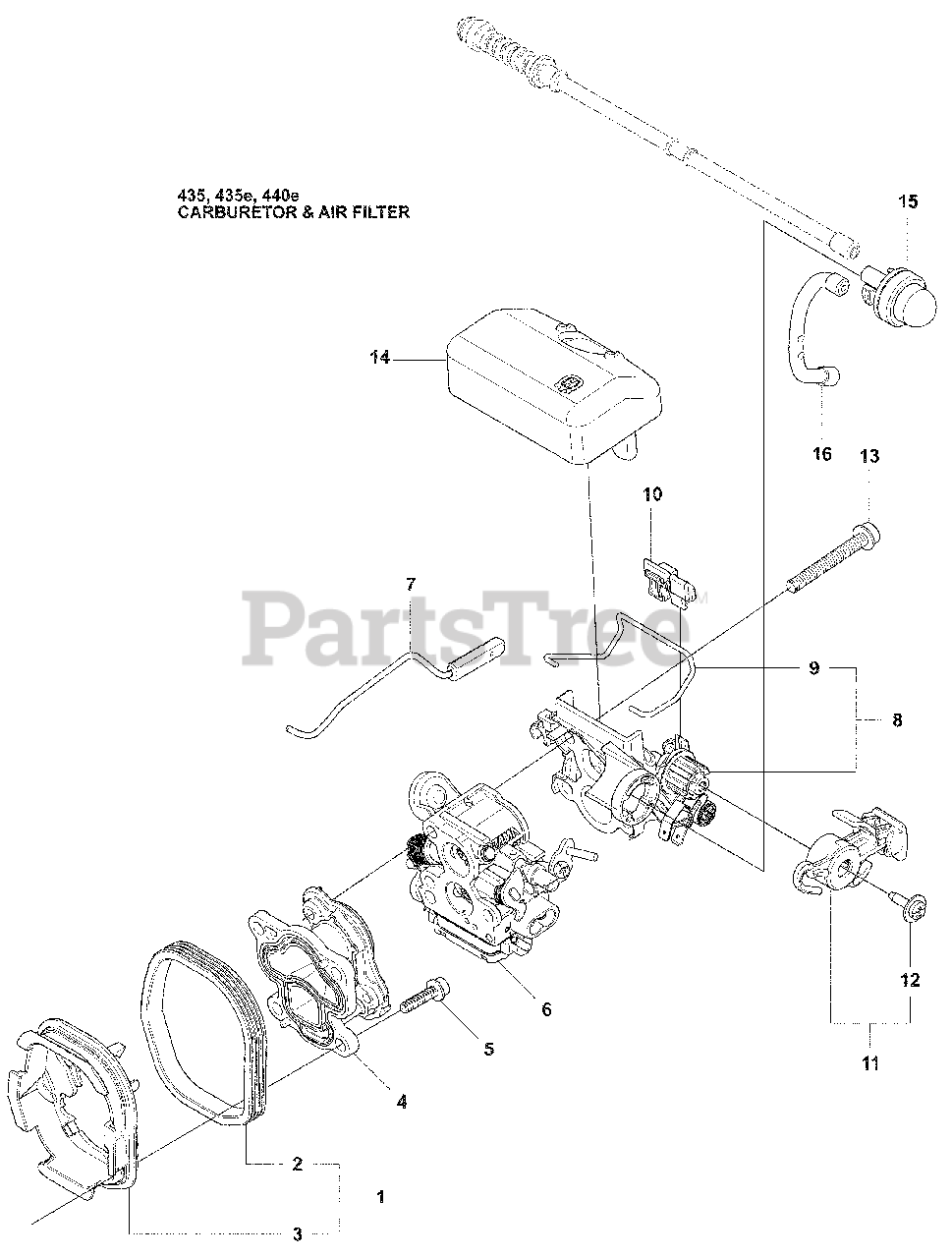

440 e - Husqvarna Chainsaw (2009-02) Carb. & Air Filter Parts Diagram

Chainsaw

Carb. & Air Filter Parts Diagram

  • Title

1

504 72 47-01

Note: Insulation wall assy

$

$

Not available

2

504 72 45-01

Note: Insulation wall rubber

$

$

Not available

3

504 72 44-01

Note: Inulation wall plastic

$

$

Not available

4

504 20 12-01

Note: Inlet pipe

$

$

Not available

5

503 20 02-16

Note: Screw

$

$

Not available

6

506 45 05-01

Note: Carburettor

$

$

Not available

7

544 28 44-01

Note: Throttle rod assy

$

$

Not available

8

544 97 64-01

Note: Filter holder assy

$

$

Not available

9

544 39 26-01

Note: Shackle

$

$

Not available

10

504 71 25-01

Note: Guide sliding shoe

$

$

Not available

11

544 84 43-02

Note: Control assy

$

$

Not available

12

544 97 66-01

Note: Screw

$

$

Not available

13

503 20 02-40

Note: Screw

$

$

Not available

14

544 80 54-02

Note: Air filter assy (44 micron)

$

$

Not available

14

544 80 54-03

Note: Air filter assy (felt)

$

$

Not available

15

503 93 66-01

Note: Air purge

$

$

Not available

16

544 40 19-01

Note: Hose, airpurge suction

$

$

Not available
