440 (216-440-100) - Cub Cadet Rear-Tine Tiller Engine (1996) Engine Internal And Air Cleaner Assembly Parts Diagram

Rear-Tine Tiller Engine

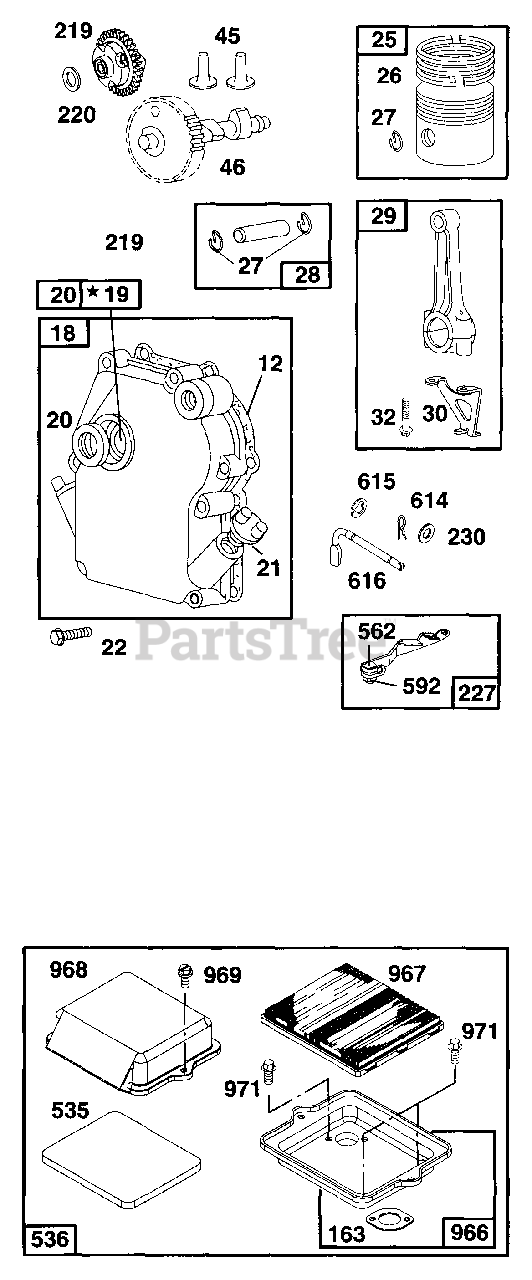

Engine Internal And Air Cleaner Assembly Parts Diagram

  • Title

12

Cub Cadet BS-270080

Gasket-Crankcase (.015" Thick, Std.)

Note: Included in Gasket Set - Part No. BS-495603.

$

$

Not available

Cub Cadet BS-270125

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set - Part No. BS-495603.

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270126

Gasket-Crankcase (.009" Thick)

Note: Included in Gasket Set - Part No. BS-495603.

$8.49

$

In Stock, only 2 left!

0

18

Cub Cadet BS-494044

Cover Assy.-Crkcse.

$

$

Not available

19

Cub Cadet BS-297603

Bushing-Crankcase Cover

$

$

Not available

20

Cub Cadet BS-294606

Seal-Oil

$

$

Not available

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94682

Screw-Cover Mtg.

$

$

Not available

25

Cub Cadet BS-298904

Piston Assy. (Std.)

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Assembly (.010" O.S.)

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Assembly (.020" O.S.)

$

$

Not available

Cub Cadet BS-298907

Piston Assembly (.030" O.S.)

Note: Note: For Chrome Ring Set (Standard Size) Order No. BS-299742.

$

$

Not available

26

Cub Cadet BS-298982

Ring Set-Piston Std.

$48.99

$

In Stock, Qty 8

0

Cub Cadet BS-298983

Ring Set-Piston (.010" O.S.)

$

$

Not available

Cub Cadet BS-298984

Ring Set-Piston (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set-Piston (.030" O.S.)

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assy.-Piston (Standard)

$8.99

$

In Stock, only 3 left!

0

Cub Cadet BS-298908

Pin Assy.-Piston (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-299430

Rod Assy.-Connecting

Note: Note: For Conn. Rod With .020" Undersize Crankpin Bore Order No. BS-390459.

$40.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-221890

Dipper-Conn. Rod
(Superseded to BS-691759)

$8.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94745

Screw-Conn. Rod

$

$

Not available

45

Cub Cadet BS-260642

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-212733

Gear-Cam

$

$

Not available

163

Cub Cadet BS-271935

Gasket-Air Cleaner Mounting
(Superseded to BS-271935S)

Note: Included in Gasket Set - Part No. BS-495603.

$6.49

$

In Stock, Qty 13

0

219

Cub Cadet BS-494845

Gear-Governor

$

$

Not available

220

Cub Cadet BS-221551

Washer-Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-490374

Lever Assy.-Governor

$

$

Not available

230

Cub Cadet BS-222450

Washer-Gov. Lever
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

535

Cub Cadet BS-491435

Element-Air Cleaner
(Superseded to BS-491435S)

$4.99

$

In Stock, Qty 11

0

536

Cub Cadet BS-494279

Cleaner-Air

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.

$

$

Not available

614

Cub Cadet BS-93306

Pin-Cotter

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 3 left!

0

616

Cub Cadet BS-231077

Crank-Governor

$

$

Currently unavailable

966

Cub Cadet BS-492797

Base-Air Cleaner
(Superseded to BS-494279)

$

$

Not available

967

Cub Cadet BS-491588

Filter-Air Cleaner
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-495872

Cover-Air Cleaner
(Superseded to BS-791082)

$20.99

$

In Stock, Qty 13

0

969

Cub Cadet BS-490073

Screw-Air Cleaner
(Superseded to BS-694515)

$5.99

$

In Stock, Qty 8

0

971

Cub Cadet BS-94018

Screw-Hex. Hd.
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

Cub Cadet BS-299742

Chrome Ring Set (Standard Size)

$

$

Not available

Cub Cadet BS-390459

Connecting Rod

$

$

Not available

Cub Cadet BS-495603

Gasket Set

Note: Includes items 12 & 163

$32.99

$

In Stock, Qty 20+

0
