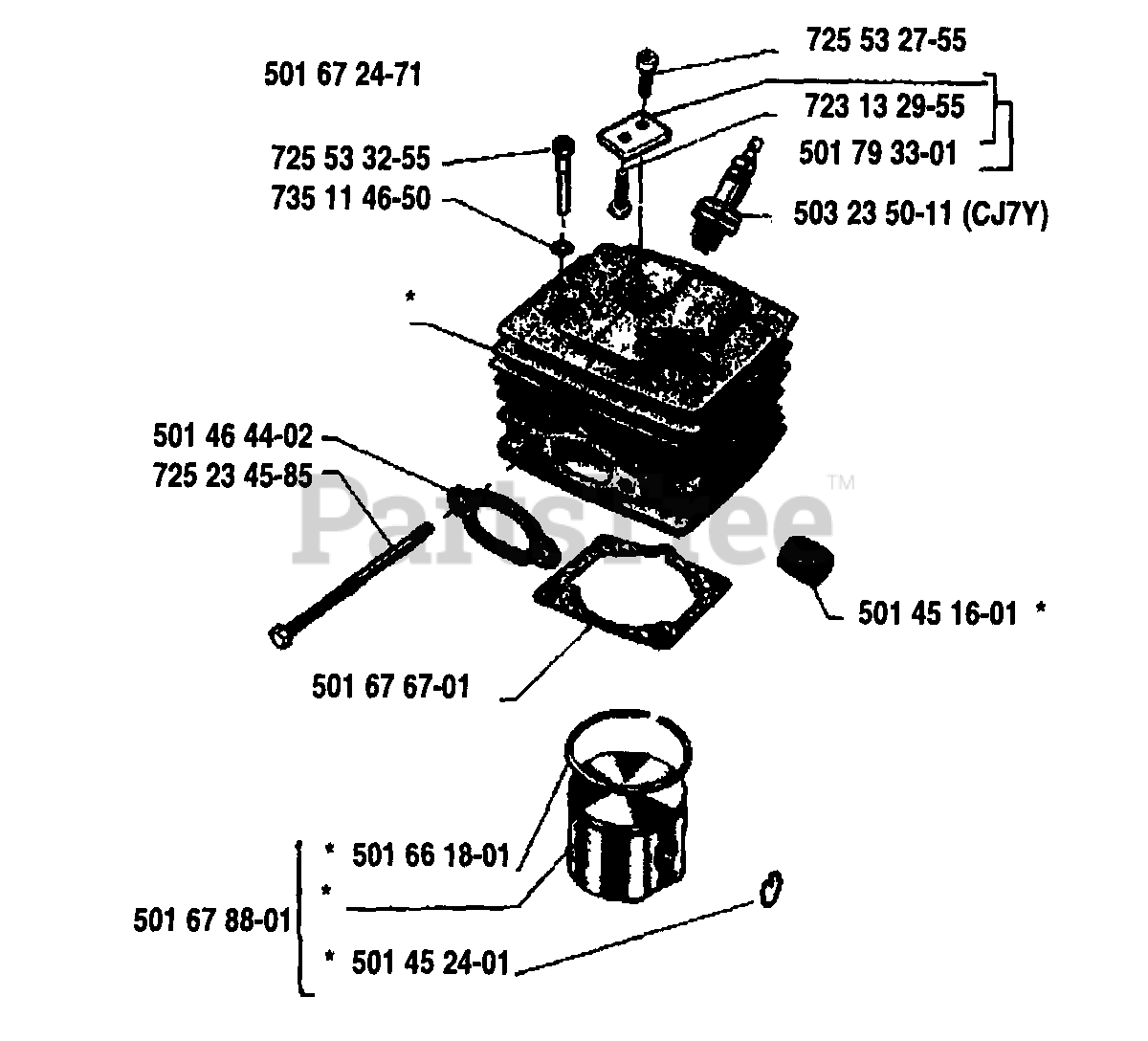

44 - Husqvarna Chainsaw (1985-11) Piston/Cylinder Parts Diagram

Chainsaw

Piston/Cylinder Parts Diagram

  • Title
501672471

Husqvarna 501672471

CYLINDER W/ PISTON

$

$

Not available

725533255

Husqvarna 725533255

SCREW MC6S 5X22

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725532755

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, only 3 left!

0

723132955

Husqvarna 723132955

SCREW MCS 5X16
(Superseded to 503203216)

$6.49

$

Usually ships in 3-10 days

0

501793301

Husqvarna 501793301

BRACKET NLA

$

$

Not available

503235011

Husqvarna 503235011

SPARK PLUG NGK BPM7A
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

$

$

Currently unavailable

725234585

Husqvarna 725234585

STUD 5 X 80
(Superseded to 503208007)

$20.99

$

Usually ships in 3-10 days

0

501676701

Husqvarna 501676701

CYL. GSKT
(Superseded to 501676703)

$

$

Not available

501451601

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 1 left!

0

501661801

Husqvarna 501661801

PISTON RING
(Superseded to 503289005)

$31.99

$

In Stock, only 3 left!

0

501678801

$

$

Not available

501452401

Husqvarna 501452401

LOCKING RING
(Superseded to 737441000)

$6.49

$

Usually ships in 3-10 days

0
