44-1975-6 (126-528T131) - Huskee Walk-Behind Mower (1996) (Tractor Supply) Transmission Parts Diagram

Walk-Behind Mower

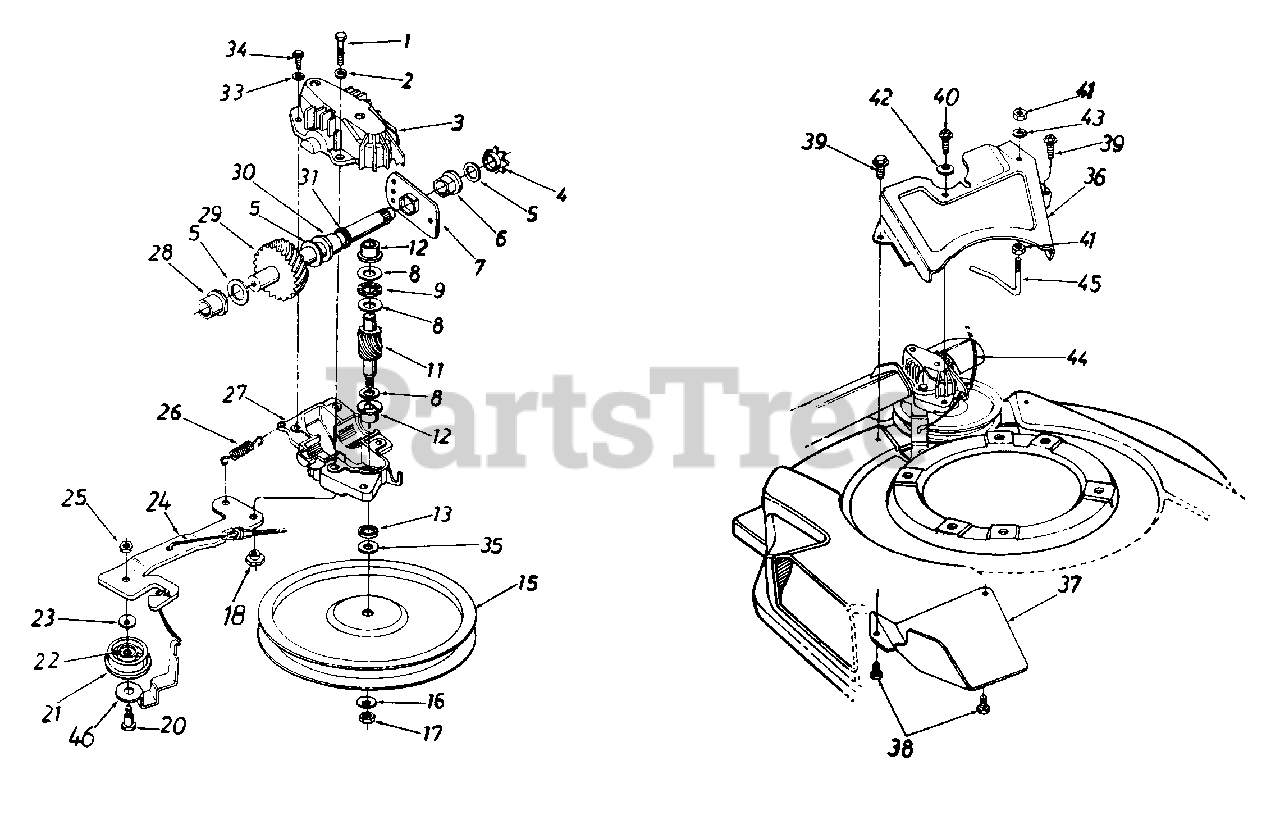

Transmission Parts Diagram

  • Title

1

MTD 710-1062

Hex Patch Bolt 1/4-20 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

2

MTD 726-0329

L-Wash. 1/4" I.D.

$

$

Currently unavailable

3

MTD 717-0418A

Upper Hsg. Half

$

$

Not available

4

MTD 713-0400

#48 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

MTD 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

MTD 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

7

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

MTD 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

MTD 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

11

MTD 717-1216

11 Tooth Helical Gear
(Superseded to 917-1216)

$

$

Not available

12

MTD 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

MTD 721-0212

Oil Seal

$

$

Not available

15

MTD 756-0330A

Fl-Pulley 5.06" I.D.

$

$

Not available

16

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0351

Hex Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

MTD 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

20

MTD 738-0826

Shld. Bolt .375" Dia. x .40"

$12.99

$

Usually ships in 3-6 days

0

21

MTD 656-0008

Fl-Idler Plastic 1.50" Dia.
(Superseded to 956-0008)

Note: (Incl. ref. no. 22)

$20.99

$

In Stock, only 2 left!

0

22

MTD 741-0556

Needle Brg. .375" x .375"

$17.99

$

In Stock, only 3 left!

0

23

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

24

MTD 782-7570

Idler Brk't. Ass'y.
(Superseded to 682-0054)

Note: New Part

$25.99

$

Usually ships in 3-6 days

0

25

MTD 712-0138

Hex Patch L-Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

26

MTD 732-0357A

Extension Spring 1.12" Lg.

Note: New Part

$4.49

$

In Stock, Qty 13

0

27

MTD 717-0419B

Lower Hsg. Half

$

$

Not available

28

MTD 741-0415

Flange Bearing .56 Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 717-0616A

Shaft Ass'y.

Note: New Part

$

$

Not available

30

MTD 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

MTD 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 15

0

33

MTD 736-0722

L-Wash. #10 I.D.

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

MTD 736-0410

Hex Washer .26" x .88"
(Superseded to 936-0410)

$

$

Not available

36

MTD 17718

Transmission Belt Guard

Variations

MTD 17718-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 17718-0638

No Longer Available GUARD-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17718-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17718-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

$

$

37

MTD 17064

Belt Cover

Variations

MTD 17064-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

39

MTD 710-0599

Hex AB-Tap Scr. 1/4 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0896

Hex B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: Not Part Of transmission Complete

$4.99

$

In Stock, only 1 left!

0

42

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

43

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

Note: Not Part Of transmission Complete

$4.49

$

In Stock, Qty 11

0

44

MTD 746-0710A

S.P. Cable - 48" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

45

MTD 747-0549

S.P. Belt Guard

$

$

Not available

46

MTD 782-7569

Belt Keeper

Note: New Part

$7.49

$

Usually ships in 3-6 days

0

MTD 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: See Transmission For Breakdown

$234.99

$

Usually ships in 3-6 days

0
