438 (190-438-100) - Cub Cadet Broadcast Spreader att Broadcast Spreader Parts Diagram

Broadcast Spreader

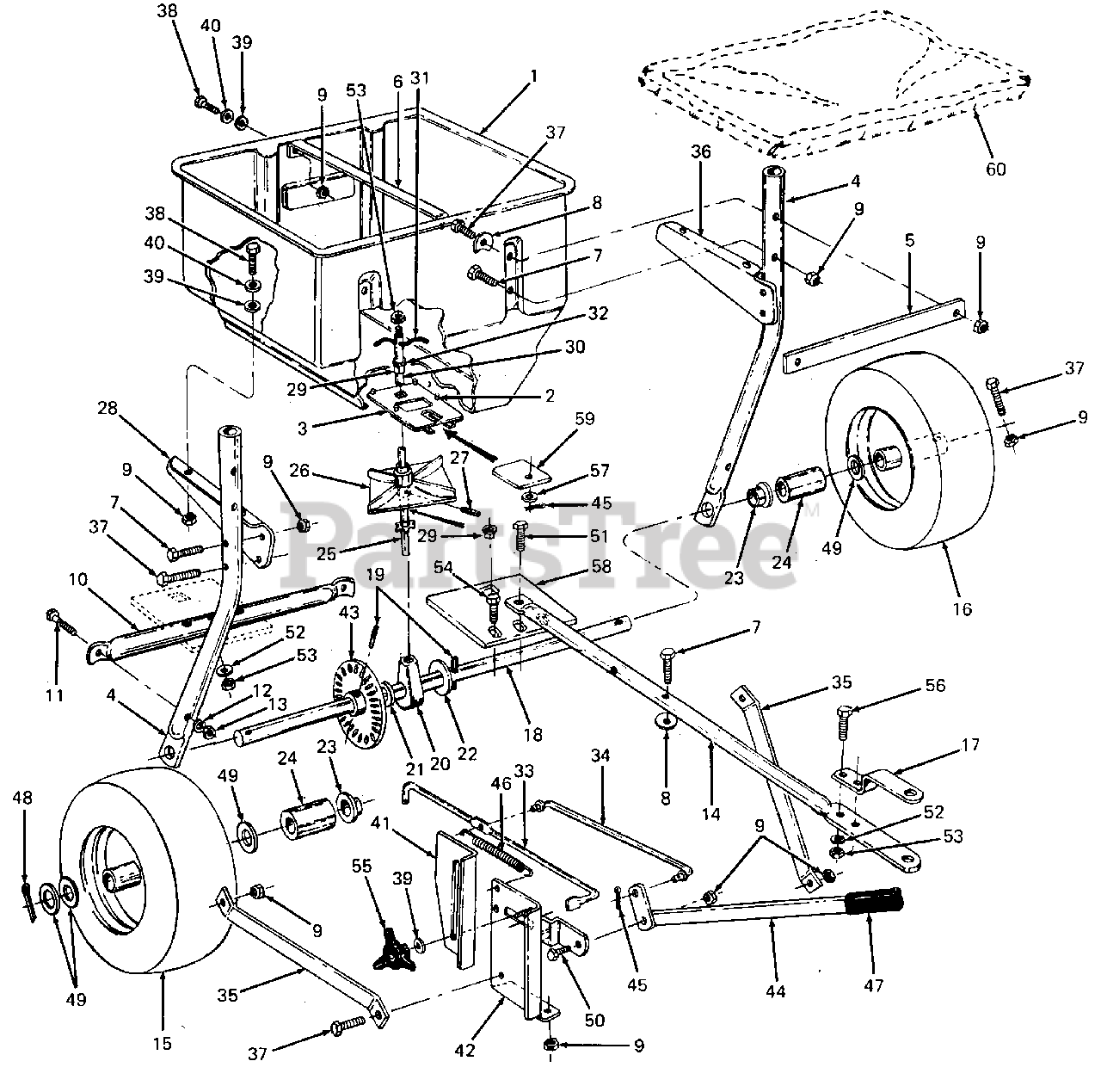

Broadcast Spreader Parts Diagram

  • Title

1

Cub Cadet AF-43805

Hopper

$

$

Not available

2

Cub Cadet AF-43882

Rivet

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet AF-62482

Closure Assy, Guide

Note: (Includes Ref. No. 2)

$

$

Not available

4

Cub Cadet AF-43806

Support Tube, Hopper/Axle

$

$

Currently unavailable

5

Cub Cadet AF-23556

Strap, Tube

$

$

Currently unavailable

6

Cub Cadet AF-23697

Strap, Hopper

$

$

Not available

7

Cub Cadet 710-0886

Screw, Hex Cap, 1/4-20 X 1.5 Lg GR 5
(Superseded to 910-0886)

$

$

Not available

8

Cub Cadet AF-43877

Washer, Bowed, 1/4 ID

$

$

Not available

9

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet AF-43808

Tube, Crossover

$35.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0380

Screw, Hex Cap, 5/16-18 X 1.75 Lg
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

14

Cub Cadet AF-43807

Tube, Hitch

$

$

Not available

15

Cub Cadet AF-43845

Wheel Assy, w/Bearing RH, 14 X 4

$

$

Currently unavailable

16

Cub Cadet AF-43846

Wheel Assy, Drive LH, 14 X 4

$

$

Not available

17

Cub Cadet AF-23687

Bracket, Hitch

$28.99

$

Usually ships in 3-6 days

0

18

Cub Cadet AF-23522

Shaft, Axle

$

$

Currently unavailable

19

Cub Cadet 715-0246

Pin, Roll, 3/16 Dia X 1.25 Lg
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet AF-43871

Bushing, Axle/Shaft

$28.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 1540-032

Washer, Flat, .781 X 1.59 X .06

$

$

Not available

22

Cub Cadet 736-0305

Washer, Flat, .81 X 2.0 X .150
(Superseded to 736-0306)

$

$

Not available

23

Cub Cadet 741-0382

Bearing, Flange

$

$

Not available

24

Cub Cadet AF-23708

Spacer

$

$

Not available

25

Cub Cadet AF-62472

Shaft, Sprocket

$

$

Not available

26

Cub Cadet AF-04367

Plate Assy, Spreader
(Superseded to 04367)

$77.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 715-0152

Pin, Spring, 1/8 X .62 Lg

$

$

Not available

28

Cub Cadet AF-23696

Brace, Hopper RH

$

$

Currently unavailable

29

Cub Cadet AF-43852

Bushing, Nylon, .375 ID
(Superseded to AF-44285)

$20.99

$

Usually ships in 3-6 days

0

30

Cub Cadet AF-23553

Sleeve, Agitator
(Superseded to AF-23766)

$

$

Not available

31

Cub Cadet AF-43878

Wire, Agitator
(Superseded to AF-43878P)

$

$

Not available

32

Cub Cadet AF-44261

Nut, Push, 3/8

$

$

Not available

33

Cub Cadet AF-43858

Rod, Slide Gate

$

$

Not available

34

Cub Cadet AF-43859

Rod, Flow Control

$

$

Not available

35

Cub Cadet AF-23525

Brace, Hitch

$

$

Not available

36

Cub Cadet AF-23695

Brace, Hopper LH

$

$

Currently unavailable

37

Cub Cadet 710-0136

Screw, Hex Cap, 1/4-20 X 1.75 Lg

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 1543-069

Washer, Nylon

$

$

Currently unavailable

40

Cub Cadet 736-0173

Washer, Flat, .281 X .73 X .063

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet AF-23530

Metering Gage, Flow Control

$

$

Not available

42

Cub Cadet AF-62473

Mounting Assy, Flow Control

$

$

Not available

43

Cub Cadet AF-62474

Gear Assy

$116.99

$

Usually ships in 3-6 days

0

44

Cub Cadet AF-62477

Arm Assy, Flow Control

$

$

Currently unavailable

45

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, Qty 12

0

46

Cub Cadet AF-43000

Spring, Extension

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet AF-43848

Grip, Flow Control Arm

$2.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 714-3001

Pin, Cotter, 1/8 Dia X 1.5 Lg
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0316

Washer, Flat, .781 X 1.59 X .065

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X 1/2 Lg GR 5

$4.99

$

In Stock, Qty 11

0

51

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 X 2.0 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

54

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1-3/4 Lg GR 5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

55

Cub Cadet AF-43849

Knob, Plastic, 1/4-20

$

$

Not available

56

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 736-0264

Washer, Flat, .344 X .62 X .063

$6.99

$

In Stock, only 2 left!

0

58

Cub Cadet AF-23555

Support, Shaft

$

$

Not available

59

Cub Cadet AF-23533

Plate, Closure

$18.99

$

Usually ships in 3-6 days

0

60

Cub Cadet AF-43962

Cover, Vinyl Hopper (Optional)

$

$

Not available
