43782 - Gravely Lawn Tractor, 20hp, With Hydraulic Lift NUMBER TWO SHAFT - REVERSE CLUTCH Parts Diagram

Lawn Tractor, 20hp, With Hydraulic Lift

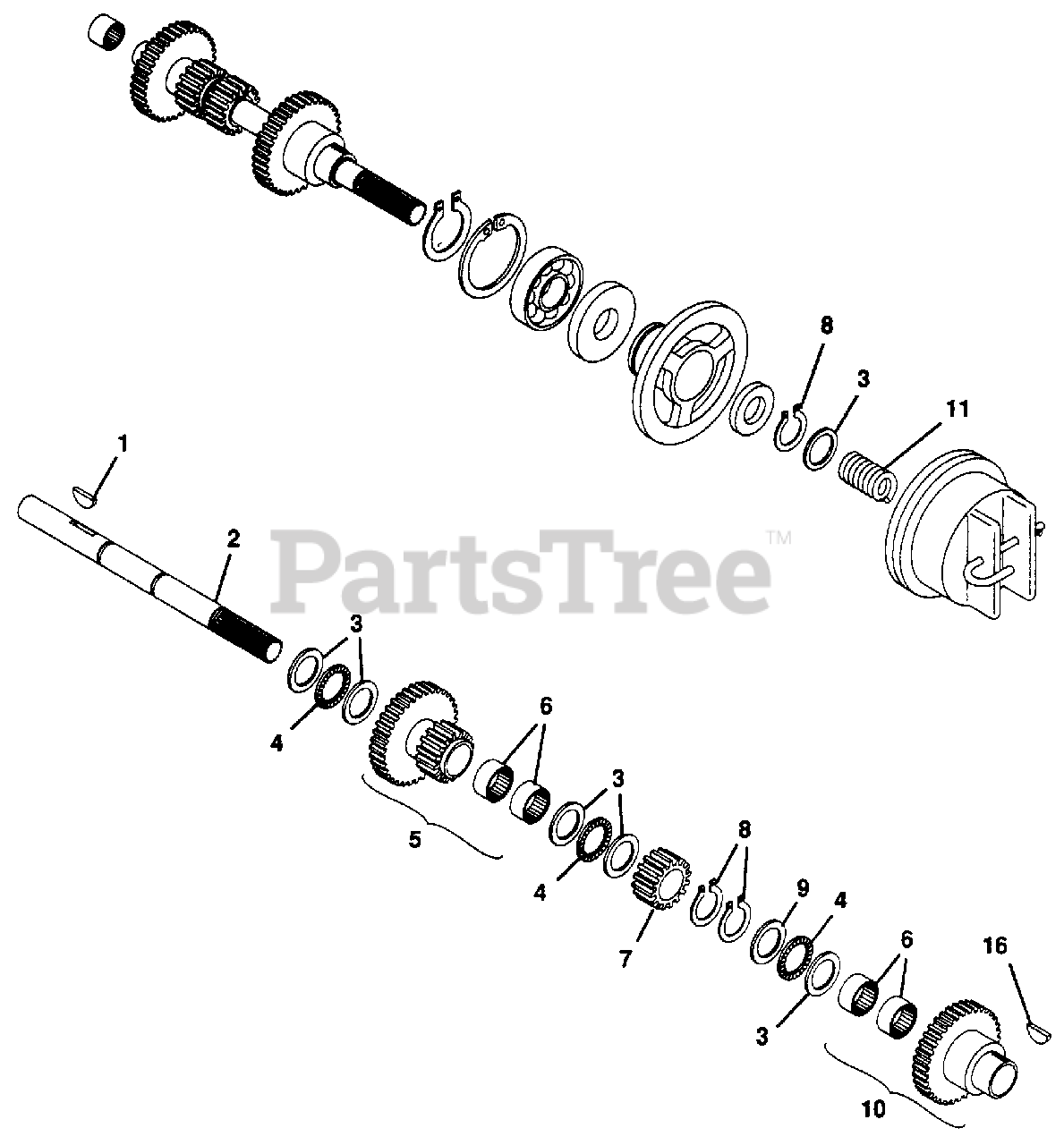

NUMBER TWO SHAFT - REVERSE CLUTCH Parts Diagram

  • Title
1

Gravely 431787

KEY, WOODRUFF .188X.625 HRD #61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

2

Gravely 034730

SHAFT, SPLINED REV CLUTCH
(Superseded to 08736400)

$

$

Not available

3

Gravely 011223

RACE, BRG THRUST .752X1.240X.030
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

4

Gravely 006741

BRG, NEEDLE THRUST .752X1.24X.078
(Superseded to 05410400)

$12.99

$

In Stock, Qty 7

0

5

Gravely 018020

GEAR, IDLER ASSEMBLY
(Superseded to 08705800)

$216.99

$

Usually ships in 4-12 days

0

6

Gravely 017949

BEARING, NEEDLE .75X1X.50
(Superseded to 05420400)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 018003

GEAR, 10 DP 16 TEETH X .750 STD.
(Superseded to 08705100)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 011135

RING, RETAINING .750 SHAFT
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

9

Gravely 006742

RACE, .060 BEARING THRUST
(Superseded to 06431900)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 017947

ASSEMBLY, REVERSE GEAR AND BRG
(Superseded to 08703000)

$

$

Not available

11

Gravely 020444

SPRING, COMP. 1.0X.80X36 LB/IN
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0
