43777 - Gravely Lawn Tractor, 12hp, Without Hydraulic Lift ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor, 12hp, Without Hydraulic Lift

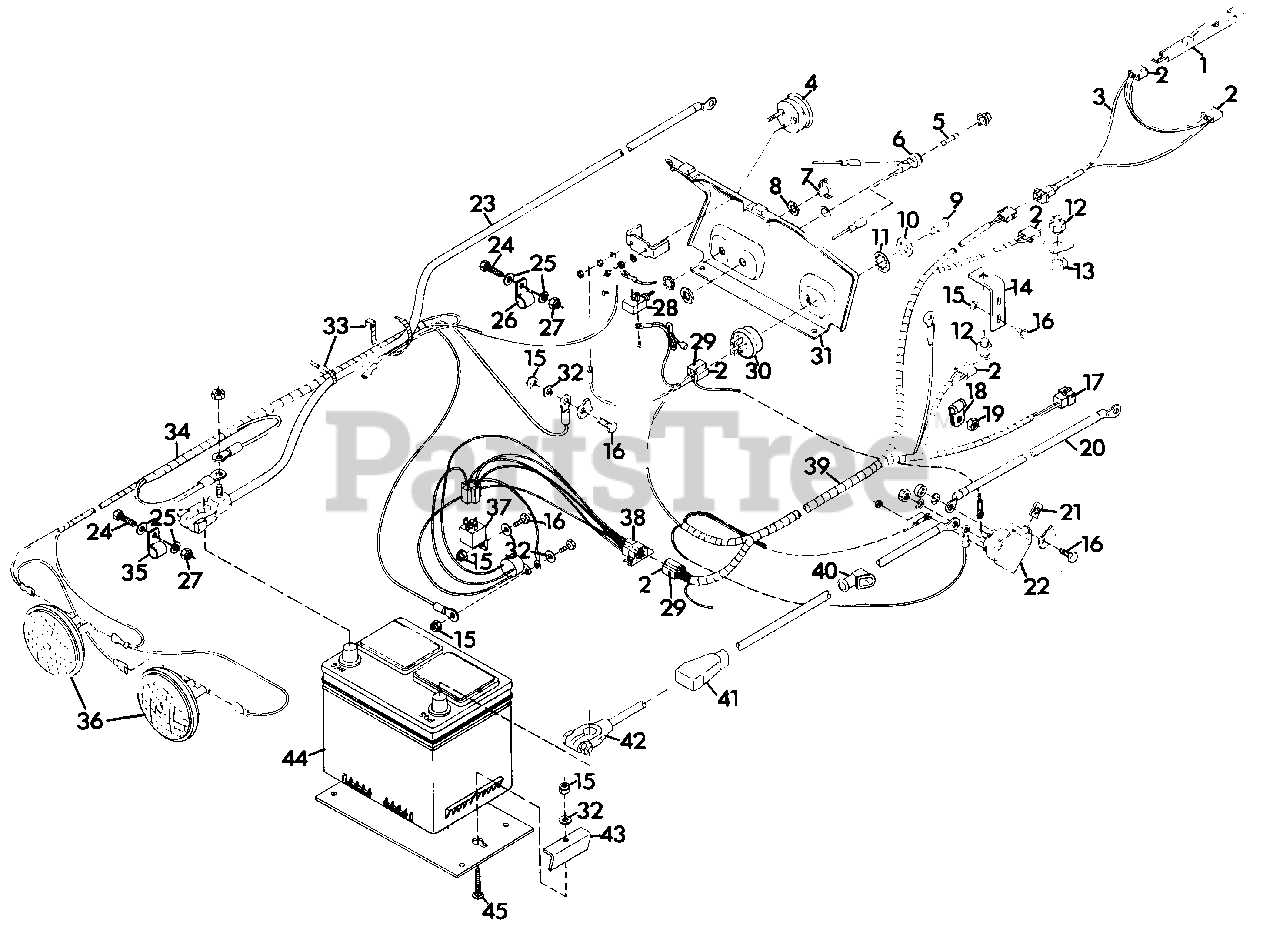

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Gravely 035062

SWITCH, SEAT
(Superseded to 08538400)

$

$

Not available

2

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

3

Gravely 040455

HARNESS, WIRING SEAT SWITCH
(Superseded to 20670200)

$

$

Not available

4

Gravely 021848

GAUGE, AMMETER
(Superseded to 03490800)

$

$

Not available

5

Gravely 014893

FUSE, 30 AMP AGC 30
(Superseded to 20176100)

$

$

Not available

6

Gravely 021416

FUSE, PANEL
(Superseded to 08902600)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 038186

KNOB, LIGHT SWITCH
(Superseded to 07516400)

$

$

Not available

8

Gravely 018587

NUT, SPECIAL LIGHT SWITCH
(Superseded to 06520800)

$

$

Not available

9

Gravely 018570

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

10

Gravely 019666

NUT, JAM 9/16-24
(Superseded to 20287700)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 019667

WASHER, LOCK 9/16 INT. TOOTH
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 020916

SWITCH, INTERLOCK
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

13

Gravely 107354

NUT, STAMPED 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 020660

BRACKET, SWITCH
(Superseded to 08720300)

$

$

Not available

15

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 042289

CONNECTOR
(Superseded to 20709401)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 027122

CLAMP
(Superseded to 06907200)

$

$

Not available

19

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 040135

CABLE, STARTER
(Superseded to 08746300)

$

$

Not available

21

Gravely 011676

NUT, SPEED 1/4-20
(Superseded to 07016800)

$

$

Not available

22

Gravely 035634

SWITCH, MAGNETIC
(Superseded to 20626200)

$68.99

$

Usually ships in 4-12 days

0

23

Gravely 039871

CABLE, NEGATIVE BATTERY
(Superseded to 08745800)

$

$

Not available

24

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 041788

CLAMP, NYLON
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

27

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 011337

SWITCH, LIGHT
(Superseded to 03490700)

$

$

Not available

29

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

30

Gravely 019223

SWITCH, IGNITION
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

31

Gravely 043799

PANEL, INSTRUMENT
(Superseded to 58701800)

$

$

Not available

32

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

34

Gravely 040456

HARNESS, WIRING GROUND AND LIGHT
(Superseded to 08748601)

$71.99

$

In Stock, only 1 left!

0

35

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

36

Gravely 039069

HEADLIGHT
(Superseded to 03114900)

$20.99

$

Usually ships in 4-12 days

0

37

Gravely 040216

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

38

Gravely 040313

MODULE, TIME DELAY
(Superseded to 59000300)

$137.99

$

Usually ships in 4-12 days

0

39

Gravely 041865

HARNESS, WIRING
(Superseded to 20703501)

$193.99

$

Usually ships in 4-12 days

0

40

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

41

Gravely 034466

COVER, BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

42

Gravely 039861

CABLE, BATTERY TO MAGNETIC SWITCH
(Superseded to 08745500)

$

$

Not available

43

Gravely 037742

CLAMP
(Superseded to 08539500)

$22.99

$

In Stock, only 1 left!

0

44

Gravely 042597

BATTERY, 12 VOLT

$

$

Not available

45

Gravely 126342

BOLT, 1/4-20X1.75 RD HD SQ NK
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0
