437447-0205-E2 - Briggs & Stratton Horizontal Engine Rocker Cover, Cylinder Head, Ignition Parts Diagram

Horizontal Engine

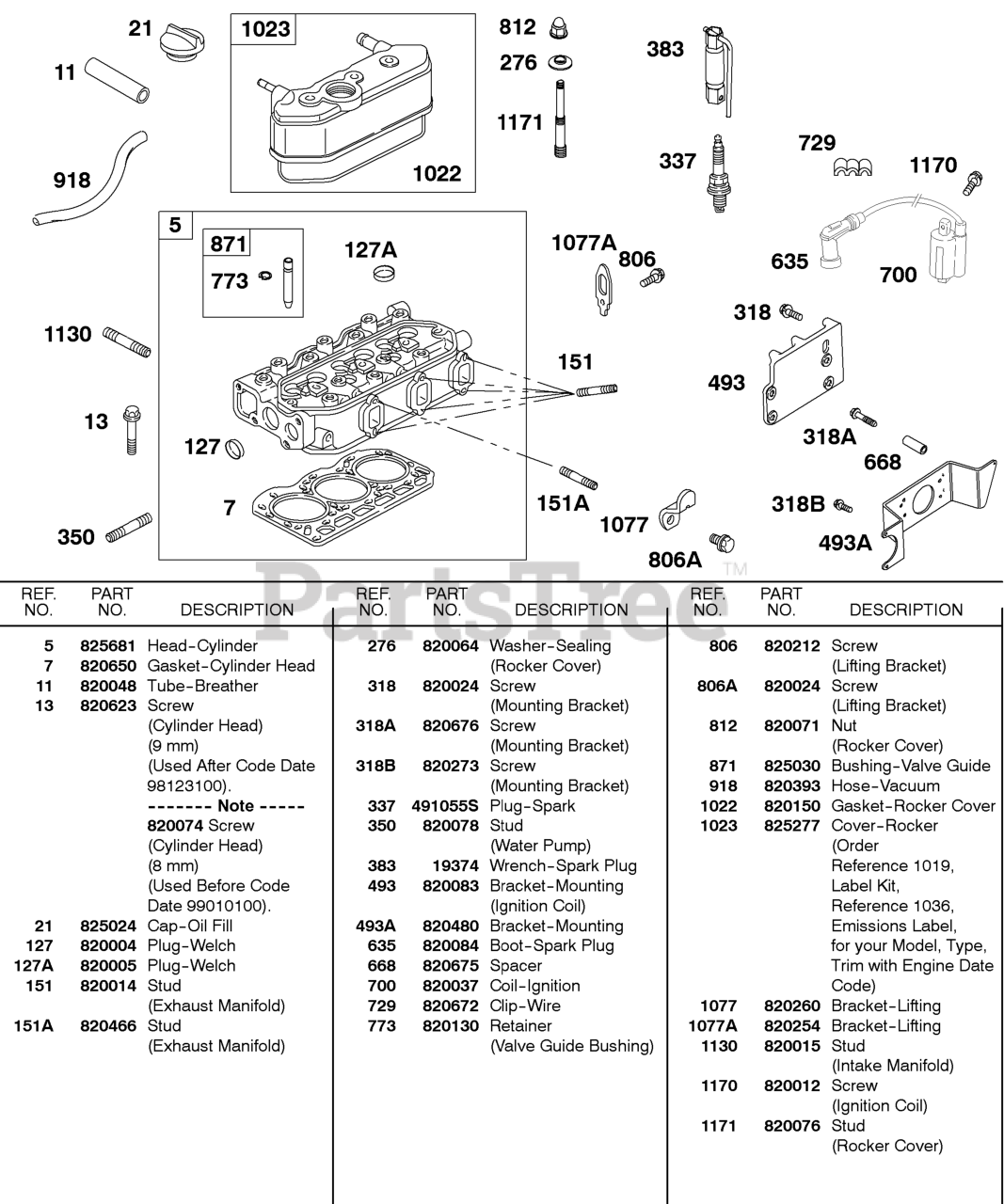

Rocker Cover, Cylinder Head, Ignition Parts Diagram

  • Title

5

Briggs & Stratton 825681

Head-Cylinder
(Superseded to 825781)

$

$

Not available

7

Briggs & Stratton 820650

Gasket-Cylinder Head

$139.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 820048

Tube-Breather

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 820623

Screw

Note: (Cylinder Head) (9 mm) Used After Code Date 98123100

$9.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 820074

Screw

Note: (Cylinder Head) (8 mm) Used Before Code Date 99010100

$7.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 825024

Cap-Oil Fill

$25.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 820004

Plug-Welch

$7.49

$

In Stock, only 2 left!

0

127A

Briggs & Stratton 820005

Plug-Welch

$6.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 820014

Stud

Note: (Exhaust Manifold)

$9.99

$

Usually ships in 2-12 days

0

151A

Briggs & Stratton 820466

Stud

Note: (Exhaust Manifold)

$10.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 820064

Washer-Sealing

Note: (Rocker Cover)

$7.99

$

In Stock, only 2 left!

0

318

Briggs & Stratton 820024

Screw

Note: (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

318A

Briggs & Stratton 820676

Screw

Note: (Mounting Bracket)

$4.49

$

Usually ships in 2-12 days

0

318B

Briggs & Stratton 820273

Screw

Note: (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

350

Briggs & Stratton 820078

Stud

Note: (Water Pump)

$6.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19374S

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

493

Briggs & Stratton 820083

Bracket-Mounting

Note: (Ignition Coil)

$41.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 820480

Bracket-Mounting

$55.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 820084

Boot-Spark Plug

$36.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 820675

Spacer

$45.99

$

Usually ships in 2-12 days

0

700

Briggs & Stratton 820037

Coil-Ignition

$97.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 820672

Clip-Wire
(Superseded to 821405)

$4.99

$

Usually ships in 2-12 days

0

773

Briggs & Stratton 820130

Retainer

Note: (Valve Guide Bushing)

$11.99

$

Usually ships in 2-12 days

0

806

Briggs & Stratton 820212

Screw

Note: (Lifting Bracket)

$3.99

$

Usually ships in 2-12 days

0

806A

Briggs & Stratton 820024

Screw

Note: (Lifting Bracket)

$3.99

$

Usually ships in 2-12 days

0

812

Briggs & Stratton 820071

Nut

Note: (Rocker Cover)

$3.99

$

In Stock, only 3 left!

0

871

Briggs & Stratton 825030

Bushing-Valve Guide

$100.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 820393

Hose-Vacuum

$

$

Not available

1022

Briggs & Stratton 820150

Gasket-Rocker Cover

$37.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 825277

Cover-Rocker

Note: (Order Reference 1019, Label Kit, and Reference 1036, Emissions Label,for your Model, Type, Trim with Engine Date Code)

$186.99

$

Usually ships in 2-12 days

0

1077

Briggs & Stratton 820260

Bracket-Lifting

$9.99

$

Usually ships in 2-12 days

0

1077A

Briggs & Stratton 820254

Bracket-Lifting

$10.99

$

Usually ships in 2-12 days

0

1130

Briggs & Stratton 820015

Stud

Note: (Intake Manifold)

$5.99

$

Usually ships in 2-12 days

0

1170

Briggs & Stratton 820012

Screw

Note: (Ignition Coil)

$3.99

$

Usually ships in 2-12 days

0

1171

Briggs & Stratton 820076

Stud

Note: (Rocker Cover)

$12.99

$

In Stock, only 3 left!

0
