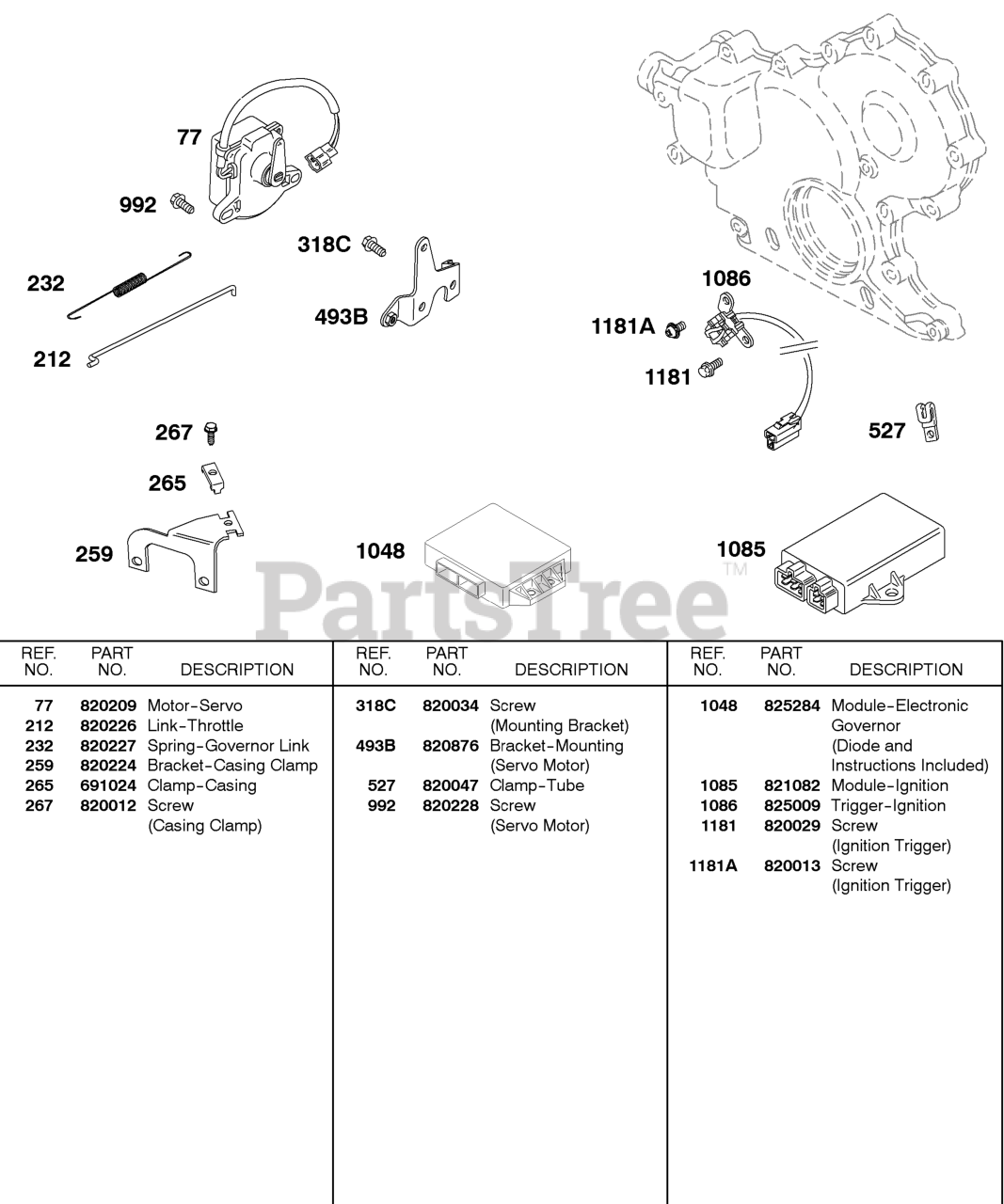

437447-0205-E2 - Briggs & Stratton Horizontal Engine Ignition Module, Trigger Module, Electronic Module Parts Diagram

Horizontal Engine

Ignition Module, Trigger Module, Electronic Module Parts Diagram

  • Title

77

Briggs & Stratton 820209

Motor-Servo

$604.99

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 820226

Link-Throttle

$14.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 820227

Spring-Governor Link

$11.99

$

Usually ships in 2-12 days

0

259

Briggs & Stratton 820224

Bracket-Casing Clamp

$34.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 820012

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

318C

Briggs & Stratton 820034

Screw
(Superseded to 821233)

Note: (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

493B

Briggs & Stratton 820876

Bracket-Mounting

Note: (Servo Motor)

$55.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 820047

Clamp-Tube

$4.49

$

Usually ships in 2-12 days

0

992

Briggs & Stratton 820228

Screw
(Superseded to 820880)

Note: (Servo Motor)

$3.49

$

Usually ships in 2-12 days

0

1048

Briggs & Stratton 825284

Module-Electronic Governor

Note: (Diode and Instructions Included)

$2420.99

$

Usually ships in 2-12 days

0

1085

Briggs & Stratton 821082

Module-Ignition

$677.99

$

Usually ships in 2-12 days

0

1086

Briggs & Stratton 825009

Trigger-Ignition

$128.99

$

Usually ships in 2-12 days

0

1181

Briggs & Stratton 820029

Screw

Note: (Ignition Trigger)

$3.99

$

Usually ships in 2-12 days

0

1181A

Briggs & Stratton 820013

Screw

Note: (Ignition Trigger)

$5.99

$

Usually ships in 2-12 days

0
