435 X AWD - Husqvarna Automower Robotic Lawn Mower (Original) ACCESSORIES Parts Diagram

Automower Robotic Lawn Mower

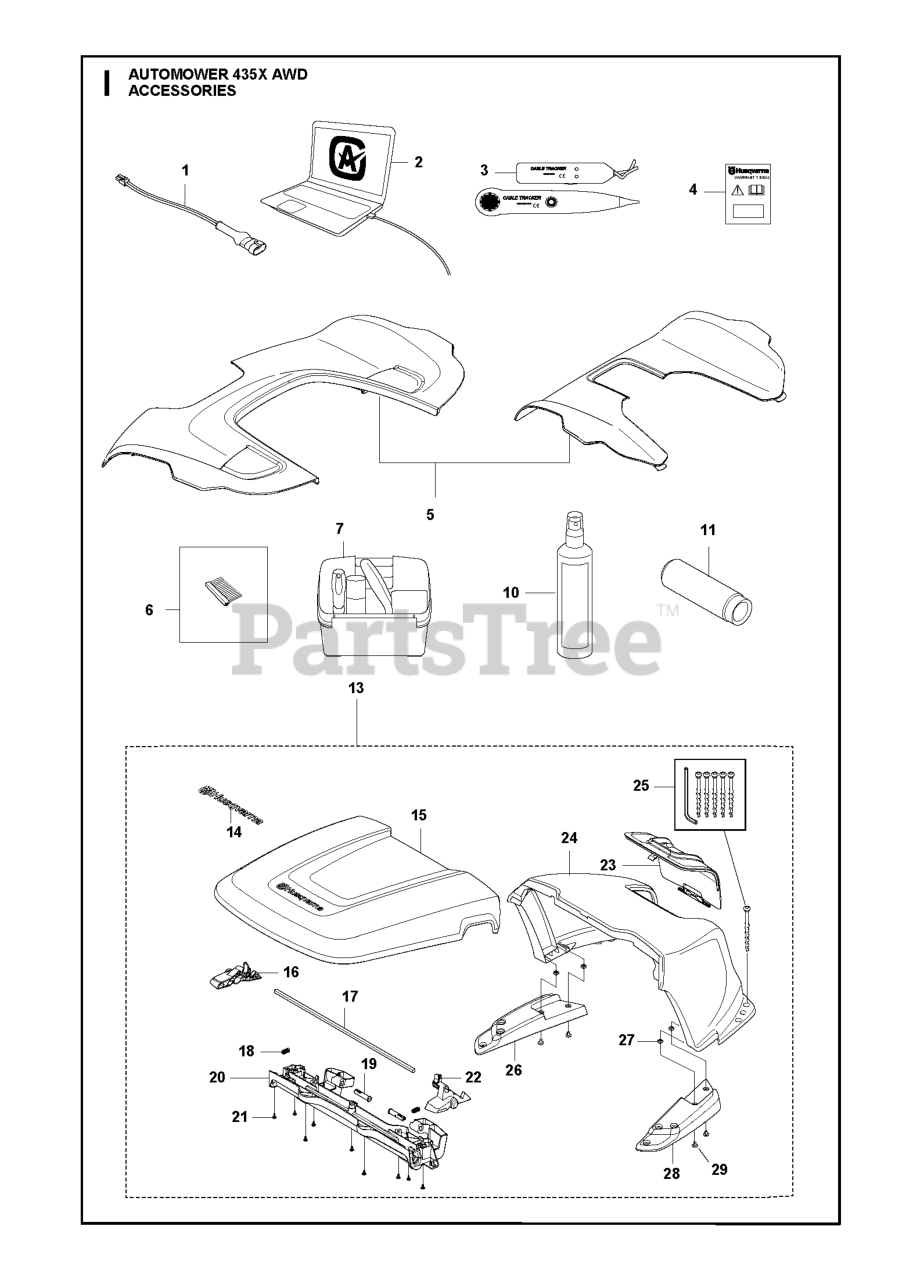

ACCESSORIES Parts Diagram

  • Title

1

Husqvarna 588202601

CABLE ASSY QUICK CHARGER

Note: Cable Quick Charger

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 577606801

TEST EQUIPMENT

Note: Interruption Detector

$344.99

$

Usually ships in 3-10 days

0

4

Husqvarna 580689502

LABEL WARRANTY SEAL DEALER
(Superseded to 584902201)

Note: Warranty seal

$5.99

$

In Stock, Qty 10

0

5

Husqvarna 596300001

NEEDS DESCRIPTION

Note: Top Cover Grey

$

$

Not available

5

Husqvarna 596300002

NEEDS DESCRIPTION

Note: Top Cover White

$

$

Not available

5

Husqvarna 596300003

NEEDS DESCRIPTION

Note: Top Cover Orange

$

$

Not available

6

Husqvarna 505132803

BRUSH WITH CARTON

Note: 6 pcs

$

$

Not available

7

Husqvarna 590855101

CLEANING AND MAITENANCE KIT AM

Note: Maintenance and Cleaning Kit

$

$

Not available

9

Husqvarna 591203601

WIRING ASSY BATTERY CABLE

Note: Battery Cable Robotic Mower L:160mm

$17.99

$

In Stock, only 1 left!

0

10

Husqvarna 593967901

NEEDS DESCRIPTION

Note: Care and Shine 200 ml

$

$

Not available

11

Husqvarna 502519401

FLYWHEEL KNOCKER-FINE THREAD

Note: Tool for spliting chassi

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 597635301

NEEDS DESCRIPTION

Note: House KIT

$

$

Currently unavailable

14

Husqvarna 577062001

DECAL

Note: DECAL

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 598465501

NEEDS DESCRIPTION

Note: COVER

$227.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585324002

HANDLE RELEASE LEFT

Note: Handle Left

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585324101

ROD

Note: Steel Rod

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 580511401

SPRING SPRING CAP

Note: Spring

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 585341501

HINGE PIN

Note: Hinge Pin

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 585341601

BEAM

Note: Beam

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

22

Husqvarna 585324001

HANDLE RELEASE RIGHT

Note: Handle Right

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 585323601

HATCH

Note: Hatch

$

$

Not available

24

Husqvarna 597635801

NEEDS DESCRIPTION

Note: Cover Base

$102.99

$

Usually ships in 0 days

0

25

Husqvarna 597435801

NEEDS DESCRIPTION

Note: Screw Kit

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 585323802

SUPPORT BASE LEFT

Note: Support Base Left

$17.99

$

Usually ships in 3-10 days

0

27

Husqvarna 503226601

NUT

Note: Square Nut

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 585323801

SUPPORT BASE RIGHT

Note: Support Base Left

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 535129303

SCREW IHPANM M6X25 4.6 ZP-BC

Note: Screw

$4.99

$

Usually ships in 3-10 days

0
