435 - Husqvarna Chainsaw (SN: 20102300001 - 20111800000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

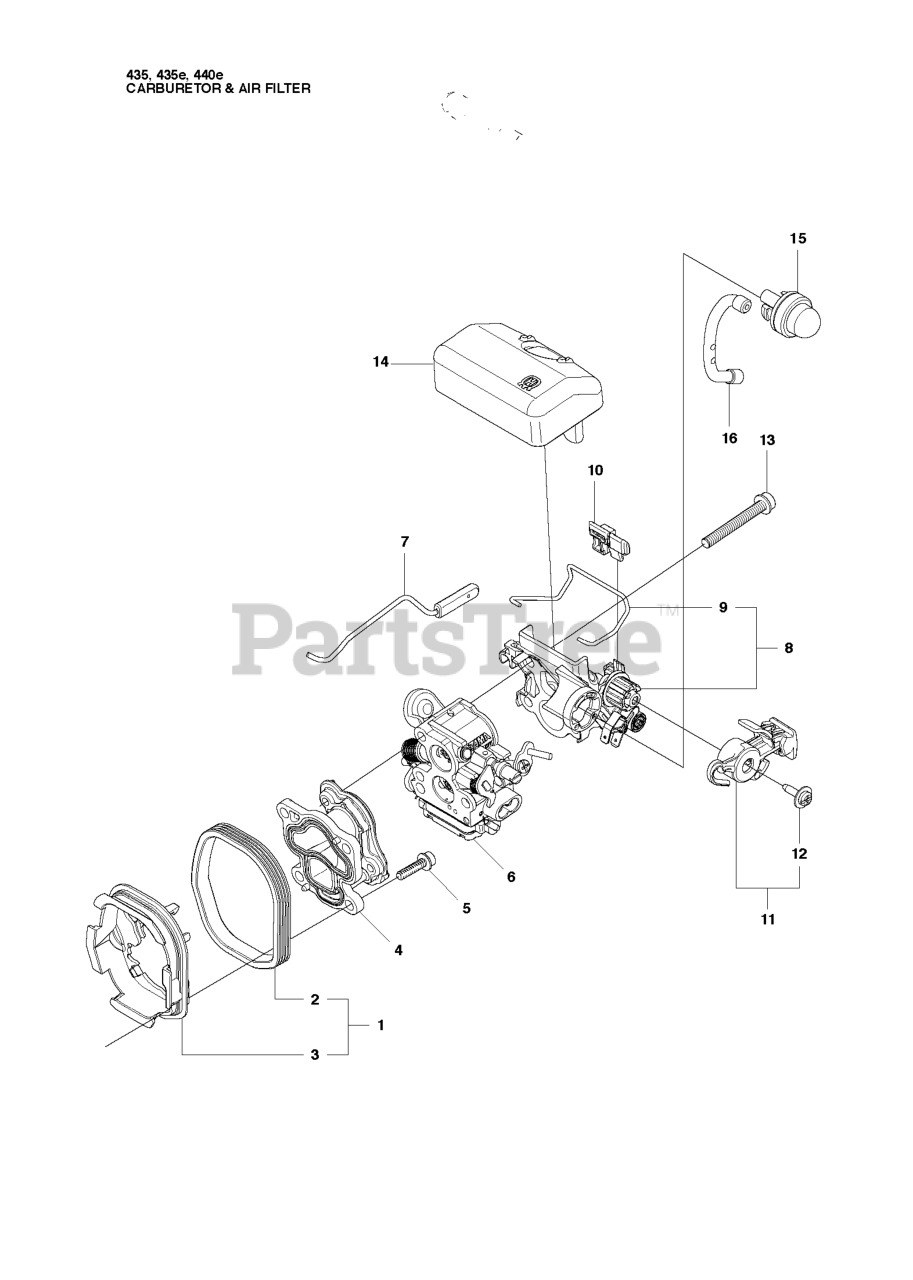

CARBURETOR & AIR FILTER Parts Diagram

  • Title

7

Husqvarna 544284401

THROTTLE ROD ASSY

$6.49

$

In Stock, only 3 left!

0

14

Husqvarna 544805402

AIR FILTER

Note: 44 MICRON

$

$

Not available

5

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 504712501

GUIDE

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 504724501

INSULATION WALL
(Superseded to 504724701)

$6.49

$

In Stock, Qty 9

0

1

Husqvarna 504724701

INSULATION WALL

$6.49

$

In Stock, Qty 9

0

15

Husqvarna 503936601

AIR PURGE BUBBLE

$21.99

$

Usually ships in 3-10 days

0

3

Husqvarna 504724401

INSULATION WALL
(Superseded to 504724701)

$6.49

$

In Stock, Qty 9

0

12

Husqvarna 544976601

SCREW

$3.99

$

In Stock, only 1 left!

0

9

Husqvarna 544392601

SHACKLE

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 504201201

INLET PIPE
(Superseded to 504201202)

$51.99

$

In Stock, only 1 left!

0

6

Husqvarna 506450501

CARBURETOR
(Superseded to 531215501)

$45.99

$

In Stock, Qty 6

0

8

Husqvarna 544976401

FILTER HOLDER
(Superseded to 544976402)

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503200240

SCREW

$6.49

$

In Stock, only 2 left!

0

14

Husqvarna 544805403

AIR FILTER

Note: FELT

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544401901

HOSE

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 544844302

CONTROL

$7.99

$

In Stock, only 1 left!

0
