435 - Husqvarna Chainsaw (SN: 20090400001 - 20102300000) STARTER Parts Diagram

Chainsaw

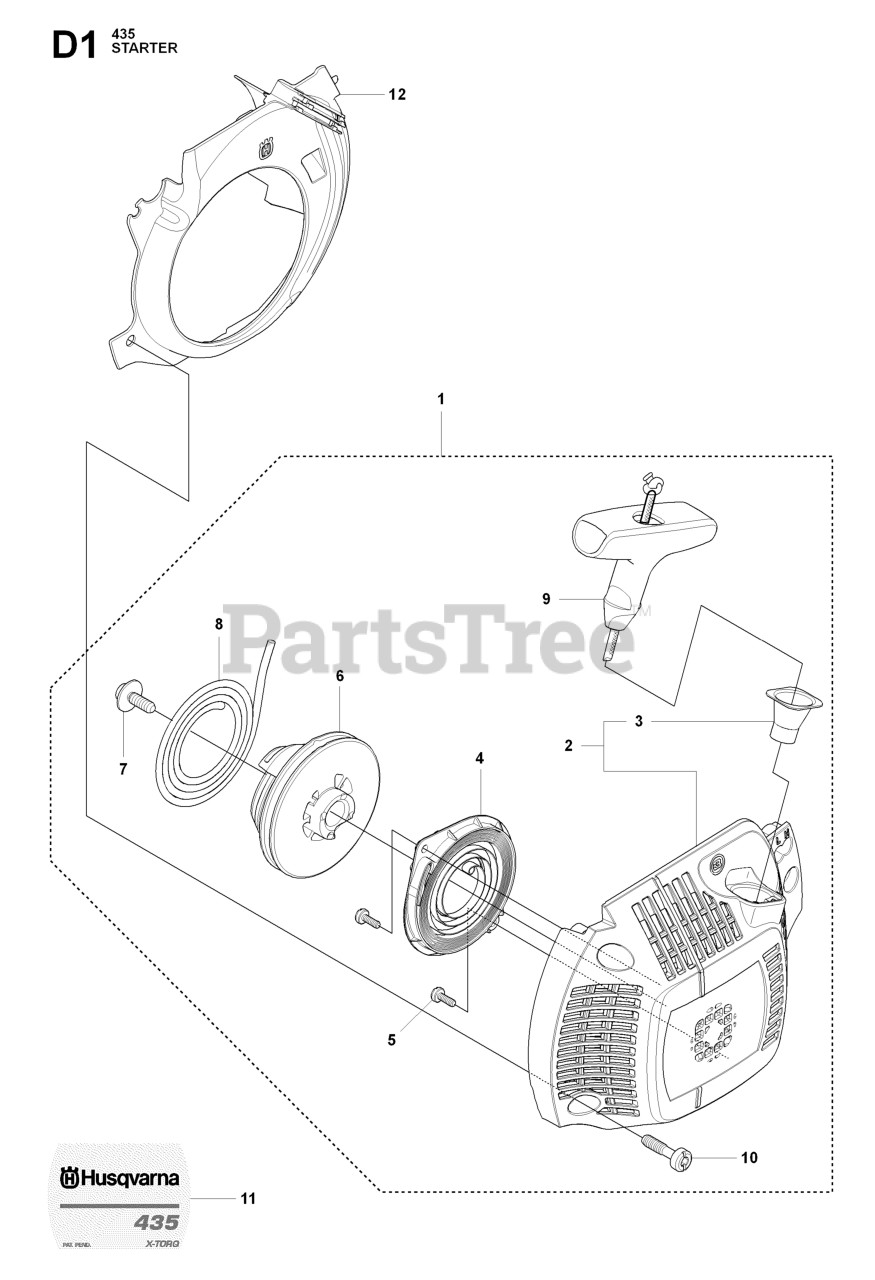

STARTER Parts Diagram

  • Title

6

Husqvarna 504597101

STARTER PULLEY
(Superseded to 579427901)

Note: Starter pulley

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 505305125

STARTER ROPE

Note: Starter cord

$9.49

$

In Stock, Qty 6

0

10

Husqvarna 503217321

SCREW

Note: Screw CIHSCTO

$4.99

$

In Stock, only 4 left!

0

7

Husqvarna 503217716

SCREW

Note: Screw IHSCT

$6.49

$

In Stock, Qty 8

0

9

Husqvarna 537232501

HANDLE

Note: Starter hand

$11.99

$

In Stock, only 1 left!

0

3

Husqvarna 537283201

SLEEVE

Note: Reinforcement sleeve

$12.99

$

In Stock, only 2 left!

0

12

Husqvarna 544197101

%COOLING AIR CONDUCTOR
(Superseded to 544197102)

Note: Cooling air conductor

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 540057501

SPRING CASSETTE ASSY
(Superseded to 540057502)

Note: Spring cassette assy

$24.99

$

In Stock, Qty 7

0

1

Husqvarna 504597002

STARTER ASSY

Note: Starter assy, std

$31.99

$

In Stock, only 3 left!

0

2

Husqvarna 504596901

HOUSING STARTER

Note: Starter, Std

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503212810

SCREW

Note: Screw CCRPANT

$3.99

$

In Stock, Qty 11

0

11

Husqvarna 504546801

LABEL 435

Note: Label, Starter

$3.49

$

In Stock, only 2 left!

0
