435 - Husqvarna Chainsaw (2011-05) CYLINDER PISTON Parts Diagram

Chainsaw

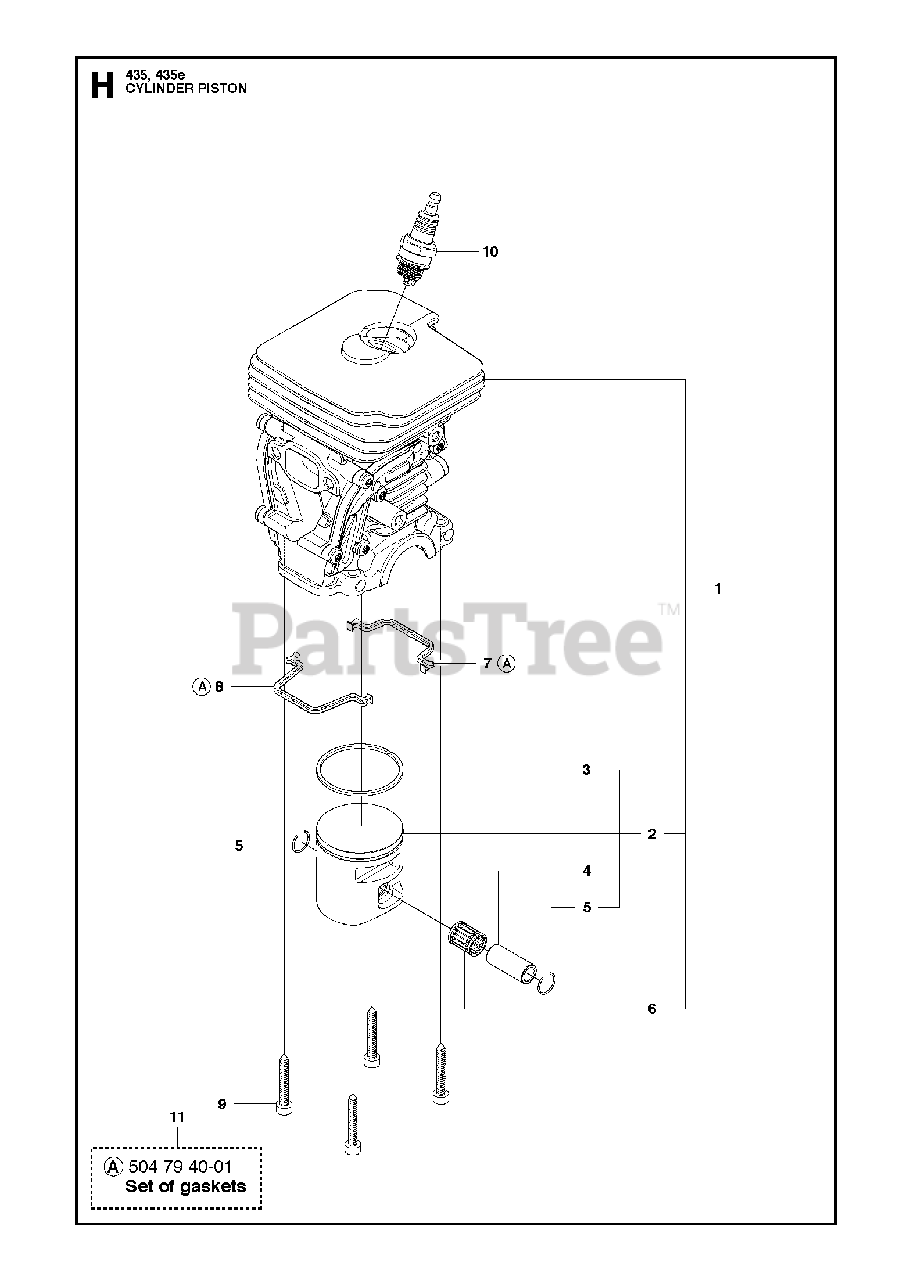

CYLINDER PISTON Parts Diagram

  • Title
1

Husqvarna 504735103

CYLINDER
(Superseded to 504735101)

$

$

Not available

2

Husqvarna 502625002

PISTON ASSY
(Superseded to 502625007)

Note: . 1

$100.99

$

In Stock, only 1 left!

0

3

Husqvarna 544405901

PISTON RING

Note: . 2

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544406001

PISTON PIN

Note: . 2

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537399901

CIRCLIP
(Superseded to 737441000)

Note: . 2

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 503414101

SUPPORT BUSHING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544396001

GASKET

Note: . 11

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 544395901

GASKET

Note: . 11

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

10

Husqvarna 503235111

BPMR7A NGK SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 504794001

GASKET SET

$7.99

$

In Stock, only 1 left!

0
