435 - Husqvarna Chainsaw (2009-02) Starter Parts Diagram

Chainsaw

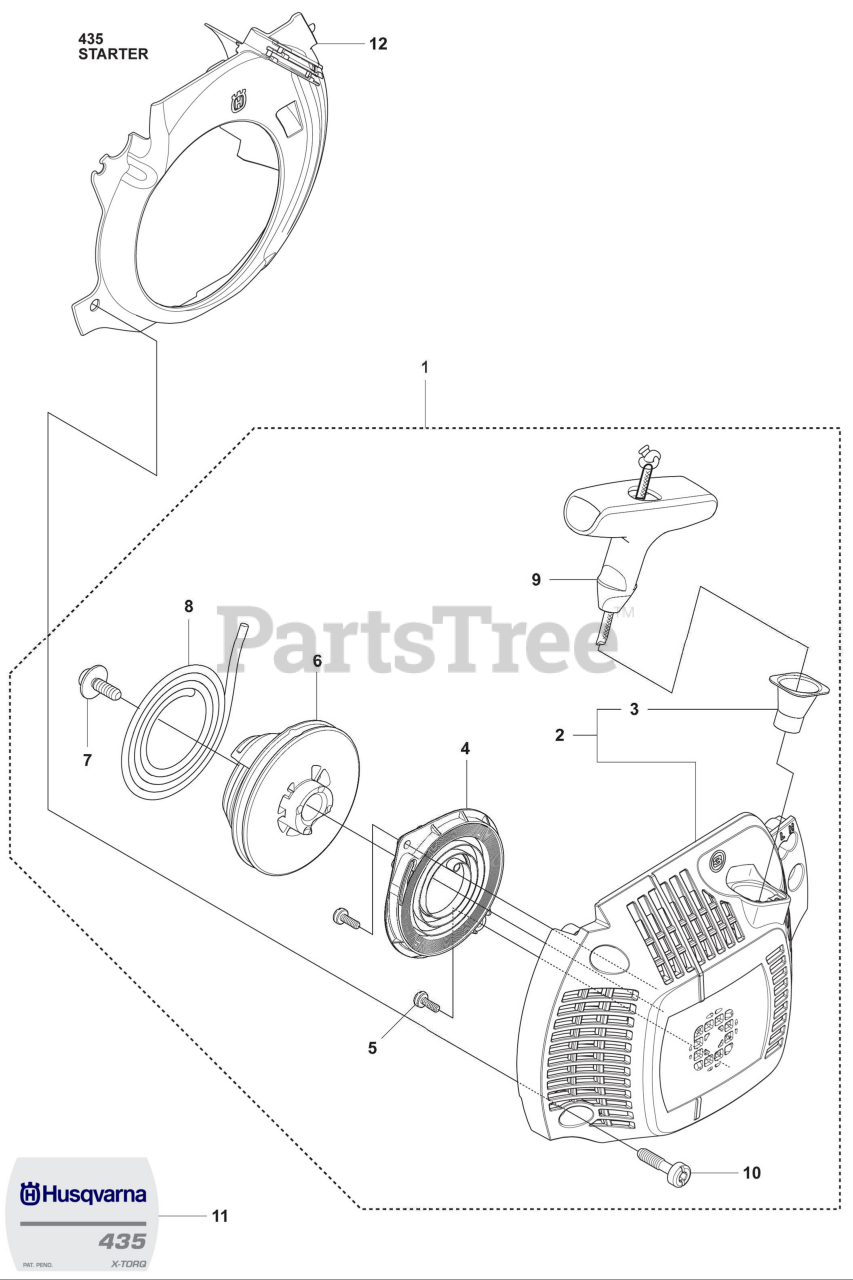

Starter Parts Diagram

  • Title

1

Husqvarna 504597002

Recoil Starter Assembly

Note: Starter assy, std

$31.99

$

In Stock, only 3 left!

0

2

Husqvarna 504596901

Starter Housing

Note: Starter, Std

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537283201

Sleeve

Note: Reinforcement sleeve

$12.99

$

In Stock, only 2 left!

0

4

Husqvarna 540057501

Cassette Assembly Spring
(Superseded to 540057502)

Note: Spring cassette assy

$24.99

$

In Stock, Qty 7

0

5

Husqvarna 503212810

Screw

Note: Screw CCRPANT

$3.99

$

In Stock, Qty 11

0

6

Husqvarna 504597101

Starter Pulley
(Superseded to 579427901)

Note: Starter pulley

$5.99

$

In Stock, only 3 left!

0

7

Husqvarna 503217716

Screw

Note: Screw IHSCT

$6.49

$

In Stock, Qty 8

0

8

Husqvarna 505305125

Starter Rope

Note: Starter cord

$9.49

$

In Stock, Qty 6

0

9

Husqvarna 537232501

Handle

Note: Starter handle

$11.99

$

In Stock, only 1 left!

0

10

Husqvarna 503217321

Recoil Starter Screw

Note: Screw CIHSCTO

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 504546801

Label

Note: Label, Starter

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 544197101

Air Cooling Conductor
(Superseded to 544197102)

Note: Cooling air conductor

$6.99

$

In Stock, only 1 left!

0
