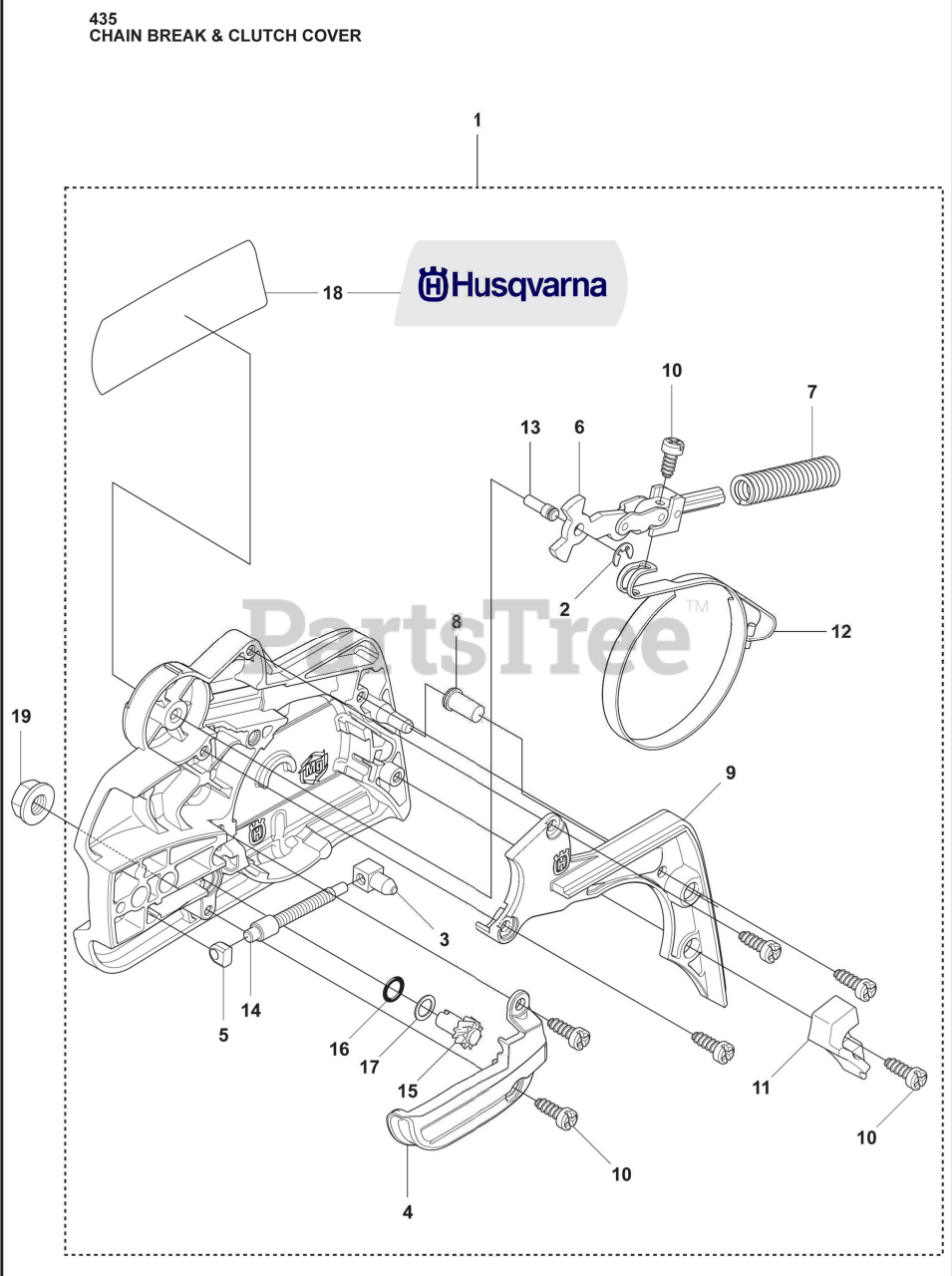

435 - Husqvarna Chainsaw (2009-02) Chain Break & Clutch Cover Parts Diagram

Chainsaw

Chain Break & Clutch Cover Parts Diagram

  • Title

1

Husqvarna 501388201

Clutch Cover Assembly
(Superseded to 501388203)

Note: Clutch cover assy

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 735310820

Bar Retainer

Note: E-clip

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 537286601

Pawl

Note: Pawl

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540063301

Chain Guide

Note: Chain guide

$8.99

$

In Stock, Qty 6

0

5

Husqvarna 537017401

Sleeve

Note: Bearing sleeve

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 503890802

Joint

Note: Knee joint

$40.99

$

In Stock, only 1 left!

0

7

Husqvarna 505892601

Brake Spring

Note: Brake spring

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503855201

Sleeve

Note: Guide bushing

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 544248501

Cover

Note: Cover lid

$13.99

$

In Stock, only 1 left!

0

10

Husqvarna 503217010

Screw

Note: Screw

$4.99

$

In Stock, Qty 12

0

11

Husqvarna 544253101

Wear Protection

Note: Wear protection

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 544306001

Brake Band Assembly

Note: Brake band assy

$10.99

$

In Stock, Qty 9

0

13

Husqvarna 503892901

Pin

Note: Pin

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 537397001

Worm Screw

Note: Worm screw

$18.99

$

In Stock, only 3 left!

0

15

Husqvarna 537079402

Worm Wheel

Note: Worm wheel

$13.99

$

In Stock, only 1 left!

0

16

Husqvarna 740480702

O-Ring

Note: O-ring

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 503230063

Washer

Note: Washer

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 544376801

Label, 400 Series

Note: Label, clutch cover

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 503220001

Flange Hex Nut, M8

Note: Nut

$3.99

$

In Stock, Qty 20+

0
