435 - Husqvarna Chainsaw (2008-05) Fuel Tank Assembly Parts Diagram

Chainsaw

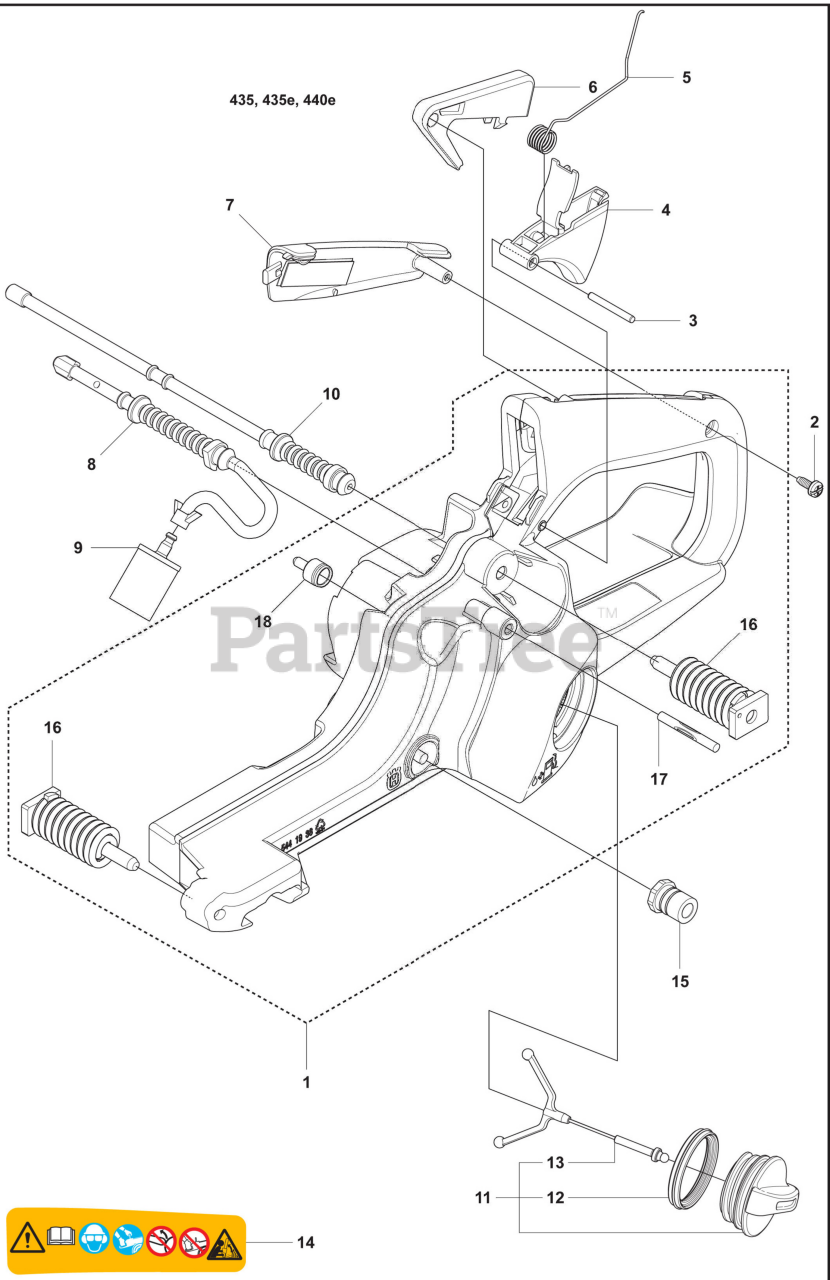

Fuel Tank Assembly Parts Diagram

  • Title

1

Husqvarna 544193801

Tank Fuel, Welded
(Superseded to 544193811)

Note: Fuel tank assy

$51.99

$

In Stock, only 2 left!

0

2

Husqvarna 503212810

Screw

Note: Screw

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 720182520

Pin

Note: Pin

$2.99

$

In Stock, Qty 20+

0

4

Husqvarna 544968501

Throttle Control

Note: Throttle control

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544099901

Spring

Note: Spring

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 544284101

Trigger Lockout Grey
(Superseded to 579239401)

Note: Throttle lockout

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 544284901

Handle Insert

Note: Handle insert

$7.49

$

In Stock, Qty 6

0

8

Husqvarna 544128601

Fuel Hose, RP

Note: Fuel hose

$

$

Not available

9

Husqvarna 503443201

Fuel Filter Kit
(Superseded to 591375401)

Note: Filter mix

$10.99

$

In Stock, Qty 20+

0

10

Husqvarna 544129701

Return Hose
(Superseded to 577535101)

Note: Return hose

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544111201

Fuel Tank Cap Assembly, Grey
(Superseded to 544111203)

Note: Tank cap assy

$6.99

$

In Stock, Qty 15

0

12

Husqvarna 537215001

Sealing Gasket

Note: Sealing

$8.99

$

In Stock, only 2 left!

0

13

Husqvarna 503578901

Holder

Note: Holder

$9.99

$

In Stock, Qty 15

0

14

Husqvarna 544375001

Label

Note: Decal warning

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 501007601

Lateral Support

Note: Lateral support

$7.49

$

In Stock, only 4 left!

0

16

Husqvarna 504795601

Anti-Vibration Element

Note: Antivibration element

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 721126339

Grooved Pin

Note: Grooved pin

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 537359501

Tank Vent Assembly
(Superseded to 501152901)

Note: Fuel tank vent

$17.99

$

In Stock, Qty 5

0
