435 e II - Husqvarna Chainsaw CHAIN BRAKE & CLUTCH COVER Parts Diagram

Chainsaw

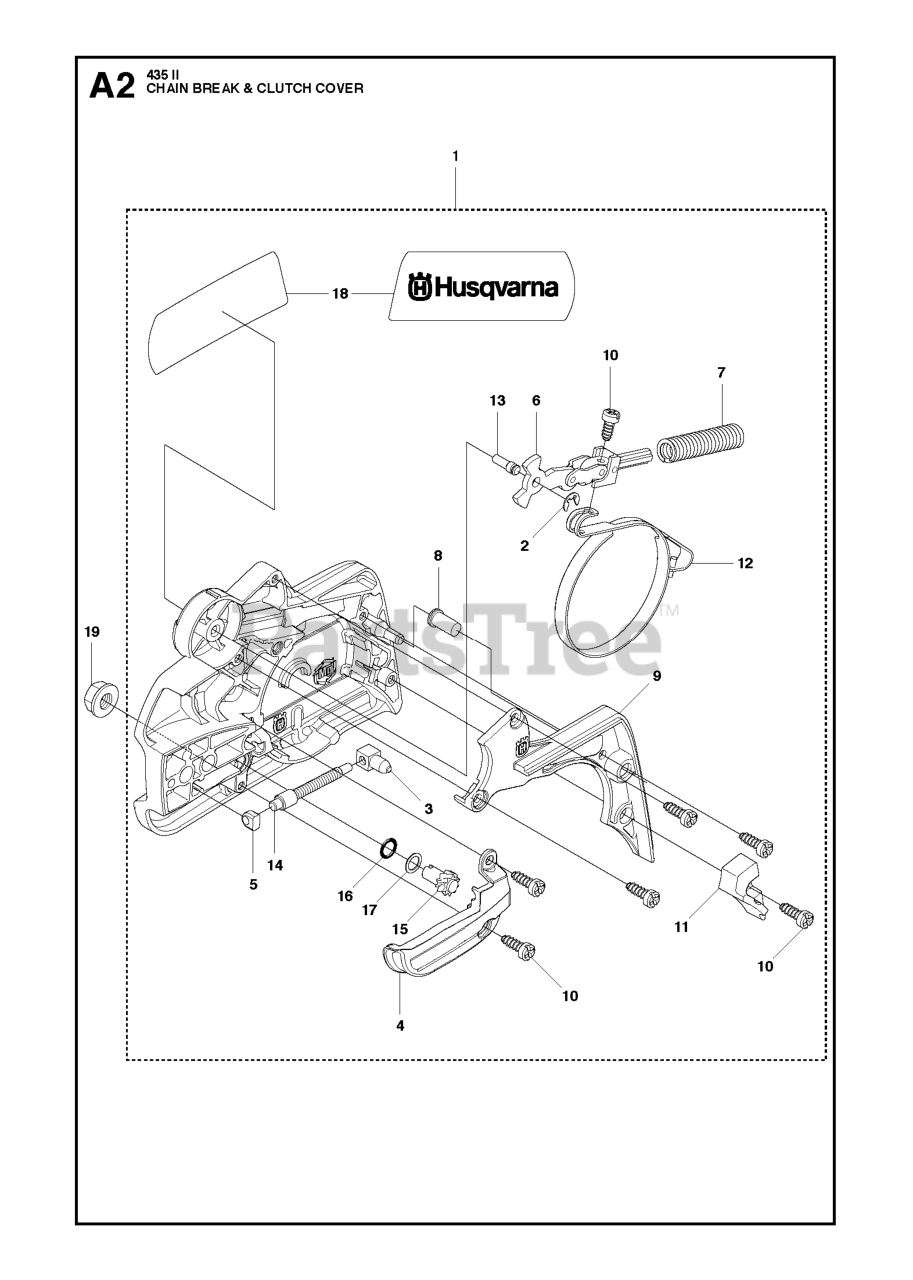

CHAIN BRAKE & CLUTCH COVER Parts Diagram

  • Title

1

Husqvarna 501388201

CLUTCH COVER ASSY
(Superseded to 501388203)

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 537286601

PAWL

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540063301

CHAIN GUIDE

$8.99

$

In Stock, Qty 6

0

5

Husqvarna 537017401

SLEEVE

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 503890802

JOINT

$40.99

$

In Stock, only 1 left!

0

7

Husqvarna 505892601

BRAKE SPRING

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503855201

SLEEVE

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 544248501

COVER

$13.99

$

In Stock, only 1 left!

0

10

Husqvarna 503217010

SCREW

$4.99

$

In Stock, Qty 12

0

11

Husqvarna 544253101

WEAR PROTECTION

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 544306001

BRAKE BAND ASSY

$10.99

$

In Stock, Qty 9

0

13

Husqvarna 503892901

PIN

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 537397001

SCREW

$18.99

$

In Stock, only 3 left!

0

15

Husqvarna 537079402

WORM WHEEL

$13.99

$

In Stock, only 1 left!

0

16

Husqvarna 740480702

O-RING

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 503230063

WASHER

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 544376801

LABEL 400 SERIES

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0
