435 e - Husqvarna Chainsaw (SN: 20090400001 - 20102300000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

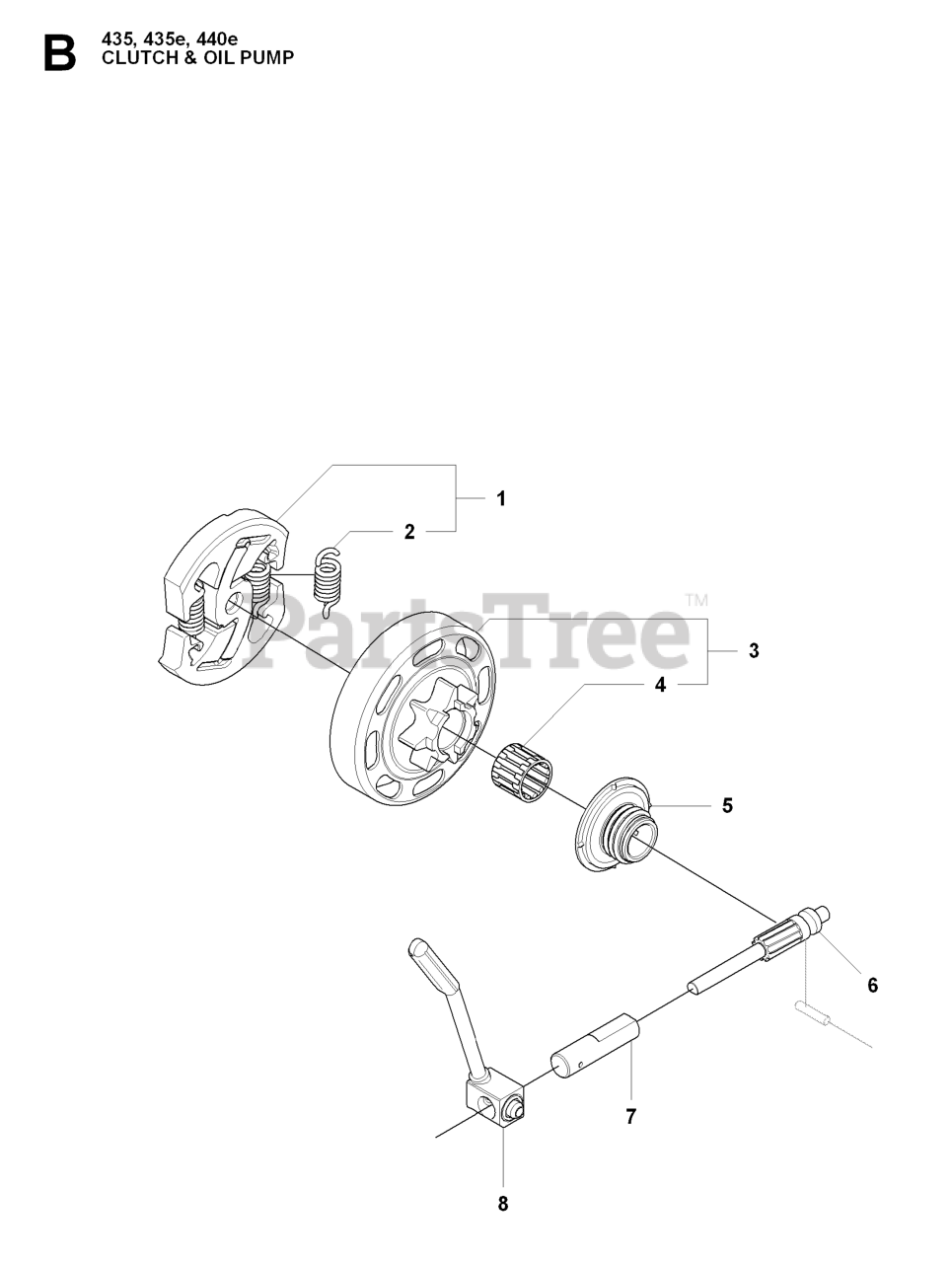

CLUTCH & OIL PUMP Parts Diagram

  • Title

2

Husqvarna 502080301

CLUTCH SPRING

Note: Clutch spring

$8.99

$

In Stock, Qty 5

0

1

Husqvarna 544871201

CLUTCH ASSY
(Superseded to 575568001)

Note: Clutch assy

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 540057901

PISTON PUMP

Note: Pump piston

$17.99

$

In Stock, Qty 20+

0

8

Husqvarna 544084201

OIL HOSE

Note: Oil hose

$22.35

$

Usually ships in 3-10 days

0

7

Husqvarna 537154801

PUMP CYLINDER

Note: Pump cylinder

$11.99

$

In Stock, Qty 9

0

5

Husqvarna 544212401

RP_WORM GEAR
(Superseded to 544212402)

Note: Worm gear

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 505441501

CLUTCH DRUM ASSY

Note: Clutch drum assy

$34.99

$

In Stock, only 4 left!

0

4

Husqvarna 503539201

SUPPORT BUSHING

Note: Support bushing

$24.99

$

In Stock, only 2 left!

0
