435 e - Husqvarna Chainsaw (2009-02) Starter Parts Diagram

Chainsaw

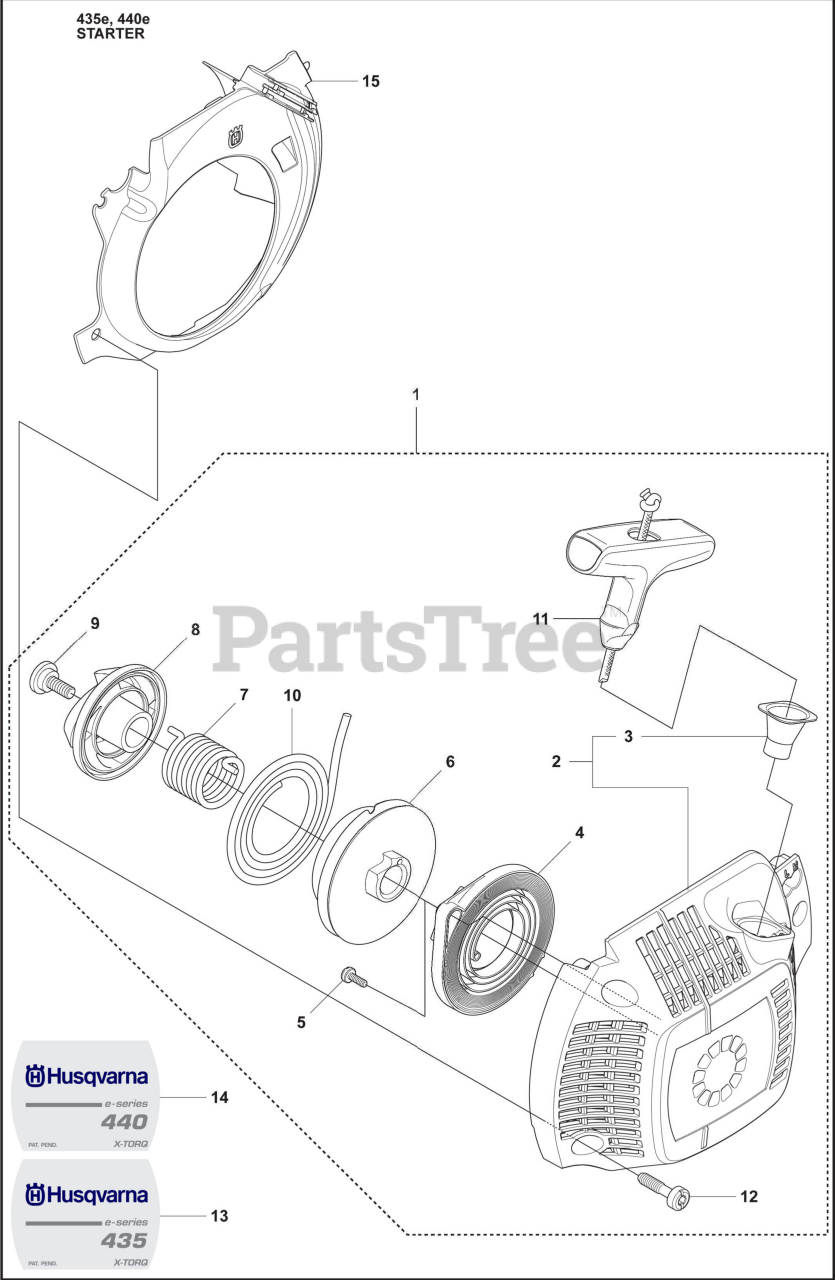

Starter Parts Diagram

  • Title

1

Husqvarna 544287002

Recoil Starter Assembly

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544286901

Starter Housing

Note: Starter housing

$24.99

$

In Stock, only 1 left!

0

3

Husqvarna 537283201

Sleeve

Note: Reinforcement sleeve

$12.99

$

In Stock, only 2 left!

0

4

Husqvarna 540057501

Cassette Assembly Spring
(Superseded to 540057502)

Note: Spring casette assy

$24.99

$

In Stock, Qty 7

0

5

Husqvarna 503212810

Screw

Note: Screw CCRPANT

$3.99

$

In Stock, Qty 11

0

6

Husqvarna 537423201

Starter Pulley

Note: Starter pulley

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 505647301

Spring

Note: Spring

$7.49

$

In Stock, Qty 13

0

8

Husqvarna 537423301

Starter Hub, EPS

Note: Driver

$21.99

$

In Stock, only 1 left!

0

9

Husqvarna 537426601

Shoulder Screw

Note: Screw

$6.49

$

In Stock, Qty 13

0

10

Husqvarna 505305125

Starter Rope

Note: Starter cord

$9.49

$

In Stock, Qty 6

0

11

Husqvarna 537232501

Handle

Note: Starthandtag

$11.99

$

In Stock, only 1 left!

0

12

Husqvarna 503217321

Recoil Starter Screw

Note: Screw CIHSCTO

$4.99

$

In Stock, only 4 left!

0

13

Husqvarna 544463602

Label, 435 Starter

Note: Label, Starter

$4.99

$

In Stock, Qty 5

0

14

Husqvarna 544463601

Label, 440 Starter

Note: Label, Starter

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 544197101

Air Cooling Conductor
(Superseded to 544197102)

Note: Cooling air conductor

$6.99

$

In Stock, only 1 left!

0
