435 e - Husqvarna Chainsaw (2009-02) Cylinder Piston Parts Diagram

Chainsaw

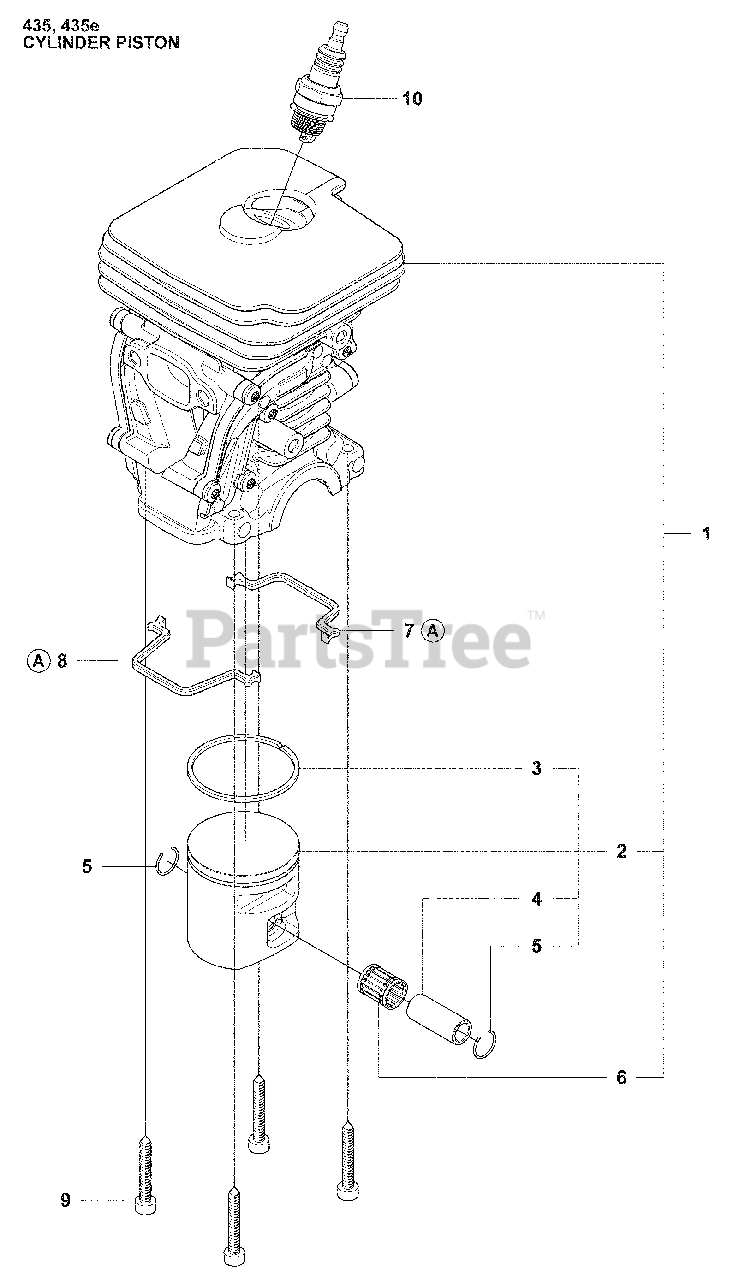

Cylinder Piston Parts Diagram

  • Title

1

Husqvarna 504735102

Cylinder Assembly, 435 and 435E
(Superseded to 504735101)

Note: Cylinder assy

$

$

Not available

2

Husqvarna 502625002

Piston Assembly
(Superseded to 502625007)

Note: Piston assy

$100.99

$

In Stock, only 1 left!

0

3

Husqvarna 544405901

Piston Ring

Note: Piston ring

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544406001

Piston Pin

Note: Piston pin

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537399901

Locking Ring
(Superseded to 737441000)

Note: Circlip

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 503414101

Support Bushing

Note: Needle bearing

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544396001

Cylinder Gasket, Rear

Note: Gasket, cylinder rear

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 544395901

Cylinder Gasket, Front

Note: Gasket, cylinder front

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 725533355

Screw, MC6S 5 X 25

Note: Screw

$6.49

$

In Stock, Qty 19

0

10

Husqvarna 503235111

Solid Spark Plug, BPMR7A

Note: Spark plug

$3.49

$

In Stock, Qty 20+

0
