435 e - Husqvarna Chainsaw (2008-05) Chainbrake 435e/440e Parts Diagram

Chainsaw

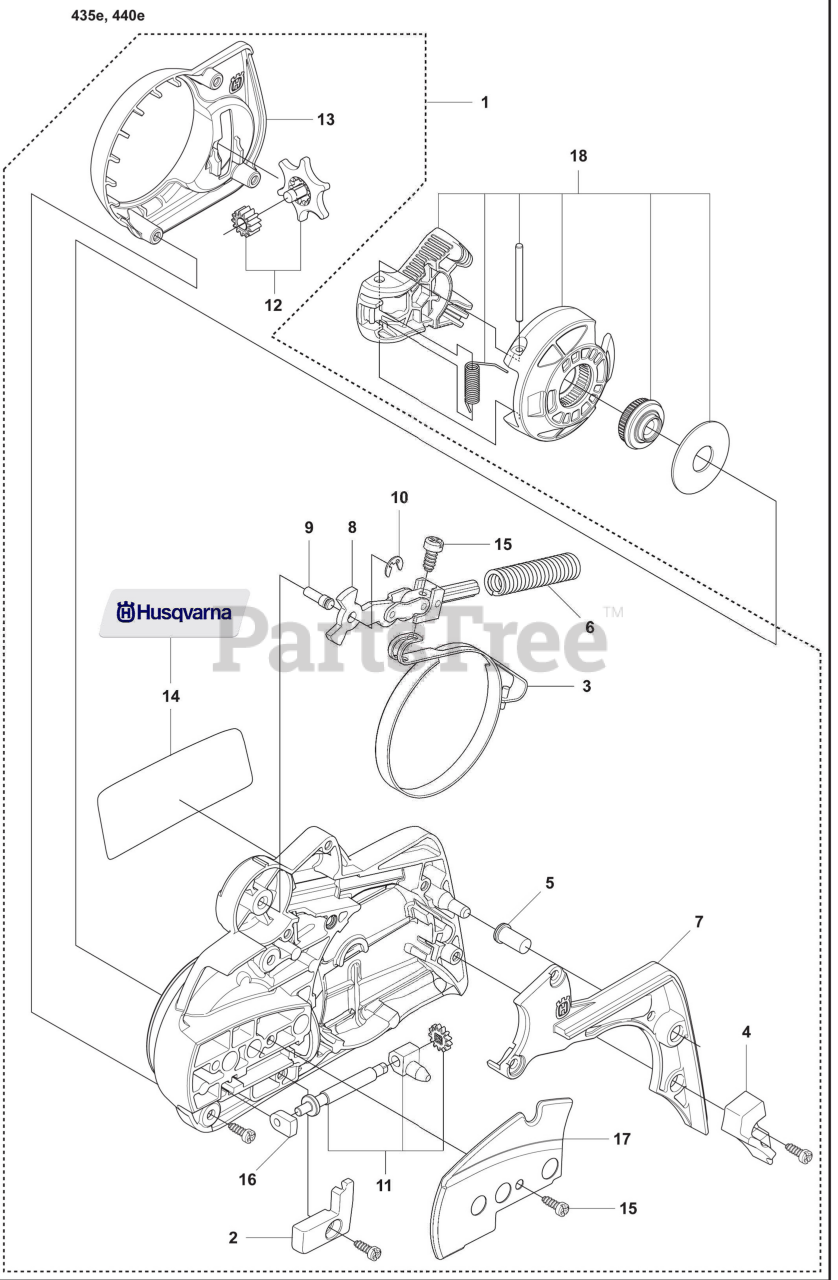

Chainbrake 435e/440e Parts Diagram

  • Title

1

Husqvarna 544194901

Chain Brake Assembly, Husq Orange
(Superseded to 544194907)

Note: Clutch cover assy

$56.99

$

In Stock, only 1 left!

0

2

Husqvarna 504582801

Cover
(Superseded to 504542801)

Note: Cover

$4.99

$

In Stock, Qty 6

0

3

Husqvarna 544306001

Brake Band Assembly

Note: Brake band assy

$10.99

$

In Stock, Qty 9

0

4

Husqvarna 544253101

Wear Protection

Note: Wear protection

$6.49

$

In Stock, only 3 left!

0

5

Husqvarna 503855201

Sleeve

Note: Guide bushing

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 503892601

RP BLADE GUARD
(Superseded to 576207401)

Note: Brake spring

$

$

Not available

7

Husqvarna 544248501

Cover

Note: Cover lid

$13.99

$

In Stock, only 1 left!

0

8

Husqvarna 503890802

Joint

Note: Knee joint

$40.99

$

In Stock, only 1 left!

0

9

Husqvarna 503892901

Pin

Note: Pin knee joint

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 735310820

Bar Retainer

Note: E-clip

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 537392901

Chain Tensioner Screw, Comp

Note: Chain tension screw

$13.99

$

In Stock, only 1 left!

0

12

Husqvarna 537347201

Chain Tensioner Wheel

Note: Chain tensioner wheel

$12.99

$

In Stock, only 1 left!

0

13

Husqvarna 537392601

Heat Shield

Note: Heat protector

$12.99

$

In Stock, only 1 left!

0

14

Husqvarna 544357501

Clutch Housing Decal

Note: Label

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 503217010

Screw

Note: Screw

$4.99

$

In Stock, Qty 17

0

16

Husqvarna 544845501

Sleeve Bearing
(Superseded to 525354301)

Note: Bearing sleeve

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544250501

Plate

Note: Wear plate

$9.99

$

In Stock, Qty 6

0

18

Husqvarna 537347801

Complete Knob

Note: Knob

$34.99

$

In Stock, only 1 left!

0
