435 (190-435-100) - Cub Cadet Bagger Mounting Kit (1988) att Rear Bagger Mounting Kit Parts Diagram

Bagger Mounting Kit

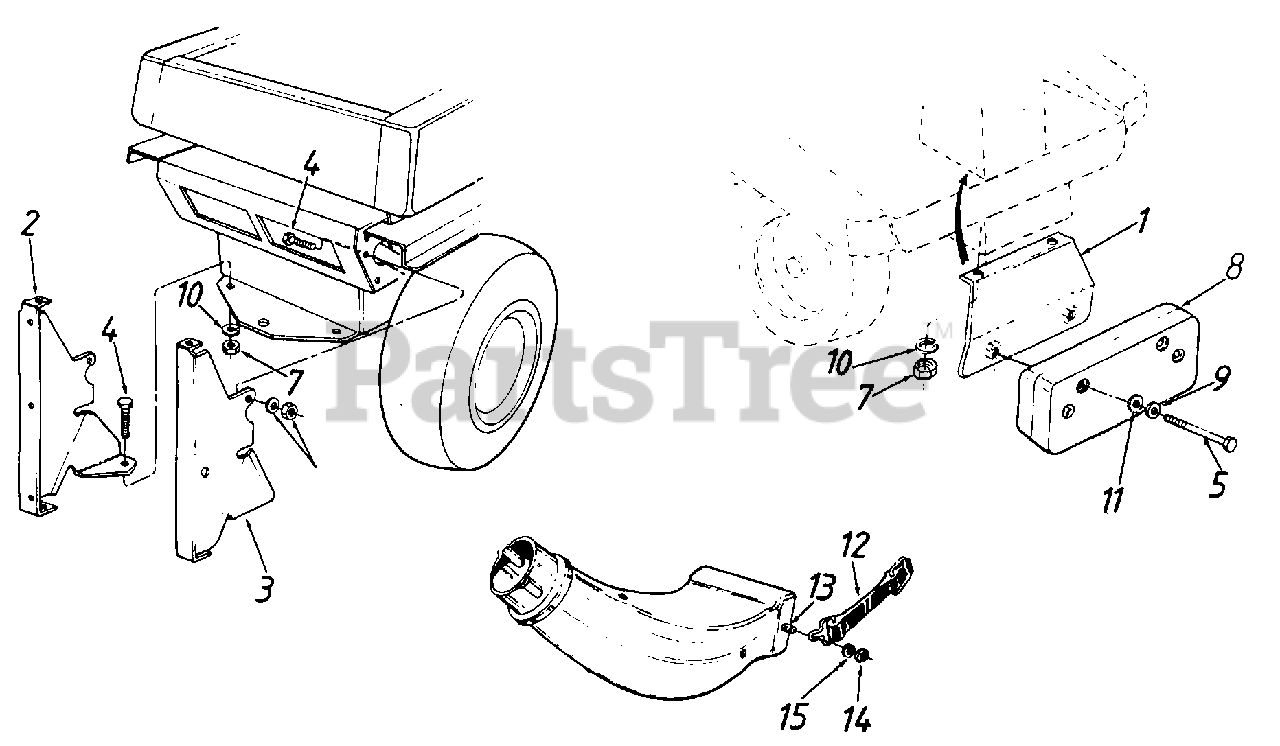

Rear Bagger Mounting Kit Parts Diagram

  • Title

1

Cub Cadet 15539

BRACKET-SUPPORT

$

$

Not available

2

Cub Cadet 15970

BRACKET-SUPPORT-RH
(Superseded to 15970A)

$

$

Not available

3

Cub Cadet 15971

BRACKET-SUPPORT-LH

$

$

Not available

4

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0693

SCREW-HEX 3/8 X 4.5 N.C GR. 5

$14.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 723-0367

COUNTERWEIGHT

$

$

Not available

9

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0280

WASHER-FL
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 723-0383

STRAP ASSY-RETAINER
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

13

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.99

$

In Stock, Qty 16

0

15

Cub Cadet 736-0175

WASHER-SPRING.270 ID X.51 OD X.030
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0
