435 (190-435-100) - Cub Cadet Bagger Mounting Kit (1987) Rear Bagger Mounting Kit Parts Diagram

Bagger Mounting Kit

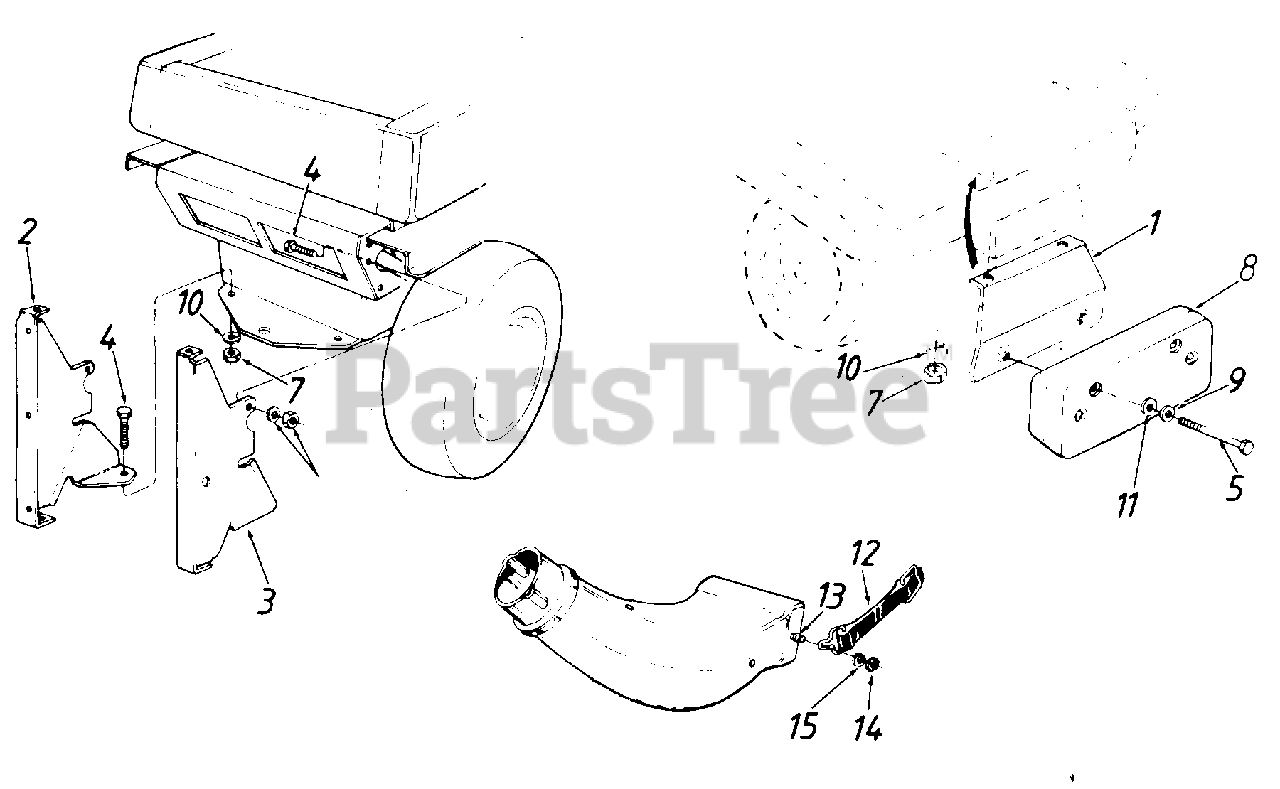

Rear Bagger Mounting Kit Parts Diagram

  • Title

1

Cub Cadet 15539

Counterweight Support Brkt.

$

$

Not available

2

Cub Cadet 15970

Catcher Support Brkt.-R.H.
(Superseded to 15970A)

$

$

Not available

3

Cub Cadet 15971

Catcher Support Brkt.-L.H.

$

$

Not available

4

Cub Cadet 710-0376

Hex Cap Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 723-0367

Front Counterweight

$

$

Not available

9

Cub Cadet 736-0105

Bell.-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0119

L.-Wash 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0280

Fl.-Wash. .390" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 723-0383

Mounting Strap
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

13

Cub Cadet 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0324

Hex Nut 1/4-20 Thd.*

$3.99

$

In Stock, Qty 17

0

15

Cub Cadet 736-0175

Spr. Wash. .267 I.D. x .562" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0
