43412 - Gravely Car Pusher for 2-Wheel Tractor CAR PUSHER Parts Diagram

Car Pusher for 2-Wheel Tractor

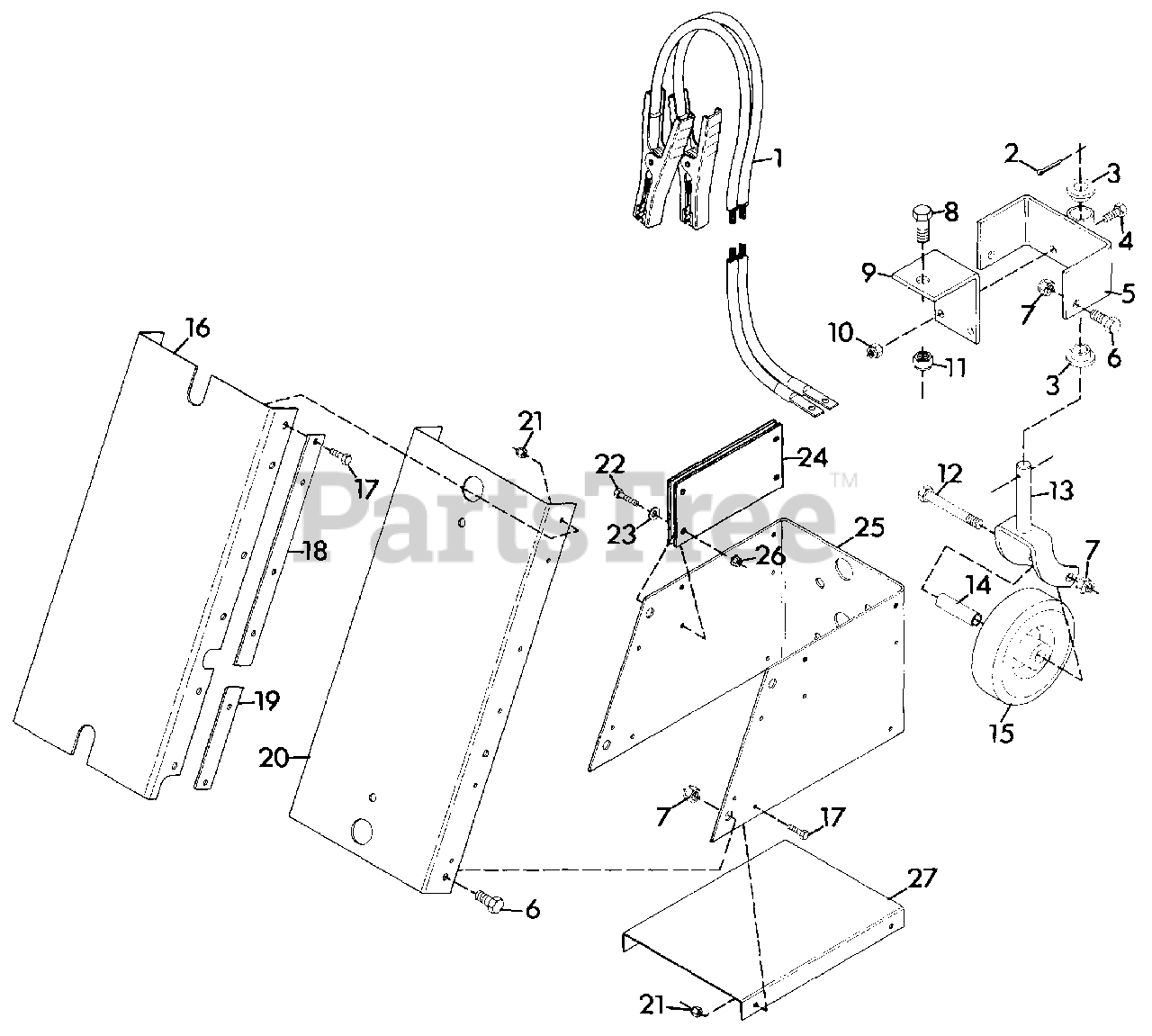

CAR PUSHER Parts Diagram

  • Title
1

Gravely 043385

ASSEMBLY, CABLE
(Superseded to 08552400)

$

$

Not available

2

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 010174

BUSHING, NYLON .76X1.00X.6 FLANGE
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 044442

WELDMENT, CASTER WHEEL SUPPORT
(Superseded to 08556100)

$26.99

$

Usually ships in 4-12 days

0

6

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

7

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 271547

BOLT, HEX 5/8-11X1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

9

Gravely 044446

BRACKET, CASTER FORK MOUNTING
(Superseded to 08556400)

$

$

Not available

10

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

11

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 011385

WELDMENT, CASTER FORK
(Superseded to 08585053)

$120.99

$

In Stock, only 2 left!

0

14

Gravely 011387

BUSHING, .515X.750X2.594
(Superseded to 08585100)

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 011386

WHEEL, CASTER
(Superseded to 07132800)

$79.99

$

Usually ships in 4-12 days

0

16

Gravely 043380

PAD, BUMPER
(Superseded to 08567700)

$151.99

$

Usually ships in 4-12 days

0

17

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

18

Gravely 044447

STRIP
(Superseded to 08556500)

$

$

Not available

19

Gravely 044448

STRIP
(Superseded to 08556600)

$

$

Not available

20

Gravely 044436

BUMPER
(Superseded to 08555800)

$

$

Not available

21

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 044449

BOLT, 1/4-20X1.0 NYLON
(Superseded to 07011200)

$

$

Not available

23

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

24

Gravely 043389

PAD, INSULATOR
(Superseded to 08804500)

$

$

Not available

25

Gravely 044437

FRAME, 2-WHEEL PUSHER
(Superseded to 08555900)

$

$

Not available

26

Gravely 044450

NUT, NYLON
(Superseded to 07011800)

$

$

Not available

27

Gravely 044438

TRAY
(Superseded to 08556000)

$

$

Not available
