433447-0215-E2 - Briggs & Stratton Horizontal Engine Engine Mounting Kits Parts Diagram

Horizontal Engine

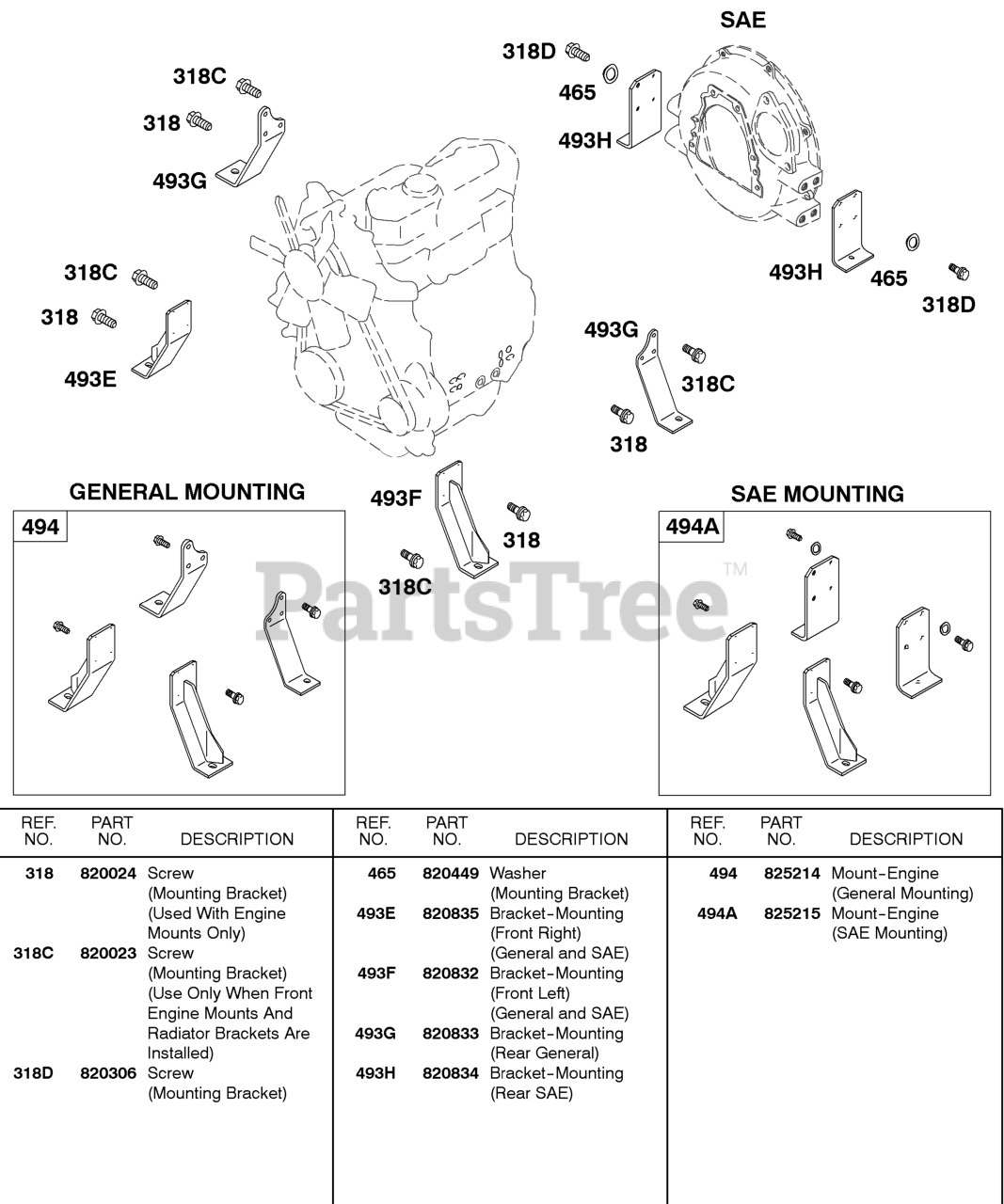

Engine Mounting Kits Parts Diagram

  • Title
318

Briggs & Stratton 820024

Screw

Note: (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

318C

Briggs & Stratton 820023

Screw

Note: (Mounting Bracket) (Use Only When Front Engine Mounts And Radiator Brackets Are Installed)

$3.99

$

Usually ships in 2-12 days

0

318D

Briggs & Stratton 820306

Screw

Note: (Mounting Bracket)

$3.49

$

Usually ships in 2-12 days

0

465

Briggs & Stratton 820449

Washer

Note: (Mounting Bracket)

$4.49

$

Usually ships in 2-12 days

0

493E

Briggs & Stratton 820835

Bracket-Mounting

Note: (Right Front)(General and SAE)

$198.99

$

Usually ships in 2-12 days

0

493F

Briggs & Stratton 820832

Bracket-Mounting

Note: (Left Front)(General and SAE)

$204.99

$

Usually ships in 2-12 days

0

493G

Briggs & Stratton 820833

Bracket-Mounting

Note: (Rear General)

$121.99

$

Usually ships in 2-12 days

0

493H

Briggs & Stratton 820834

Bracket-Mounting

Note: (Rear SAE)

$105.99

$

Usually ships in 2-12 days

0

494

Briggs & Stratton 825214

Mount-Engine

Note: (General Mounting)

$397.99

$

Usually ships in 2-12 days

0

494A

Briggs & Stratton 825215

Mount-Engine

Note: (SAE Mounting)

$446.99

$

Usually ships in 2-12 days

0
