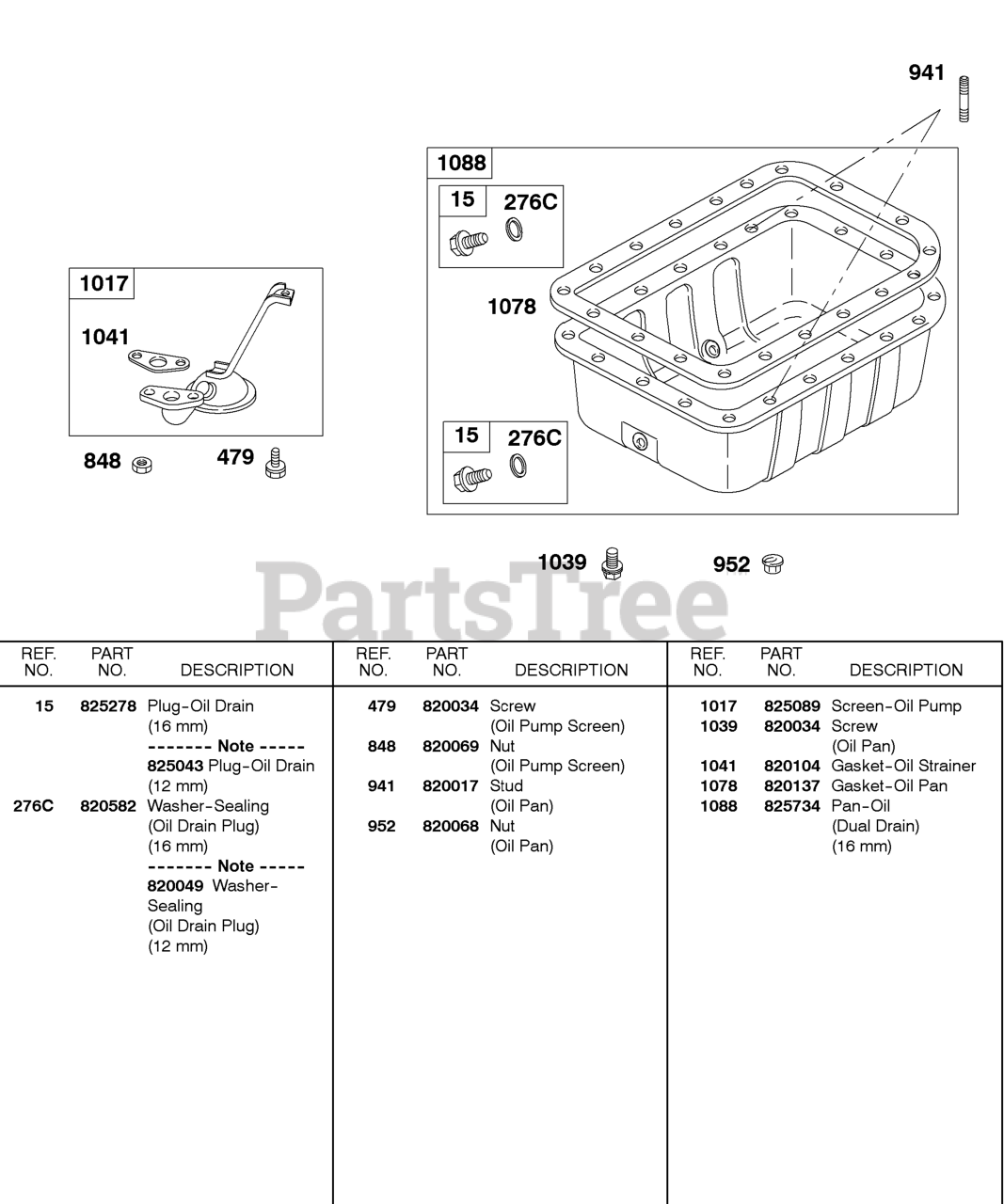

433447-0115-A1 - Briggs & Stratton Horizontal Engine Oil Pan, Oil Pump Screen Parts Diagram

Horizontal Engine

Oil Pan, Oil Pump Screen Parts Diagram

  • Title

15

Briggs & Stratton 825278

Plug-Oil Drain

Note: (16mm)

$11.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 825043

Plug-Oil Drain

Note: (12 mm Long)

$10.99

$

Usually ships in 2-12 days

0

276C

Briggs & Stratton 820049

Washer-Sealing
(Superseded to 825043)

Note: (12 mm Long)

$10.99

$

Usually ships in 2-12 days

0

276C

Briggs & Stratton 820582

Washer-Sealing

Note: (Oil Drain Plug)(16mm)

$7.99

$

In Stock, only 2 left!

0

479

Briggs & Stratton 820034

Screw
(Superseded to 821233)

Note: (Oil Pump Screen)

$3.99

$

Usually ships in 2-12 days

0

848

Briggs & Stratton 820069

Nut

Note: (Oil Pump Screen)

$3.99

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 820017

Stud

Note: (Oil Pan)

$5.99

$

Usually ships in 2-12 days

0

952

Briggs & Stratton 820068

Nut

Note: (Oil Pan)

$3.49

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 825089

Screen-Oil Pump

$74.99

$

In Stock, only 1 left!

0

1039

Briggs & Stratton 820034

Screw
(Superseded to 821233)

Note: (Oil Pan)

$3.99

$

Usually ships in 2-12 days

0

1041

Briggs & Stratton 820104

Gasket-Oil Pump Screen

$7.99

$

Usually ships in 2-12 days

0

1078

Briggs & Stratton 820137

Gasket-Oil Pan

$43.99

$

Usually ships in 2-12 days

0

1088

Briggs & Stratton 825734

Pan-Oil

Note: (Dual Drain)(16mm)

$391.99

$

Usually ships in 2-12 days

0
