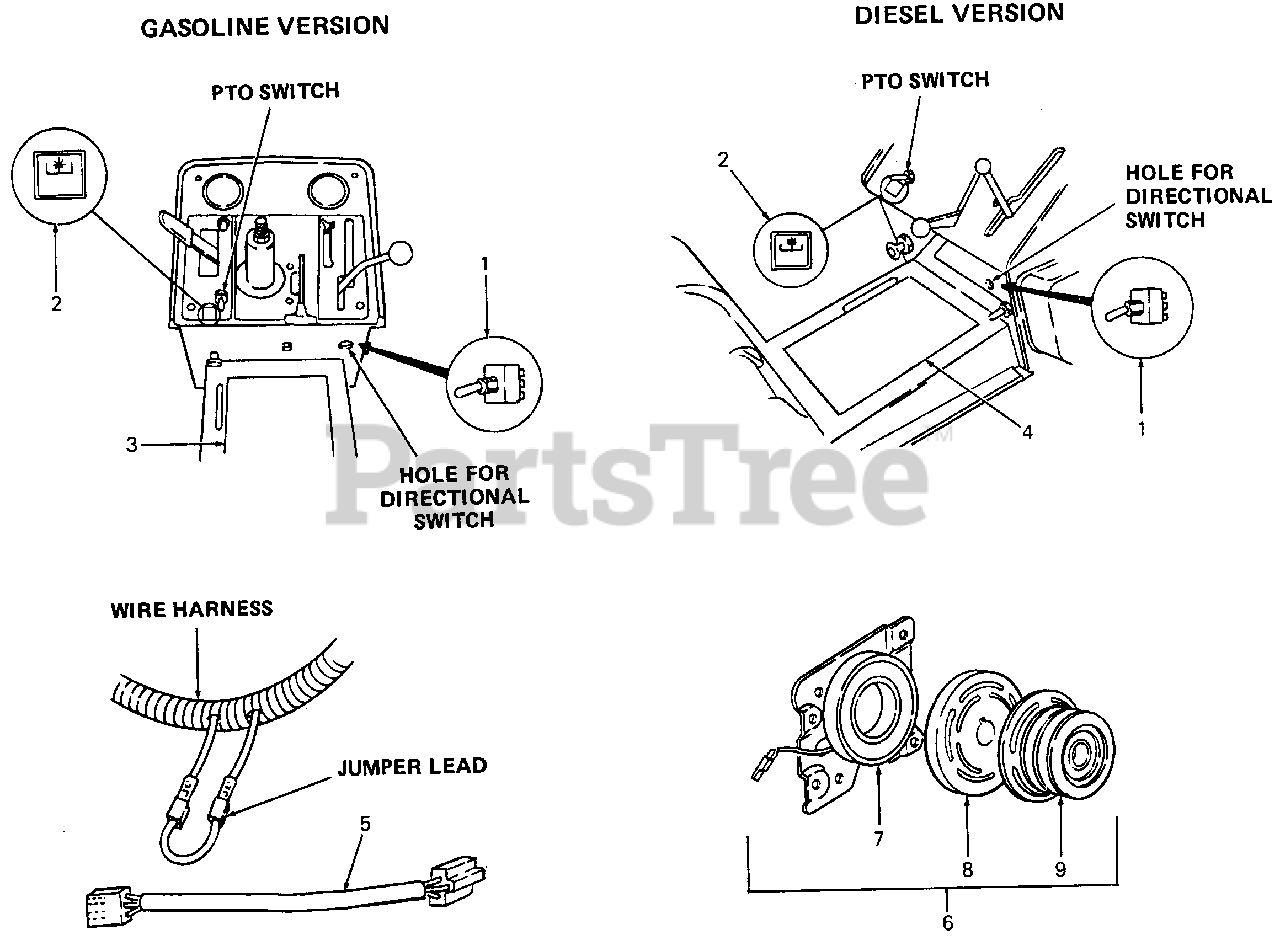

433 (190-433-100) - Cub Cadet Rear PTO Kit Electrical Parts Diagram

Rear PTO Kit

Electrical Parts Diagram

  • Title

1

Cub Cadet 725-3135

Switch, Directional

$

$

Not available

2

Cub Cadet 731-3073

Plaque, PTO Logo

$

$

Not available

3

Cub Cadet 779-3425

Graphic, Caution (Gas Only)

Note: (S/N 700,000 thru 799,999)

$

$

Not available

Cub Cadet 779-3594

Graphic, Caution (Gas Only)

Note: (S/N 800,000 thru 864,500)

$

$

Currently unavailable

Cub Cadet 777-2684

Graphic, Caution (Gas Only)

Note: (S/N 864,501 thru & Above)

$

$

Not available

4

Cub Cadet 779-3426

Graphic, Caution

Note: (Diesel Only)

$

$

Not available

Cub Cadet 779-3577

Graphic, Caution

Note: (Diesel Only)

$

$

Currently unavailable

Cub Cadet 777-2682

Graphic, Caution

Note: (Diesel Only)

$

$

Not available

5

Cub Cadet 725-3136

Harness Adapter, Directional Switch

$

$

Not available

6

Cub Cadet 717-3024

PTO Clutch

Note: (Includes Ref No. 7, 8 & 9)

$

$

Not available

7

Cub Cadet 759-3505

Field Assy

$

$

Not available

8

Cub Cadet 759-3506

Rotor

$

$

Not available

9

Cub Cadet 759-3507

Armature Assy

$

$

Not available
