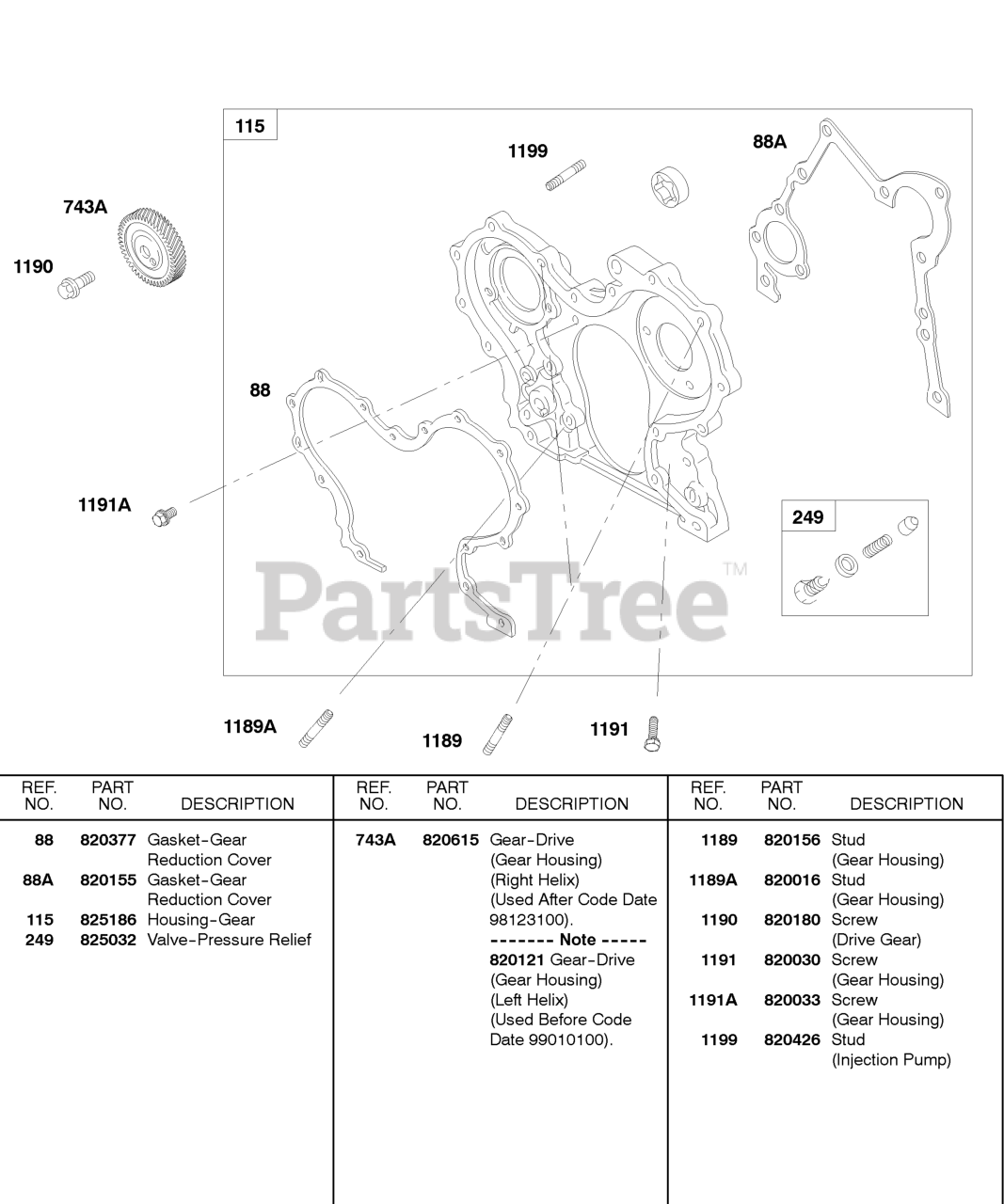

432447-0376-E2 - Briggs & Stratton Horizontal Engine Gear Housing Parts Diagram

Horizontal Engine

Gear Housing Parts Diagram

  • Title

88

Briggs & Stratton 820377

Gasket-Gear Reduction Cover

$31.99

$

In Stock, only 1 left!

0

88A

Briggs & Stratton 820155

Gasket-Gear Reduction Cover

$31.99

$

Usually ships in 2-12 days

0

115

Briggs & Stratton 825186

Housing-Gear

$604.99

$

Usually ships in 2-12 days

0

249

Briggs & Stratton 825032

Valve-Pressure Relief

$43.99

$

Usually ships in 2-12 days

0

743A

Briggs & Stratton 820615

Gear-Drive

Note: (Gear Housing) (Right Helix) Used After Code Date 98123100

$95.99

$

Usually ships in 2-12 days

0

743A

Briggs & Stratton 820121

Gear-Drive

Note: (Gear Housing) (Left Helix) Used Before Code Date 99010100

$

$

Not available

1189

Briggs & Stratton 820156

Stud

Note: (Gear Housing)

$

$

Not available

1189A

Briggs & Stratton 820016

Stud

Note: (Gear Housing)

$4.99

$

Usually ships in 2-12 days

0

1190

Briggs & Stratton 820180

Screw
(Superseded to 820272)

Note: (Drive Gear)

$3.49

$

Usually ships in 2-12 days

0

1191

Briggs & Stratton 820030

Screw

Note: (Gear Housing)

$3.49

$

Usually ships in 2-12 days

0

1191A

Briggs & Stratton 820033

Screw

Note: (Gear Housing)

$3.49

$

Usually ships in 2-12 days

0

1199

Briggs & Stratton 820426

Stud
(Superseded to 821353)

Note: (Injection Pump)

$5.99

$

Usually ships in 2-12 days

0
