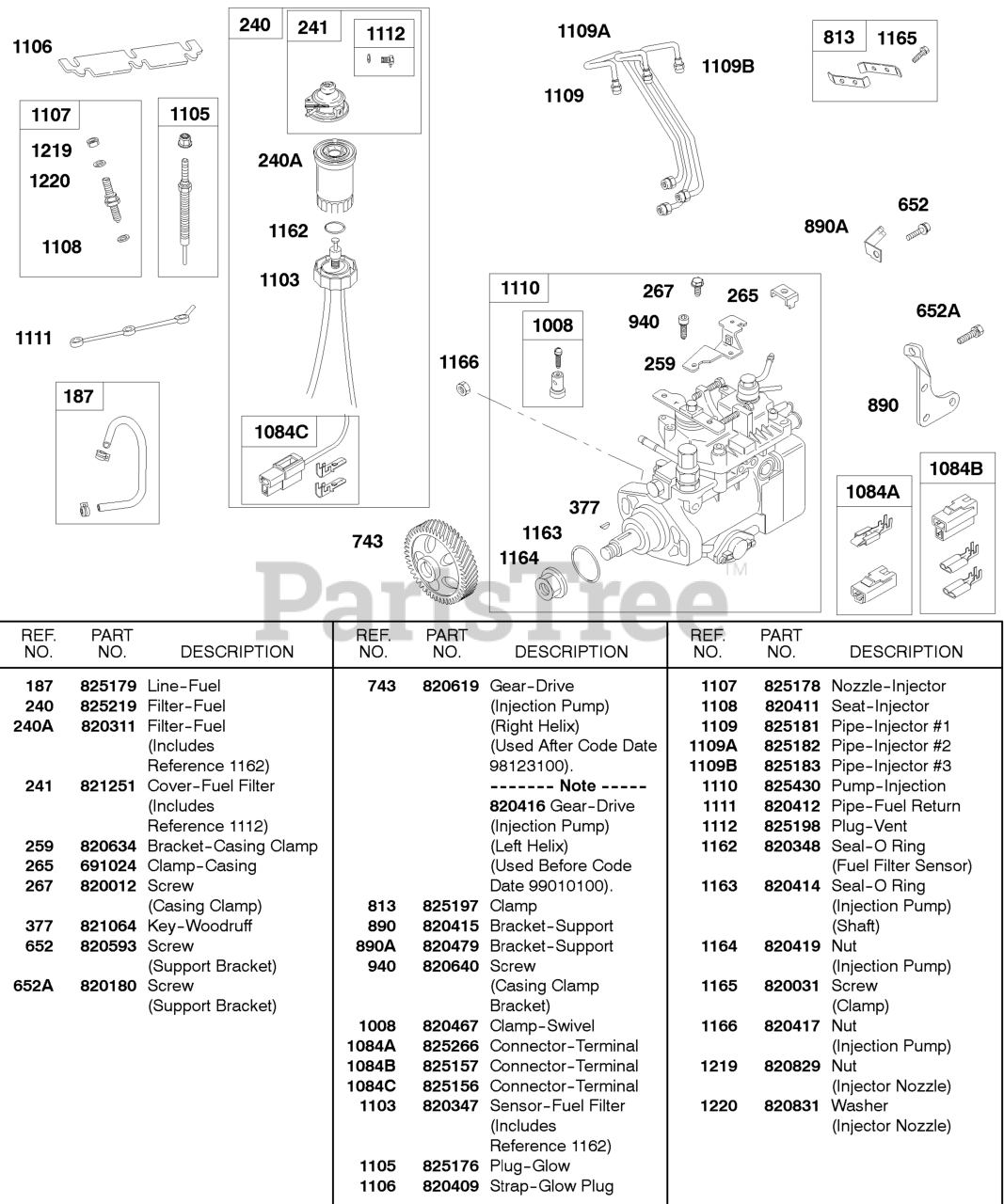

432447-0205-E2 - Briggs & Stratton Horizontal Engine Fuel Filter, Injection Pump Parts Diagram

Horizontal Engine

Fuel Filter, Injection Pump Parts Diagram

  • Title

187

Briggs & Stratton 825179

Line-Fuel
(Superseded to 825741)

$15.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 825219

Filter-Fuel

$295.99

$

Usually ships in 2-12 days

0

240A

Briggs & Stratton 820311

Filter-Fuel

Note: (Includes Reference 1162)

$106.99

$

In Stock, Qty 5

0

241

Briggs & Stratton 821251

Cover-Fuel Filter

Note: (Includes Reference 1112)

$156.99

$

Usually ships in 2-12 days

0

259

Briggs & Stratton 820634

Bracket-Casing Clamp

$209.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 820012

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

309

Motor-Starter

Note: (For Replacement Starter Motor, Order Reference 309A)

$

$

Not available

377

Briggs & Stratton 821064

Key-Woodruff

$12.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 820593

Screw

Note: (Support Bracket)

$3.49

$

Usually ships in 2-12 days

0

652A

Briggs & Stratton 820180

Screw
(Superseded to 820272)

Note: (Support Bracket)

$3.49

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 820619

Gear-Drive

Note: (Injection Pump) (Right Helix)

$148.99

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 820416

Gear-Drive

Note: (Injection Pump) (Left Helix)

$31.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 825197

Clamp

$18.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 820415

Bracket-Support

$25.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 820479

Bracket-Support

$21.99

$

Usually ships in 2-12 days

0

940

Briggs & Stratton 820640

Screw

Note: (Casing Clamp Bracket)

$6.99

$

Usually ships in 2-12 days

0

1008

Briggs & Stratton 820467

Clamp-Swivel

$13.99

$

Usually ships in 2-12 days

0

1084A

Briggs & Stratton 825266

Connector-Terminal

$5.99

$

In Stock, only 1 left!

0

1084B

Briggs & Stratton 825157

Connector-Terminal

$6.99

$

In Stock, only 1 left!

0

1084C

Briggs & Stratton 825156

Connector-Terminal

$5.99

$

Usually ships in 2-12 days

0

1103

Briggs & Stratton 820347

Sensor-Fuel Filter

Note: (Includes Reference 1162)

$92.99

$

Usually ships in 2-12 days

0

1105

Briggs & Stratton 825176

Plug-Glow
(Superseded to 821308)

$118.99

$

In Stock, only 1 left!

0

1106

Briggs & Stratton 820409

Strap-Glow Plug

$27.99

$

In Stock, only 2 left!

0

1107

Briggs & Stratton 825178

Nozzle-Injector

$385.99

$

Usually ships in 2-12 days

0

1108

Briggs & Stratton 820411

Seat-Injector

$9.99

$

In Stock, only 3 left!

0

1109

Briggs & Stratton 825181

Pipe-Injector

$25.99

$

Usually ships in 2-12 days

0

1109A

Briggs & Stratton 825182

Pipe-Injector

$53.99

$

Usually ships in 2-12 days

0

1109B

Briggs & Stratton 825183

Pipe-Injector

$44.99

$

Usually ships in 2-12 days

0

1110

Briggs & Stratton 825430

Pump-Injection

$3178.99

$

Usually ships in 2-12 days

0

1111

Briggs & Stratton 820412

Pipe-Fuel Return

$43.99

$

Usually ships in 2-12 days

0

1112

Briggs & Stratton 825198

Plug-Vent

$17.99

$

Usually ships in 2-12 days

0

1162

Briggs & Stratton 820348

Seal-O Ring

Note: (Fuel Filter Sensor)

$16.99

$

Usually ships in 2-12 days

0

1163

Briggs & Stratton 820414

Seal-O Ring

Note: (Injection Pump Shaft) (Shaft)

$

$

Not available

1164

Briggs & Stratton 820419

Nut

Note: (Injection Pump Shaft)

$4.49

$

Usually ships in 2-12 days

0

1165

Briggs & Stratton 820031

Screw

Note: (Clamp)

$3.99

$

Usually ships in 2-12 days

0

1166

Briggs & Stratton 820417

Nut

Note: (Injection Pump)

$2.99

$

Usually ships in 2-12 days

0

1219

Briggs & Stratton 820829

Nut

Note: (Injector Nozzle)

$6.49

$

In Stock, only 3 left!

0

1220

Briggs & Stratton 820831

Washer

Note: (Injector Nozzle)

$6.49

$

In Stock, only 3 left!

0
