432447-0205-E2 - Briggs & Stratton Horizontal Engine 1.2 KW Starter Motor Parts Diagram

Horizontal Engine

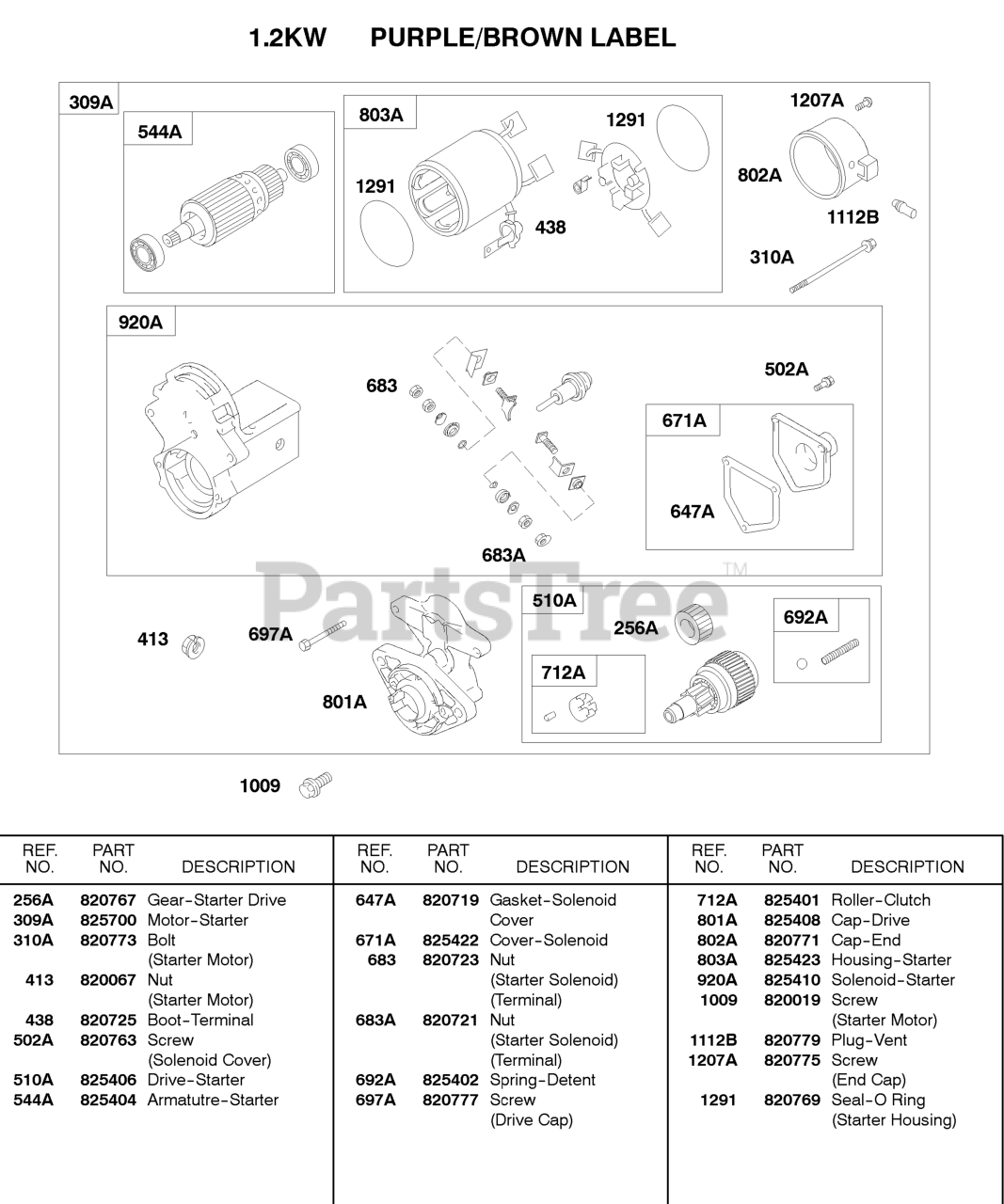

1.2 KW Starter Motor Parts Diagram

  • Title

256A

Briggs & Stratton 820767

Gear-Starter Drive

$50.99

$

Usually ships in 2-12 days

0

309A

Briggs & Stratton 825700

Motor-Starter

Note: (1.2 KW)(Purple/Brown Label)

$463.99

$

In Stock, only 1 left!

0

310A

Briggs & Stratton 820773

Screw

Note: (Starter Motor)

$8.49

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 820067

Nut

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

438

Briggs & Stratton 820725

Boot-Terminal

$7.49

$

Usually ships in 2-12 days

0

502A

Briggs & Stratton 820763

Screw

Note: (Solenoid Cover)

$4.99

$

Usually ships in 2-12 days

0

510A

Briggs & Stratton 825406

Drive-Starter
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

544A

Briggs & Stratton 825404

Armature-Starter
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

647A

Briggs & Stratton 820719

Gasket-Solenoid Cover

$11.99

$

Usually ships in 2-12 days

0

671A

Briggs & Stratton 825422

Cover-Solenoid

$35.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 820723

Nut

Note: (Starter Solenoid) (Terminal)

$5.99

$

Usually ships in 2-12 days

0

683A

Briggs & Stratton 820721

Nut

Note: (Starter Solenoid) (Terminal)

$5.99

$

Usually ships in 2-12 days

0

692A

Briggs & Stratton 825402

Spring-Detent

$8.49

$

Usually ships in 2-12 days

0

697A

Briggs & Stratton 820777

Screw

Note: (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

712A

Briggs & Stratton 825401

Roller-Clutch

$11.99

$

Usually ships in 2-12 days

0

801A

Briggs & Stratton 825408

Cap-Drive

$179.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 820771

Cap-End

$124.99

$

Usually ships in 2-12 days

0

803A

Briggs & Stratton 825423

Housing-Starter
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

920A

Briggs & Stratton 825410

Solenoid-Starter
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

1009

Briggs & Stratton 820019

Screw

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

1112B

Briggs & Stratton 820779

Plug-Vent

$16.99

$

Usually ships in 2-12 days

0

1207A

Briggs & Stratton 820775

Screw

Note: (End Cap)

$7.49

$

Usually ships in 2-12 days

0

1291

Briggs & Stratton 820769

Seal-O Ring

Note: (Starter Housing)

$17.99

$

Usually ships in 2-12 days

0
