432447-0105-01 - Briggs & Stratton Horizontal Engine 1.0 KW Starter Motor Parts Diagram

Horizontal Engine

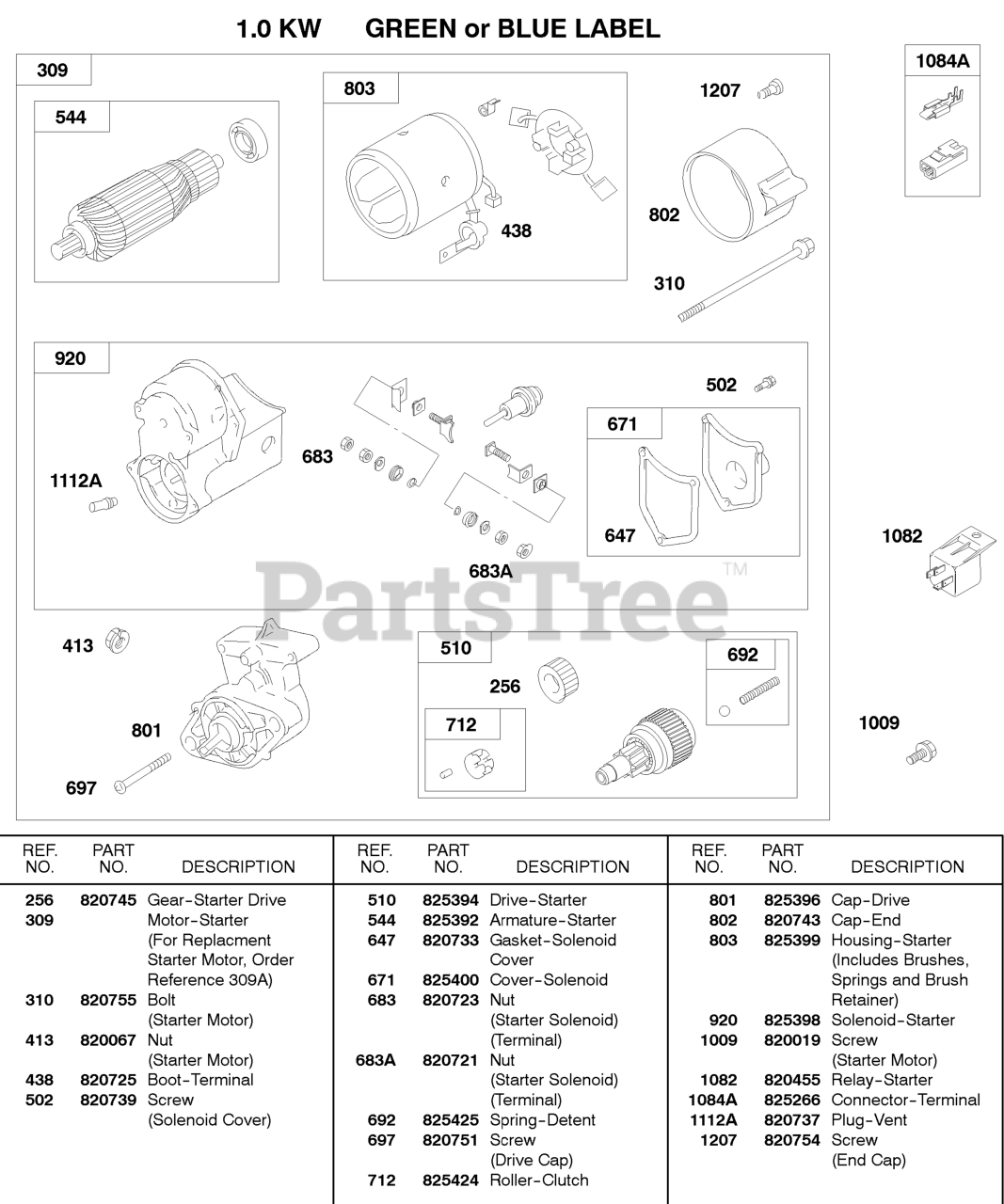

1.0 KW Starter Motor Parts Diagram

  • Title

256

Briggs & Stratton 820745

Gear-Starter Drive
(Superseded to 825394)

$411.99

$

Usually ships in 2-12 days

0

309

Motor-Starter

Note: (For Replacement Starter Motor, Order Reference 309A)

$

$

Not available

310

Briggs & Stratton 820755

Screw

Note: (Starter Motor)

$12.99

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 820067

Nut

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

438

Briggs & Stratton 820725

Boot-Terminal

$7.49

$

Usually ships in 2-12 days

0

502

Briggs & Stratton 820739

Screw

Note: (Solenoid Cover)

$5.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 825394

Drive-Starter

$411.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 825392

Armature-Starter

$471.99

$

Usually ships in 2-12 days

0

647

Briggs & Stratton 820733

Gasket-Solenoid Cover

$20.99

$

Usually ships in 2-12 days

0

671

Briggs & Stratton 825400

Cover-Solenoid

$42.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 820723

Nut

Note: (Starter Solenoid) (Terminal)

$5.99

$

Usually ships in 2-12 days

0

683A

Briggs & Stratton 820721

Nut

Note: (Starter Solenoid) (Terminal)

$5.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 825425

Spring-Detent
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

697

Briggs & Stratton 820751

Screw

Note: (Drive Cap)

$4.99

$

Usually ships in 2-12 days

0

712

Briggs & Stratton 825424

Roller-Clutch
(Superseded to 825700)

$463.99

$

In Stock, only 1 left!

0

801

Briggs & Stratton 825396

Cap-Drive

$242.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 820743

Cap-End

$67.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 825399

Housing-Starter

Note: (Includes Brushes, Springs and Brush Retainer)

$217.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 825398

Solenoid-Starter

$422.99

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 820019

Screw

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

1082

Briggs & Stratton 820455

Relay-Starter

$25.99

$

Usually ships in 2-12 days

0

1084A

Briggs & Stratton 825266

Connector-Terminal

$5.99

$

In Stock, only 1 left!

0

1112A

Briggs & Stratton 820737

Plug-Vent

$15.99

$

Usually ships in 2-12 days

0

1207

Briggs & Stratton 820754

Screw

Note: (End Cap)

$3.99

$

Usually ships in 2-12 days

0
