43210 - Gravely Roll-Over Protection for PM Gear ROLL-OVER PROTECTION KIT Parts Diagram

Roll-Over Protection for PM Gear

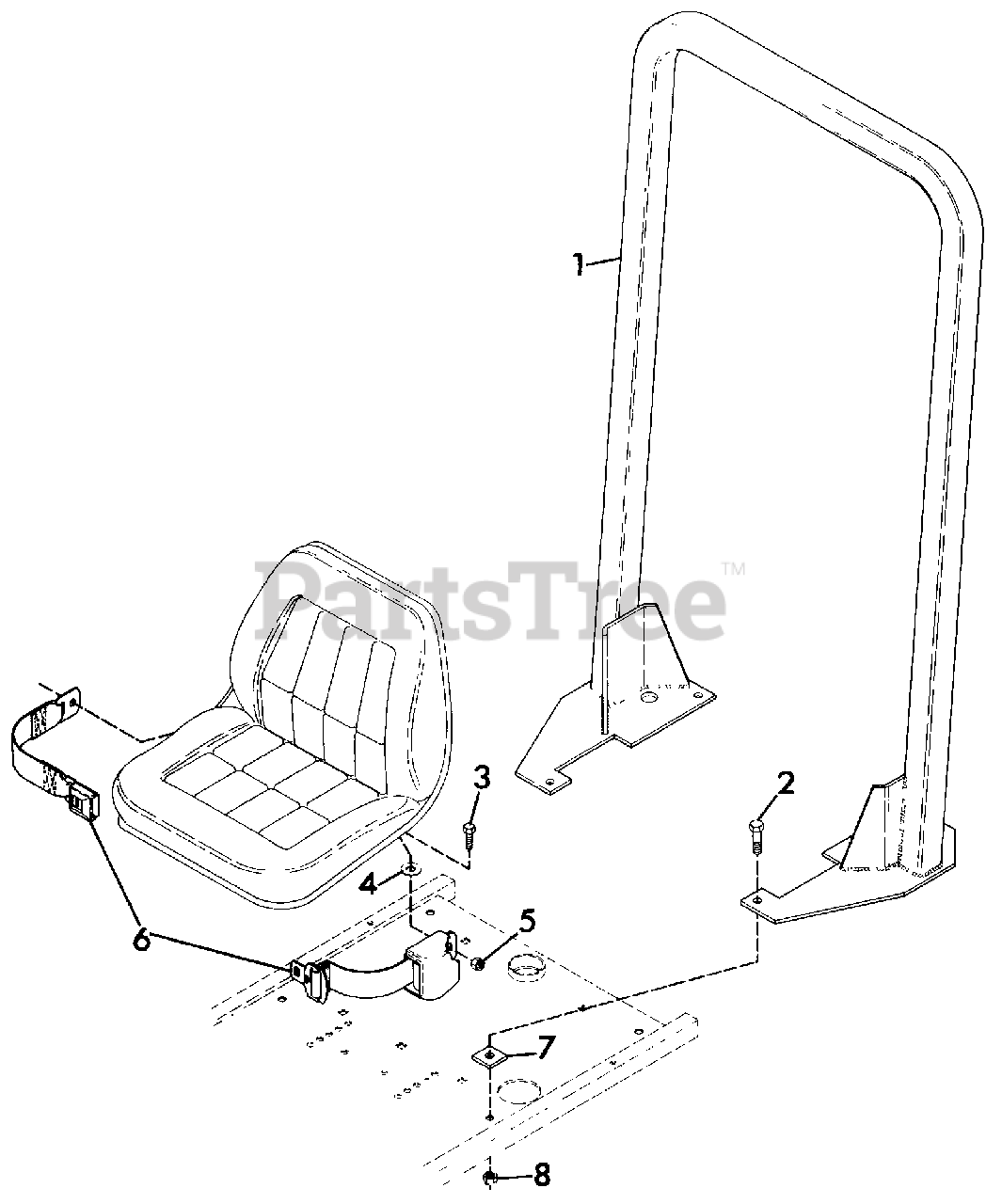

ROLL-OVER PROTECTION KIT Parts Diagram

  • Title

1

Gravely 043201

WELDMENT, ROLL OVER BAR
(Superseded to 08945000)

$

$

Not available

2

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

3

Gravely 180145

BOLT, HEX 7/16-14X1.00
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

4

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 039413

NUT, LOCK 7/16-14 HEX
(Superseded to 06527500)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 043208

ASSEMBLY, SEAT BELT
(Superseded to 08945400)

$89.99

$

Usually ships in 4-12 days

0

7

Gravely 043207

PLATE, SPACER
(Superseded to 08945300)

$

$

Not available

8

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0
