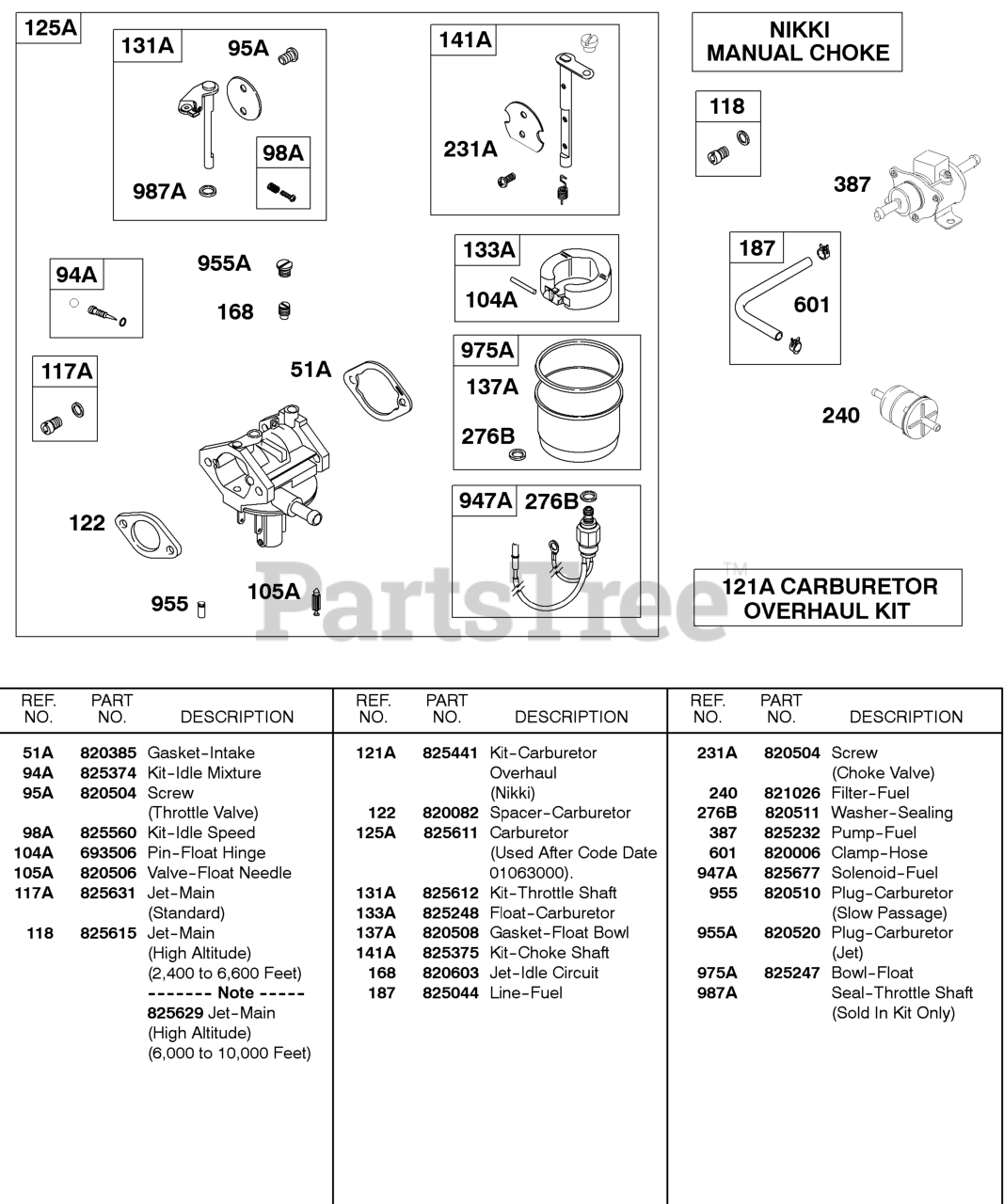

430447-0105-E2 - Briggs & Stratton Horizontal Engine Carburetor, NIKKI Manual Choke Parts Diagram

Horizontal Engine

Carburetor, NIKKI Manual Choke Parts Diagram

  • Title

51A

Briggs & Stratton 820385

Gasket-Intake

$31.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 825374

Kit-Idle Mixture

$18.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 820504

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 825560

Kit-Idle Speed
(Superseded to 825616)

$17.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 693506

Pin-Float Hinge

$5.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 820506

Valve-Float Needle

$24.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 825631

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 825615

Jet-Main

Note: (High Altitude) (2,400-6,600 Feet)

$14.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 825629

Jet-Main

Note: (High Altitude) (6,000-10,000 Feet)

$22.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 825441

Kit-Carb Overhaul

Note: (Nikki)

$232.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 820082

Spacer-Carburetor

$23.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 825611

Carburetor
(Superseded to 825726)

Note: (Nikki)(Gravity Feed)(Manual Choke) Used After Code Date 01063000

$903.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 825612

Kit-Throttle Shaft

$88.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 825248

Float-Carburetor

$33.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 820508

Gasket-Float Bowl

$10.99

$

In Stock, only 1 left!

0

141A

Briggs & Stratton 825375

Kit-Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

168

Briggs & Stratton 820603

Jet-Idle Circuit

$26.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 825044

Line-Fuel

$10.99

$

Usually ships in 2-12 days

0

231A

Briggs & Stratton 820504

Screw

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 821026

Filter-Fuel

$20.99

$

Usually ships in 2-12 days

0

276B

Briggs & Stratton 820511

Washer-Sealing

$9.49

$

In Stock, only 1 left!

0

387

Briggs & Stratton 825232

Pump-Fuel

$184.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 820006

Clamp-Hose

$3.99

$

Usually ships in 2-12 days

0

947A

Briggs & Stratton 825677

Solenoid-Fuel

$328.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 820510

Plug-Carburetor

Note: (Slow Passage)

$15.99

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 820520

Plug-Carburetor

Note: (Jet)

$7.49

$

Usually ships in 2-12 days

0

975A

Briggs & Stratton 825247

Bowl-Float

$64.99

$

Usually ships in 2-12 days

0

987A

Seal-Throttle Shaft

Note: (Sold In Kit Only)

$

$

Not available
