430447-0105-E2 - Briggs & Stratton Horizontal Engine Alternator 40 AMP Parts Diagram

Horizontal Engine

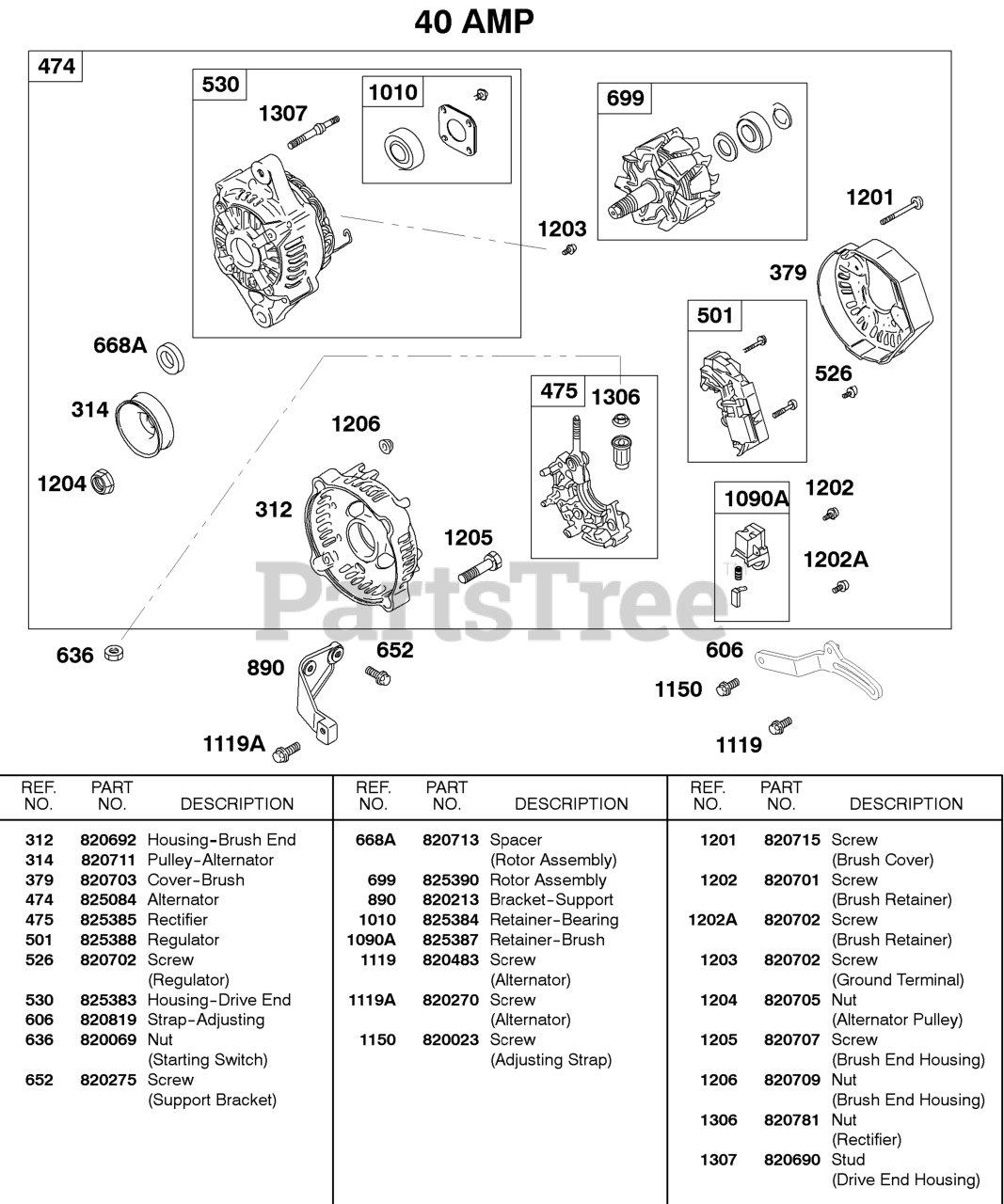

Alternator 40 AMP Parts Diagram

  • Title

312

Briggs & Stratton 820692

Housing-Brush End

$100.99

$

Usually ships in 2-12 days

0

314

Briggs & Stratton 820711

Pulley-Alternator

$57.99

$

Usually ships in 2-12 days

0

379

Briggs & Stratton 820703

Cover-Brush

$54.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 825084

Alternator

Note: (40 Amp)

$850.99

$

Usually ships in 2-12 days

0

475

Briggs & Stratton 825385

Rectifier
(Superseded to 825084)

$850.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 825388

Regulator

$197.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 820702

Screw

Note: (Regulator)

$3.99

$

Usually ships in 2-12 days

0

530

Briggs & Stratton 825383

Housing-Drive End

$515.99

$

Usually ships in 2-12 days

0

606

Briggs & Stratton 820819

Strap-Adjusting

$114.99

$

Usually ships in 2-12 days

0

636

Briggs & Stratton 820069

Nut

Note: (Starting Switch)

$3.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 820275

Screw

Note: (Support Bracket)

$3.99

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 820713

Spacer

Note: (Rotor Assembly)

$11.99

$

Usually ships in 2-12 days

0

699

Briggs & Stratton 825390

Rotor Assembly
(Superseded to 825084)

$850.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 820213

Bracket-Support

$79.99

$

Usually ships in 2-12 days

0

1010

Briggs & Stratton 825384

Retainer-Bearing

$47.99

$

Usually ships in 2-12 days

0

1090A

Briggs & Stratton 825387

Retainer-Brush

$68.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 820483

Screw

Note: (Alternator)

$5.99

$

Usually ships in 2-12 days

0

1119A

Briggs & Stratton 820270

Screw

Note: (Alternator)

$5.99

$

Usually ships in 2-12 days

0

1150

Briggs & Stratton 820023

Screw

Note: (Adjusting Strap)

$3.99

$

Usually ships in 2-12 days

0

1201

Briggs & Stratton 820715

Screw

Note: (Brush Cover)

$4.49

$

Usually ships in 2-12 days

0

1202

Briggs & Stratton 820701

Screw

Note: (Brush Retainer)

$3.49

$

Usually ships in 2-12 days

0

1202A

Briggs & Stratton 820702

Screw

Note: (Brush Retainer)

$3.99

$

Usually ships in 2-12 days

0

1203

Briggs & Stratton 820702

Screw

Note: (Stator Wire)

$3.99

$

Usually ships in 2-12 days

0

1204

Briggs & Stratton 820705

Nut

Note: (Alternator Pulley)

$6.49

$

Usually ships in 2-12 days

0

1205

Briggs & Stratton 820707

Screw

Note: (Brush End Housing)

$5.49

$

Usually ships in 2-12 days

0

1206

Briggs & Stratton 820709

Nut

Note: (Brush End Housing)

$2.99

$

Usually ships in 2-12 days

0

1306

Briggs & Stratton 820781

Nut

Note: (Rectifier)

$4.99

$

Usually ships in 2-12 days

0

1307

Briggs & Stratton 820690

Stud

Note: (Drive End Housing)

$12.99

$

Usually ships in 2-12 days

0
