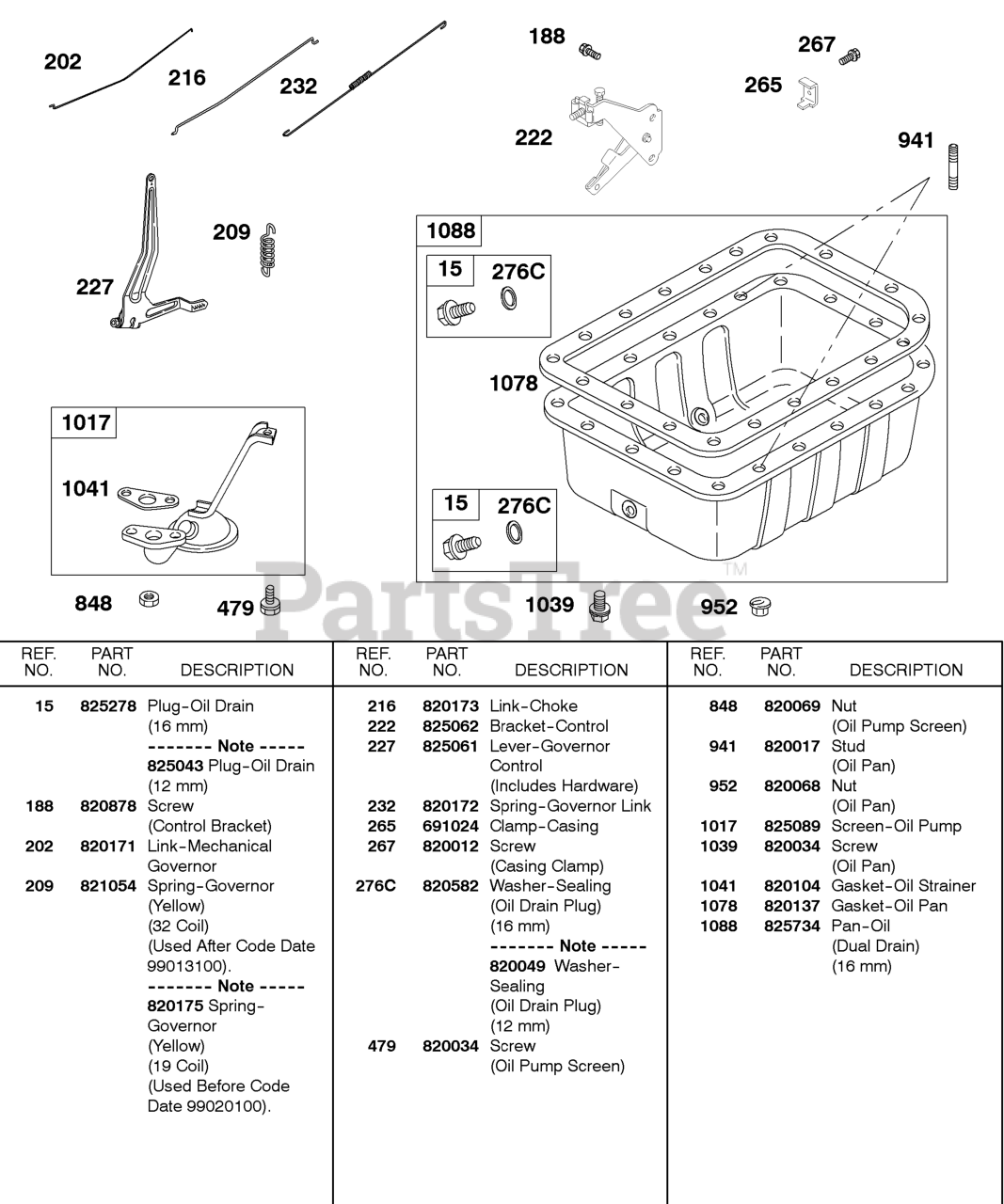

430447-0105-E1 - Briggs & Stratton Horizontal Engine Control Bracket, Springs, Oil Pan, Oil Pump Screen Parts Diagram

Horizontal Engine

Control Bracket, Springs, Oil Pan, Oil Pump Screen Parts Diagram

  • Title
15

Briggs & Stratton 825278

Plug-Oil Drain

Note: (16mm)

$11.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 825043

Plug-Oil Drain

Note: (12 mm Long)

$10.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 820878

Screw

Note: (Control Bracket)

$5.49

$

In Stock, only 1 left!

0

202

Briggs & Stratton 820171

Link-Mechanical Governor

$24.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 820175

Spring-Governor

Note: (Yellow, 19 Coil) Used Before Code Date 99020100

$10.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 821054

Spring-Governor

Note: (Yellow, 32 Coil) Used After Code Date 99013100

$16.99

$

Usually ships in 2-12 days

0

216

$22.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 825062

Bracket-Control

$358.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 825061

Lever-Governor Control

Note: (Includes Mounting Hardware)

$95.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 820172

Spring-Governor Link

$11.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 820012

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

276C

Briggs & Stratton 820049

Washer-Sealing
(Superseded to 825043)

Note: (Oil Drain Plug )(12 mm)

$10.99

$

Usually ships in 2-12 days

0

276C

Briggs & Stratton 820582

Washer-Sealing

Note: (Oil Drain Plug)(16mm)

$7.99

$

In Stock, only 2 left!

0

479

Briggs & Stratton 820034

Screw
(Superseded to 821233)

Note: (Oil Pump Screen)

$3.99

$

Usually ships in 2-12 days

0

848

Briggs & Stratton 820069

Nut

Note: (Oil Pump Screen)

$3.99

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 820017

Stud

Note: (Oil Pan)

$5.99

$

Usually ships in 2-12 days

0

952

Briggs & Stratton 820068

Nut

Note: (Oil Pan)

$3.49

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 825089

Screen-Oil Pump

$74.99

$

In Stock, only 1 left!

0

1039

Briggs & Stratton 820034

Screw
(Superseded to 821233)

Note: (Oil Pan)

$3.99

$

Usually ships in 2-12 days

0

1041

Briggs & Stratton 820104

Gasket-Oil Pump Screen

$7.99

$

Usually ships in 2-12 days

0

1078

Briggs & Stratton 820137

Gasket-Oil Pan

$43.99

$

Usually ships in 2-12 days

0

1088

Briggs & Stratton 825734

Pan-Oil

Note: (Dual Drain)(16mm)

$391.99

$

Usually ships in 2-12 days

0
