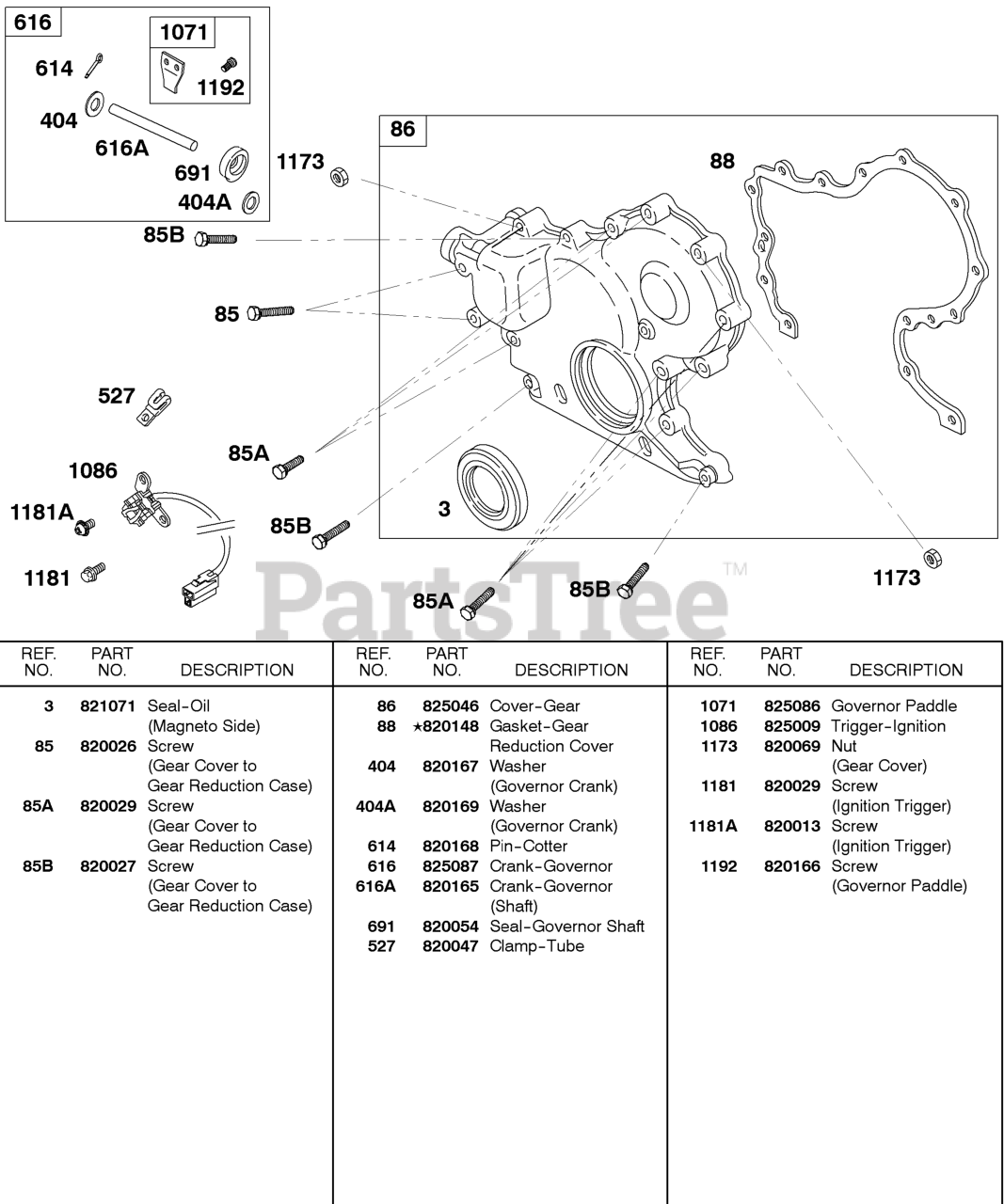

430447-0105-A1 - Briggs & Stratton Horizontal Engine Gear Cover, Ignition Trigger, Governor Crank Parts Diagram

Horizontal Engine

Gear Cover, Ignition Trigger, Governor Crank Parts Diagram

  • Title

3

Briggs & Stratton 821071

Seal-Oil
(Superseded to 821326)

Note: (Magneto Side)

$73.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 820026

Screw

Note: (Gear Cover to Gear Reduction Case)

$3.49

$

Usually ships in 2-12 days

0

85A

Briggs & Stratton 820029

Screw

Note: (Gear Cover to Gear Reduction Case)

$3.99

$

Usually ships in 2-12 days

0

85B

Briggs & Stratton 820027

Screw

Note: (Gear Cover to Gear Reduction Case)

$3.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 825046

Cover-Gear
(Superseded to 825755)

$305.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 820148

Gasket-Gear Reduction Cover

$

$

Not available

404

Briggs & Stratton 820167

Washer

Note: (Governor Crank)

$5.49

$

Usually ships in 2-12 days

0

404A

Briggs & Stratton 820169

Washer

Note: (Governor Crank)

$4.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 820047

Clamp-Tube

$4.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 820168

Pin-Cotter
(Superseded to 691550)

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 825087

Crank-Governor

$18.99

$

Usually ships in 2-12 days

0

616A

Briggs & Stratton 820165

Crank-Governor

Note: (Shaft)

$23.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 820054

Seal-Governor Shaft

$11.99

$

Usually ships in 2-12 days

0

1071

Briggs & Stratton 825086

Paddle-Governor

$8.49

$

Usually ships in 2-12 days

0

1086

Briggs & Stratton 825009

Trigger-Ignition

$128.99

$

Usually ships in 2-12 days

0

1173

Briggs & Stratton 820069

Nut

Note: (Gear Cover)

$3.99

$

Usually ships in 2-12 days

0

1181

Briggs & Stratton 820029

Screw

Note: (Ignition Trigger)

$3.99

$

Usually ships in 2-12 days

0

1181A

Briggs & Stratton 820013

Screw

Note: (Ignition Trigger)

$5.99

$

Usually ships in 2-12 days

0

1192

Briggs & Stratton 820166

Screw

Note: (Governor Paddle)

$3.99

$

Usually ships in 2-12 days

0
