43011 - Gravely Sulky Ride for 2-Wheel Tractor RIDING SULKY Parts Diagram

Sulky Ride for 2-Wheel Tractor

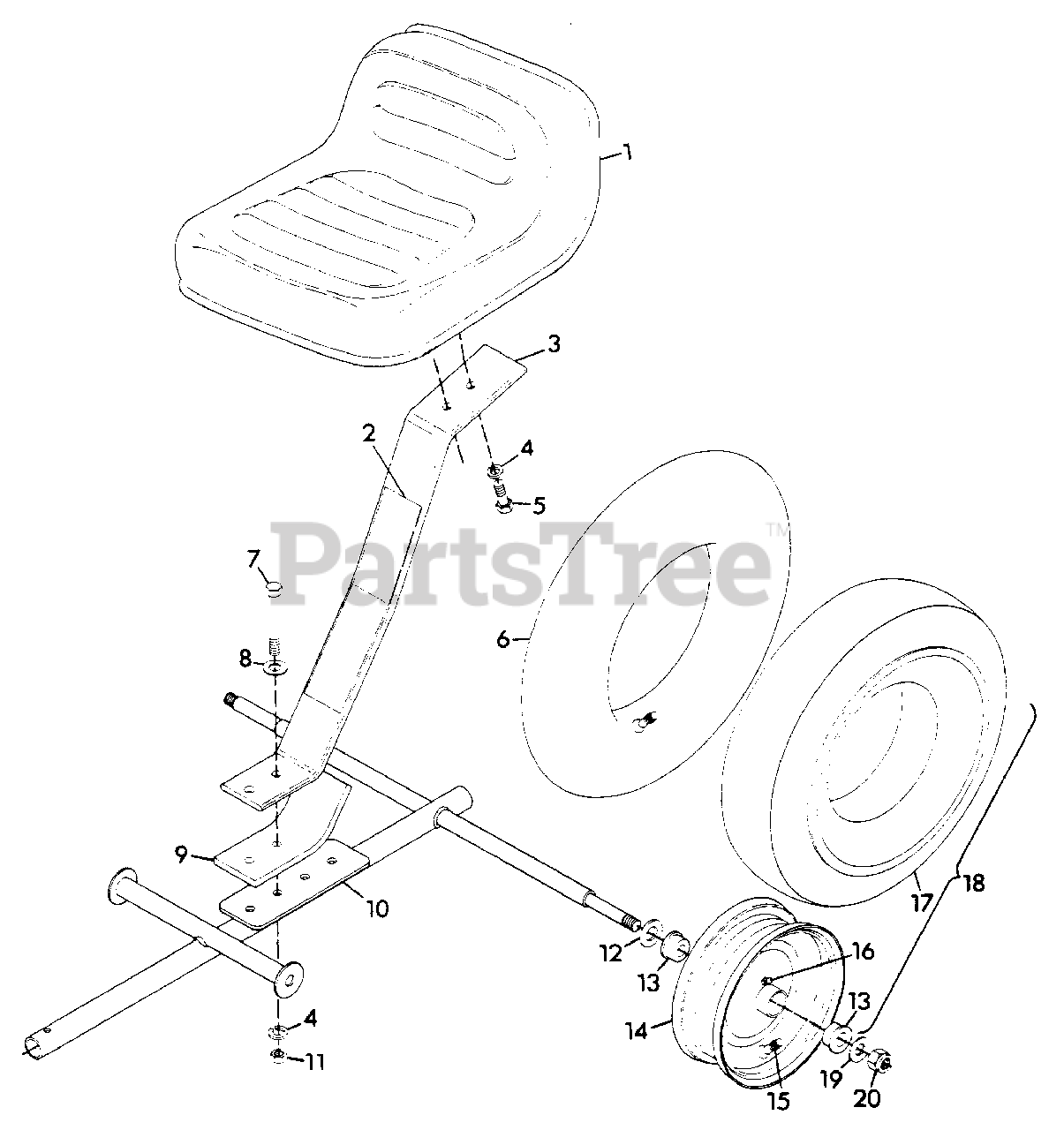

RIDING SULKY Parts Diagram

  • Title

1

Gravely 044172

SEAT, STEERING SULKY
(Superseded to 08569700)

$

$

Not available

2

Gravely 034200

DECAL, WARNING
(Superseded to 05209200)

$

$

Not available

3

Gravely 043283

ASSEMBLY, SEAT SPRING AND DECAL
(Superseded to 08551100)

$

$

Not available

4

Gravely 120384

WASHER, LOCK 1/2-13 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

5

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

6

Gravely 013573

TUBE
(Superseded to 20124600)

$

$

Not available

7

Gravely 180192

BOLT, HEX 1/2-13X3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

8

Gravely 120390

WASHER, FLAT .563X1.375X.109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 017839

PLATE, REINFORCEMENT
(Superseded to 08505453)

$

$

Not available

10

Gravely 010359

ASSEMBLY, CHASSIS RIDING SULKY
(Superseded to 08505800)

$74.99

$

Usually ships in 4-12 days

0

11

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 131017

WASHER, FLAT .812X1.496X134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 012345

BUSHING, WHEEL
(Superseded to 21523400)

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 010450

WHEEL, ASSEMBLY LESS TIRE/TUBE
(Superseded to 20042300)

$

$

Not available

15

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

16

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

17

Gravely 012356

TIRE
(Superseded to 20093800)

$

$

Not available

18

Gravely 010140

WHEEL, SULKY ASSEMBLY COMPLETE(INCLUDES ITEM NOS. 13,14,15,16,17)
(Superseded to 07132500)

Note: (INCLUDES ITEM NOS. 13,14,15,16,17)

$

$

Not available

19

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

20

Gravely 013412

NUT, LOCK 5/8-18 L.T.
(Superseded to 06530300)

$3.99

$

In Stock, only 3 left!

0
