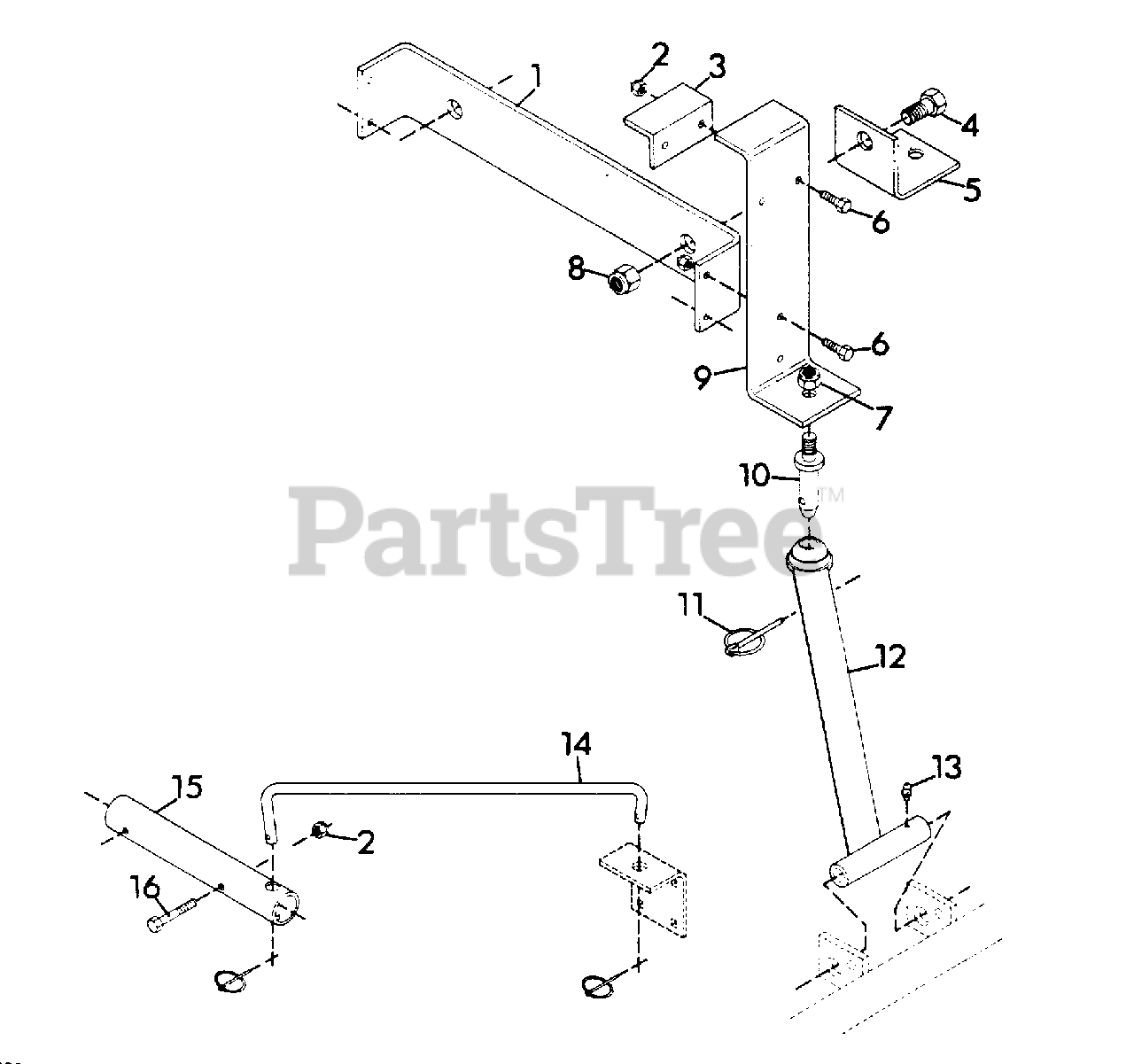

43010 - Gravely Wing Deck Adapter Kit for PM WING MOWER ADAPTER KIT FOR PRO MASTER POWER UNITS Parts Diagram

Wing Deck Adapter Kit for PM

WING MOWER ADAPTER KIT FOR PRO MASTER POWER UNITS Parts Diagram

  • Title

1

Gravely 043236

BRACE, REAR HITCH
(Superseded to 08946100)

$

$

Not available

2

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 043235

BRACKET, MOUNTING
(Superseded to 08946000)

$

$

Not available

4

Gravely 271767

BOLT, HEX 3/4-10X1.50
(Superseded to 05959600)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 043237

BRACKET, TOWING
(Superseded to 08946200)

$

$

Not available

6

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

9

Gravely 043234

BRACKET, REAR HITCH MOUNTING
(Superseded to 08945900)

$

$

Not available

10

Gravely 031930

PIN, REAR HITCH
(Superseded to 08734100)

$

$

Not available

11

Gravely 021979

PIN, LYNCH
(Superseded to 07014400)

$

$

Not available

12

Gravely 043226

WELDMENT, REAR HITCH
(Superseded to 08945600)

$

$

Not available

13

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

14

Gravely 043228

ROD, STABILIZER
(Superseded to 08945853)

$

$

Not available

15

Gravely 043238

TUBE, STABILIZER ROD MOUNTING
(Superseded to 08946300)

$

$

Not available

16

Gravely 180134

BOLT, HEX 3/8-16X2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0
