43009 - Gravely 60" Deck Adapter for 2-Wheel Tractor MOWER ADAPTER KIT Parts Diagram

60" Deck Adapter for 2-Wheel Tractor

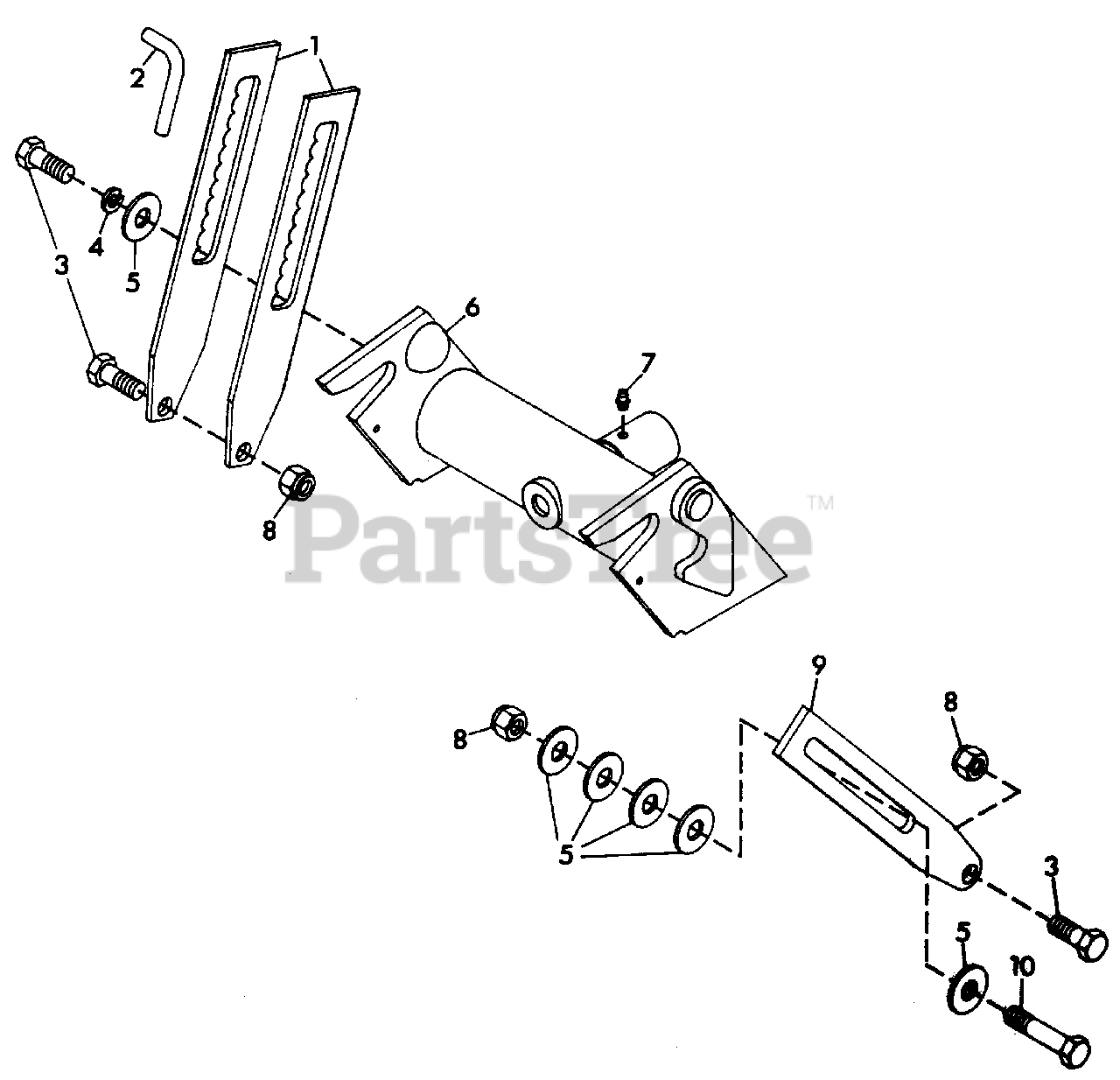

MOWER ADAPTER KIT Parts Diagram

  • Title
1

Gravely 043360

Strap
(Superseded to 08552300)

$

$

Not available

2

Gravely 043361

Pin
(Superseded to 08600100)

$

$

Not available

3

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

4

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

5

Gravely 037842

Washer, Flat 1.38x.56 Hard
(Superseded to 06427800)

$

$

Not available

6

Gravely 043306

Weldment, Adapter
(Superseded to 08551800)

$

$

Not available

7

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

8

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 043303

Strap
(Superseded to 08551600)

$

$

Not available

10

Gravely 180183

Bolt, Hex 1/2-13x2.25
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0
