43006 - Gravely 60" Deck for Gear Drive Pro-Master Mower MOWER DECK Parts Diagram

60" Deck for Gear Drive Pro-Master Mower

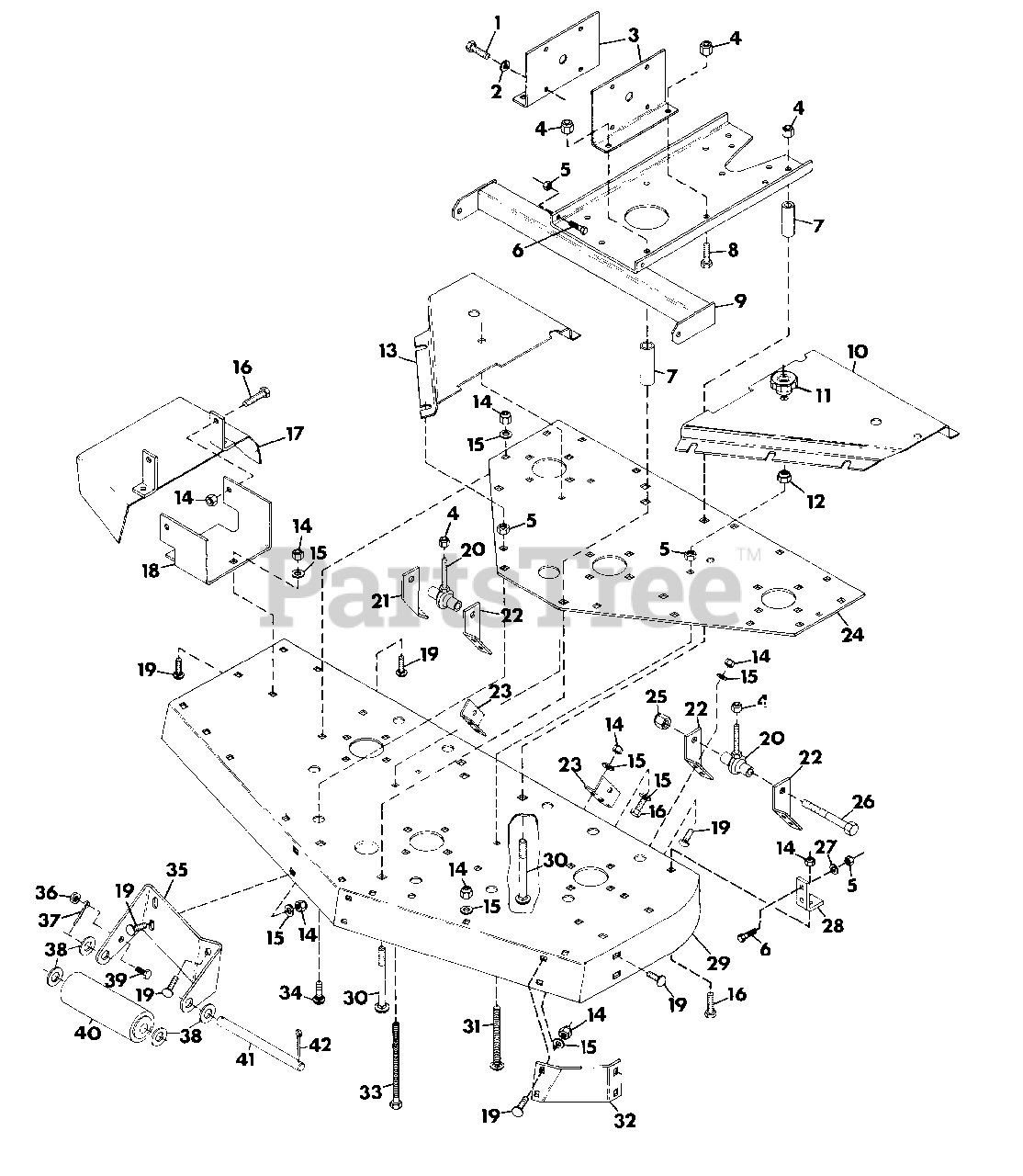

MOWER DECK Parts Diagram

  • Title
1

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

2

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 035493

PLATE, GEARBOX SUPPORT
(Superseded to 08918300)

$

$

Not available

4

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 124824

NUT, JAM 5/16-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

7

Gravely 031367

SPACER, .850X.546X2.18
(Superseded to 08827800)

$

$

Not available

8

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

9

Gravely 038593

WELDMENT, SUPPORT PLATE
(Superseded to 21246300)

$

$

Not available

10

Gravely 040535

COVER, BELT L.H.
(Superseded to 08749200)

$

$

Not available

11

Gravely 041674

KNOB
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 040534

COVER, BELT R.H.
(Superseded to 08749100)

$96.99

$

Usually ships in 4-12 days

0

14

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 035668

WELDMENT, DISCHARGE CHUTE
(Superseded to 09090300)

$

$

Not available

18

Gravely 035667

BRACKET, DISCHARGE
(Superseded to 08738100)

$

$

Not available

19

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

20

Gravely 035543

ROD, END
(Superseded to 08920953)

$62.99

$

Usually ships in 4-12 days

0

21

Gravely 035542

PLATE, REAR ADJUSTMENT
(Superseded to 08920800)

$

$

Not available

22

Gravely 035541

PLATE, REAR ADJUSTMENT
(Superseded to 08920700)

$

$

Not available

23

Gravely 037039

BRACKET, LIFT
(Superseded to 08924800)

$

$

Not available

24

Gravely 040536

PLATE, SUPPORT
(Superseded to 08936300)

$159.99

$

Usually ships in 4-12 days

0

25

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

26

Gravely 271777

BOLT, HEX 3/4-10X3.50
(Superseded to 05971500)

$

$

Not available

27

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 035685

BRACKET, LIFT PIVOT
(Superseded to 08923800)

$

$

Not available

29

Gravely 043220

WELDMENT, 60" MOWER
(Superseded to 21267500)

$

$

Not available

30

Gravely 126808

BOLT, 1/2-13X3.75 RD HD SQ NK
(Superseded to 06218600)

$7.99

$

Usually ships in 4-12 days

0

31

Gravely 040546

BOLT, 5/16-18X4 RD HD SQ NK
(Superseded to 06222500)

$3.99

$

In Stock, only 3 left!

0

32

Gravely 031354

BAFFLE, FRONT
(Superseded to 08905253)

$

$

Not available

33

Gravely 040193

BOLT, HEX 5/16-18X3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 031353

BRACKET, ROLLER FRONT
(Superseded to 08533700)

$

$

Not available

36

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

37

Gravely 103422

PIN, COTTER .25X2.0
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 031390

ROLLER, GAUGE
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

41

Gravely 024795

SHAFT, CENTER ROLLER
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

42

Gravely 179128

PIN, COTTER .25X1.0
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

NS

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 038424

DECALS, PRO MASTER-60 MOWER
(Superseded to 20648500)

$

$

Not available

NS

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

NS

Gravely 040190

DECAL, LUBE
(Superseded to 20666100)

$

$

Not available

NS

Gravely 031834

DECAL, BELT DIAGRAM
(Superseded to 05208100)

$

$

Not available
