430 XH - Husqvarna Automower Robotic Lawn Mower (2020) WHEELS & TIRES Parts Diagram

Automower Robotic Lawn Mower

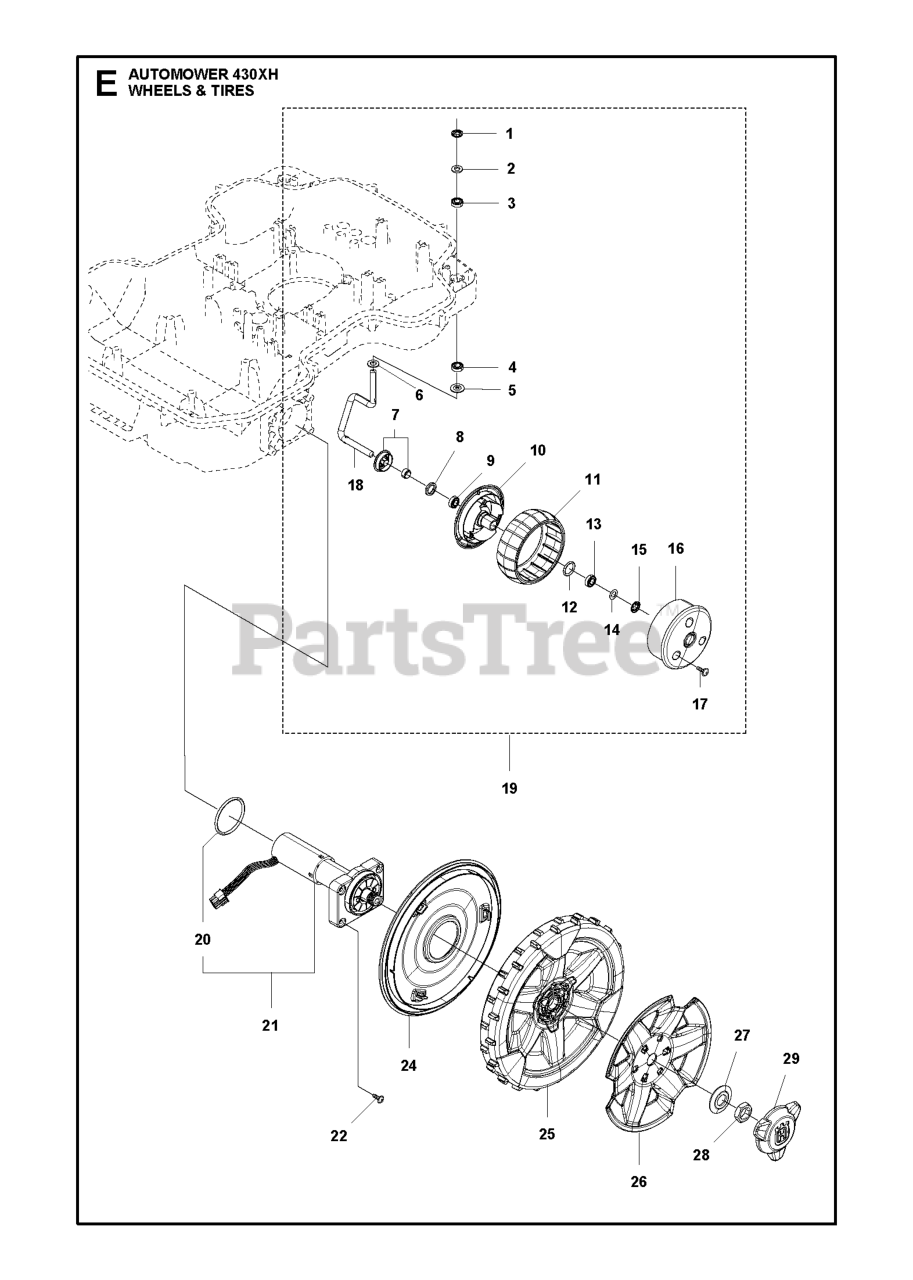

WHEELS & TIRES Parts Diagram

  • Title
6

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 576019302

LOCKWASHER PUSH-ON TYPE P 8 BV

$4.99

$

In Stock, Qty 9

0

25

Husqvarna 582272503

WHEEL SNAP FUNCTION ORANGE HVA
(Superseded to 582280203)

Note: Rear Wheel

$66.99

$

Usually ships in 3-10 days

0

5

Husqvarna 535087803

WASHER FRONT WHEEL CENTER HOLE

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 579457101

WHEEL FRONT WHEEL INSIDE

Note: Inside

$5.99

$

In Stock, only 1 left!

0

3

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$7.99

$

In Stock, only 2 left!

0

20

Husqvarna 580443902

O-RING LIGHT GREY

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581621306

Motor

Note: Wheel Motor Assy

$

$

Not available

4

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

28

Husqvarna 731432401

HEXAGON THIN NUT

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574449801

WHEEL RUBBER TYRE

Note: Tire

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

18

Husqvarna 580336101

SPINDLE SPINDLE FRONT WHEEL RI
(Superseded to 580336102)

$11.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 579457201

WHEEL FRONT WHEEL OUTSIDE

Note: Outside

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 580487101

SEALING 12X18X3

$5.99

$

In Stock, only 3 left!

0

2

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

3

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

13

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

15

Husqvarna 576019302

LOCKWASHER PUSH-ON TYPE P 8 BV

$4.99

$

In Stock, Qty 9

0

24

Husqvarna 582276001

COVER REAR WHEEL

$

$

Not available

7

Husqvarna 581621501

SHIELD KIT

$7.99

$

In Stock, only 3 left!

0

22

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 580445101

O-RING 2,62X15,54

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$7.99

$

In Stock, only 2 left!

0

9

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$7.99

$

In Stock, only 2 left!

0

4

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

$7.99

$

In Stock, only 2 left!

0

19

Husqvarna 581621401

WHEEL KIT FRONT

Note: Front Wheel Kit

$

$

Not available

27

Husqvarna 586210601

WASHER WASHER REAR WHEEL 16X40

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 579505701

WHEEL COVER REAR WHEEL

$17.99

$

In Stock, only 1 left!

0

29

Husqvarna 579505502

HUB CAP REAR WHEEL NO CENTER P

$5.99

$

Usually ships in 3-10 days

0
