430 XH - Husqvarna Automower Robotic Lawn Mower (2020) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

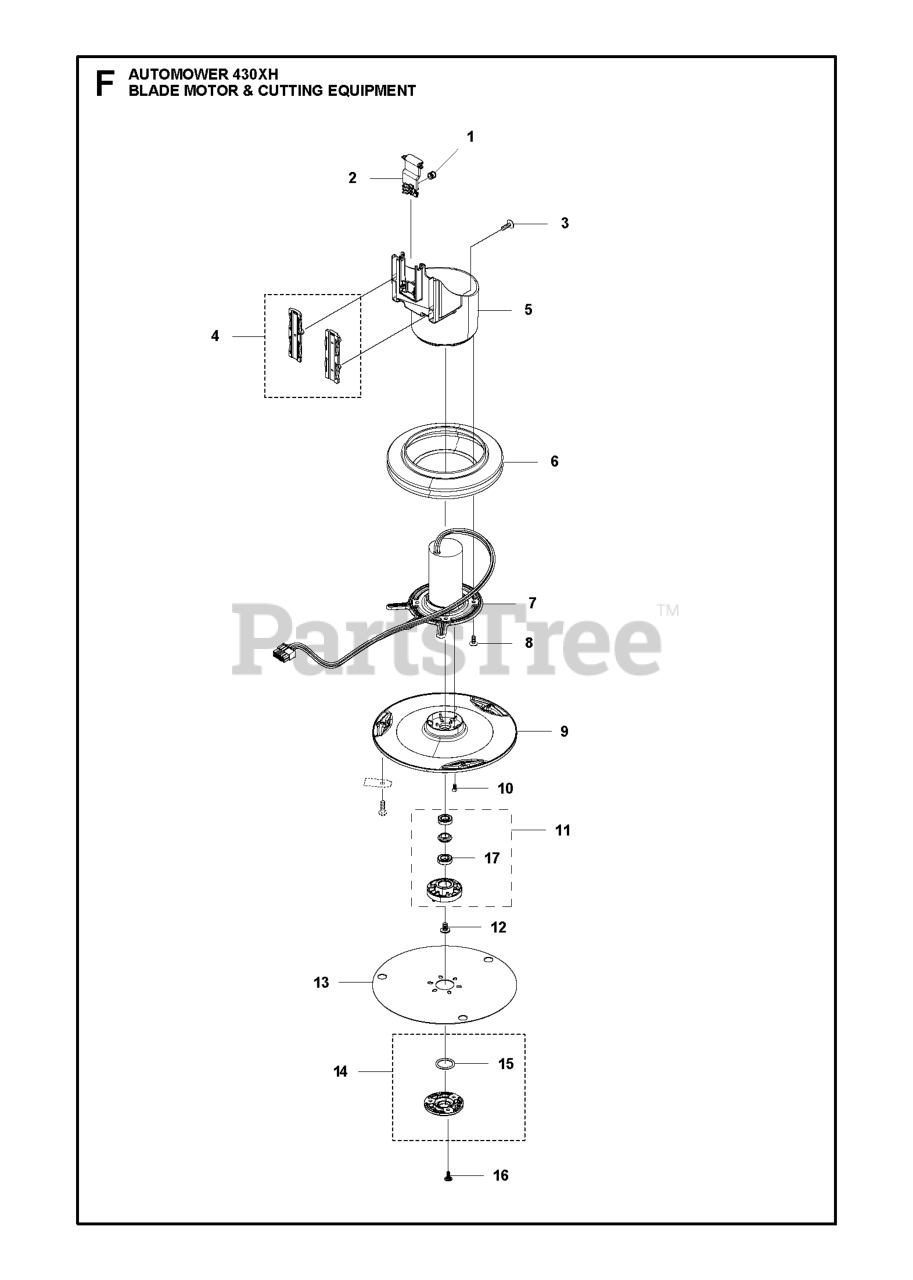

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

16

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

14

Husqvarna 587449601

COVER KIT BEARING

Note: Bearing Cover Assy

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588421702

BEARING HOUSING ASSY

$26.99

$

In Stock, only 3 left!

0

1

Husqvarna 580624401

SPRING LINK

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

6

Husqvarna 579666403

BELLOWS CUTTING SYSTEM

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

13

Husqvarna 597449801

SKID PLATES

$

$

Not available

5

Husqvarna 579564501

HOUSING CUTTING MOTOR

$22.99

$

Usually ships in 3-10 days

0

10

Husqvarna 535130502

SCREW TORX M4X8 8.8 NYLON PATC

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$319.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581621801

BEARING KIT

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

7

Husqvarna 587381401

MOTOR ASSY JE

Note: Cutting Motor Assy

$113.99

$

Usually ships in 3-10 days

0

17

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 598814401

GUARDS

$28.99

$

In Stock, only 2 left!

0

15

Husqvarna 585297501

O-RING 20X2,5 MM

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 579564601

LINK MOTOR HOUSING

$5.99

$

In Stock, only 1 left!

0
