430 X - Husqvarna Automower Robotic Lawn Mower (2018) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

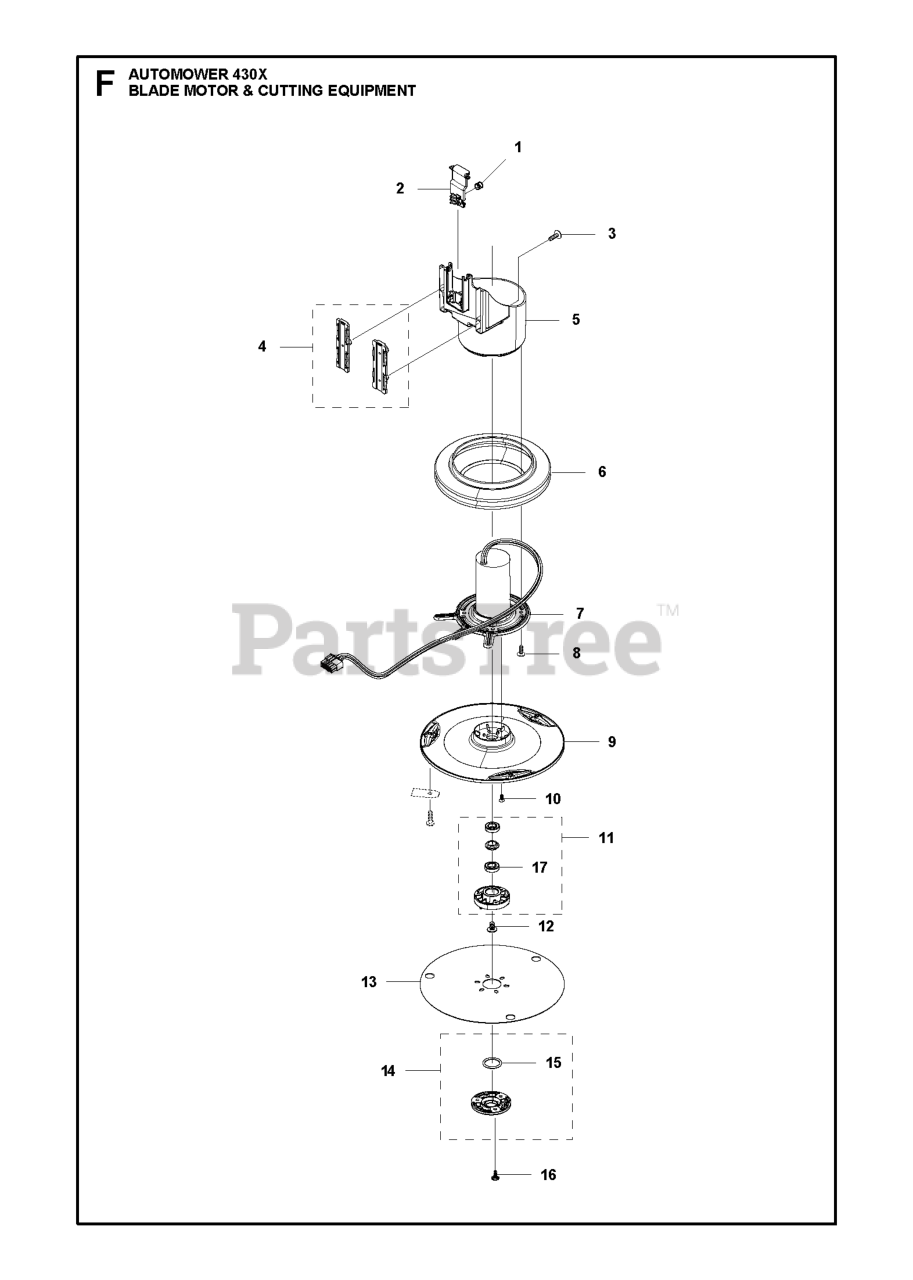

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

17

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$319.99

$

Usually ships in 3-10 days

0

16

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

4

Husqvarna 581621801

BEARING KIT

Note: Bearing KIT

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 535130502

SCREW TORX M4X8 8.8 NYLON PATC

Note: Screw

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 579564501

HOUSING CUTTING MOTOR

Note: Housing

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 579666403

BELLOWS CUTTING SYSTEM

Note: Bellows

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587378101

CUTTING DISC

Note: Cutting Disc

$31.99

$

In Stock, only 2 left!

0

14

Husqvarna 587449601

COVER KIT BEARING

Note: Bearing Cover ASSY

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588421702

BEARING HOUSING ASSY

Note: Bearing Housing ASSY

$26.99

$

In Stock, only 3 left!

0

13

Husqvarna 587378001

SKID PLATE

Note: Skid Plate

$39.99

$

In Stock, only 2 left!

0

12

Husqvarna 535076001

SCREW

Note: Screw

$4.99

$

In Stock, Qty 17

0

8

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

17

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

1

Husqvarna 580624401

SPRING LINK

Note: Spring

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587381401

MOTOR ASSY JE

Note: Cutting Motor ASSY

$113.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585297501

O-RING 20X2,5 MM

Note: O-Ring

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 579564601

LINK MOTOR HOUSING

Note: Link

$5.99

$

In Stock, only 1 left!

0

3

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0
