430 (217-430-100) - Cub Cadet Rear-Tine Tiller Engine (1987) B&S 5.0 HP-130202-2153-01 Part 2 Parts Diagram

Rear-Tine Tiller Engine

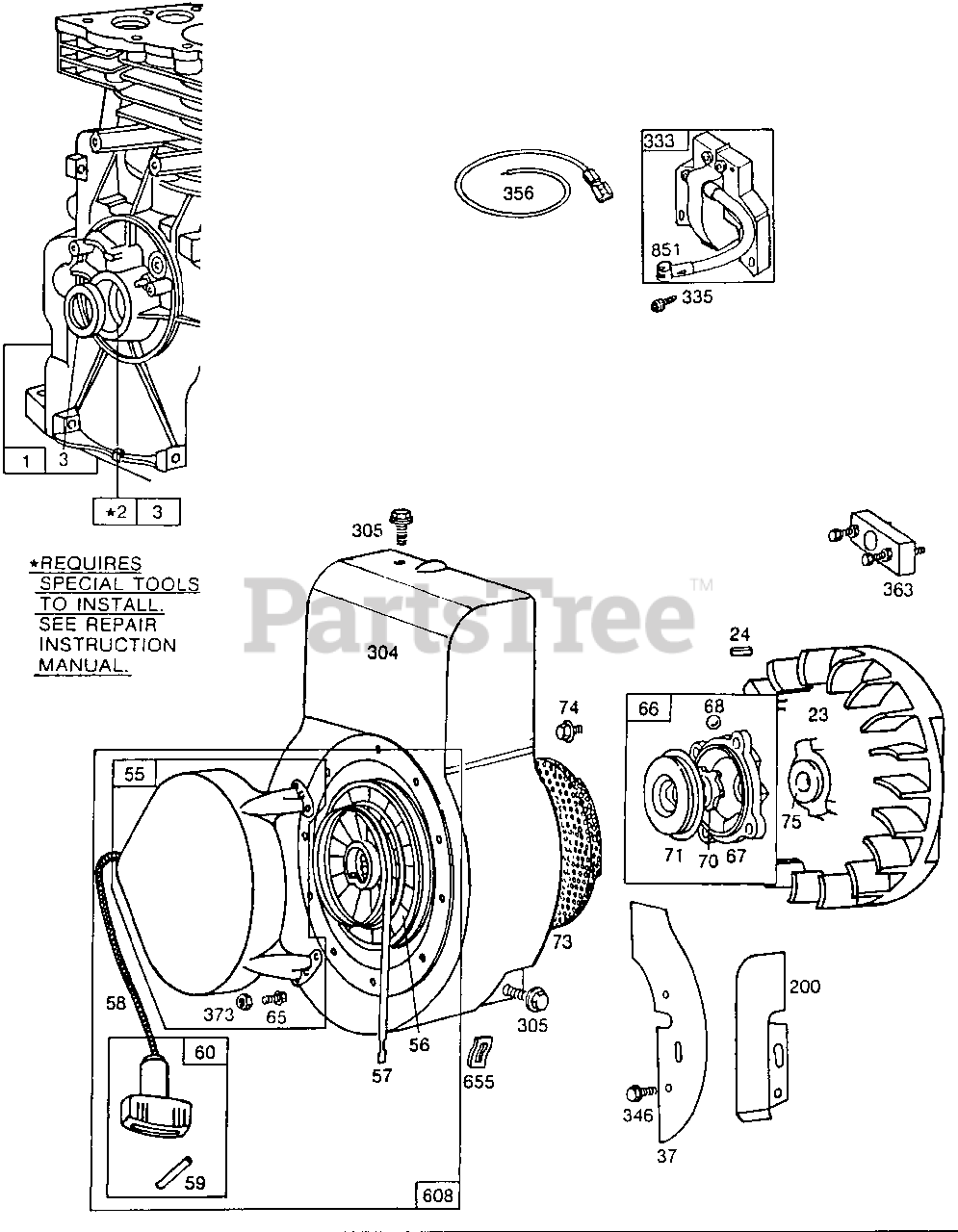

B&S 5.0 HP-130202-2153-01 Part 2 Parts Diagram

  • Title
1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-297565

Bushing-Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

23

Cub Cadet BS-297229

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222443

Guard-Flywheel

$

$

Not available

55

Cub Cadet BS-299431

Housing-Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley-Rewind Starter (Includes 63" Long Rope)

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-294303

Spring-Rewind Starter
(Superseded to BS-490179)

$

$

Not available

58

Cub Cadet BS-66884

Rope-Rewind Starter-63" Long
(Superseded to BS-692188)

$8.49

$

Usually ships in 2-12 days

0

59

Cub Cadet BS-230228

Pin-Starter Grip

$

$

Not available

60

Cub Cadet BS-393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

65

Cub Cadet BS-93105

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

66

Cub Cadet BS-399671

Clutch Assembly-Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298436

Ratchet-Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer-Clutch Retainer (Rubber Coated)

$

$

Not available

73

Cub Cadet BS-221923

Screen-Starter Pulley

$

$

Not available

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

200

$

$

Not available

304

Cub Cadet BS-299410

Housing-Blower

$

$

Not available

305

Cub Cadet BS-93158

Screw-Blower Housing Mounting

$

$

Not available

333

Cub Cadet BS-397358

Armature Assembly

$53.99

$

In Stock, Qty 20+

0

335

Cub Cadet BS-93414

Screw-Armature Mtg. Sem

$

$

Not available

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

363

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

373

$

$

Currently unavailable

608

Cub Cadet BS-390463

Starter Ass'y.-Rewind

$

$

Not available

655

Cub Cadet BS-222598

Anchor Spring

$

$

Not available

851

Cub Cadet BS-221798

Cable Terminal Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0
