430 (217-430-100) - Cub Cadet Rear-Tine Tiller (1987) Rear Tine Tiller Part 1 Parts Diagram

Rear-Tine Tiller

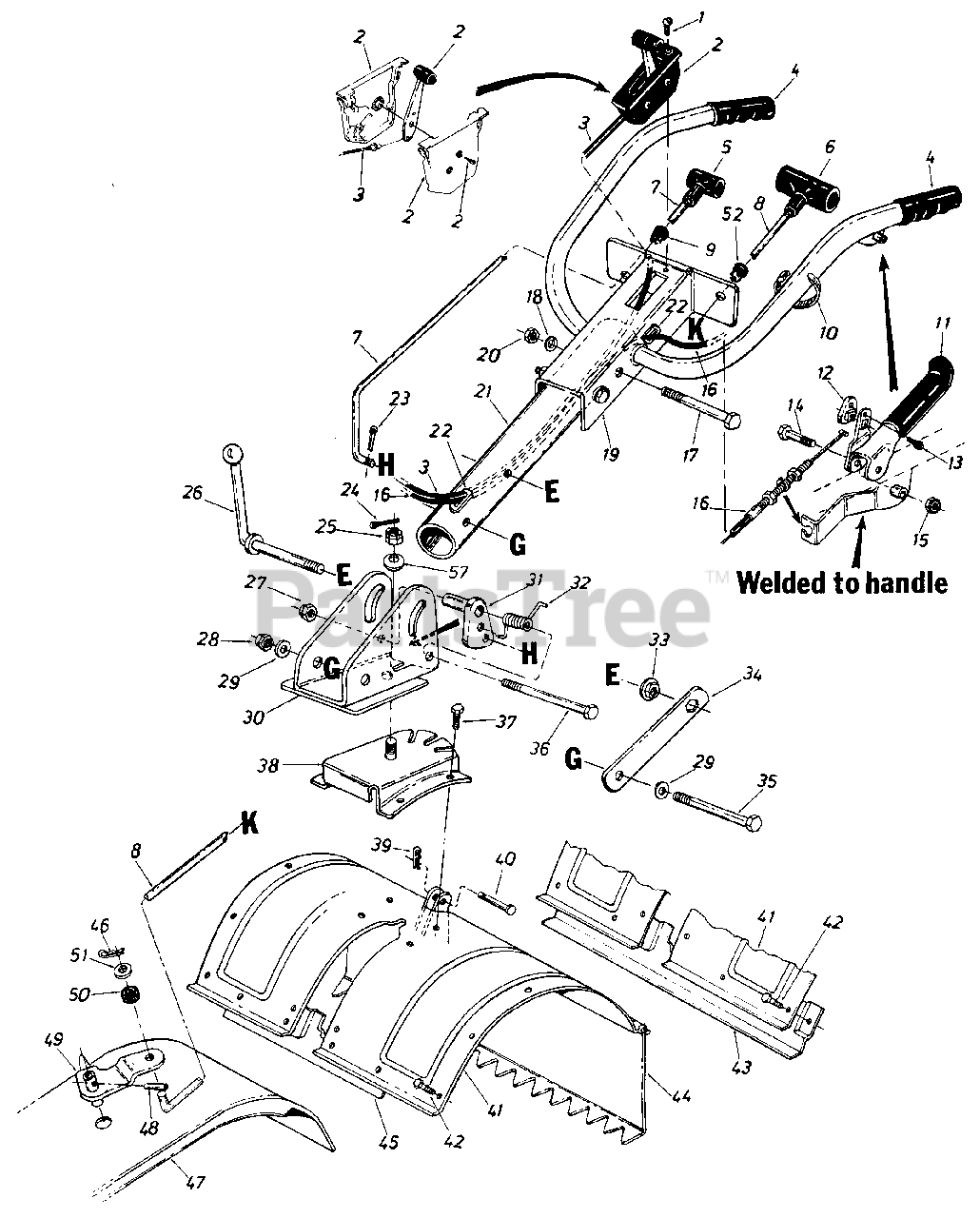

Rear Tine Tiller Part 1 Parts Diagram

  • Title

1

Cub Cadet 710-0779

SCREW-TRUSS TAP
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 831-0823

CONTROL BOX-THROTTLE
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

3

Cub Cadet 746-0513

CABLE-THROTTLE
(Superseded to 946-0513B)

$19.99

$

In Stock, only 3 left!

0

4

Cub Cadet 720-0180

GRIP-BLACK
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet 720-0210

KNOB-T
(Superseded to 720-0210A)

$15.99

$

In Stock, only 2 left!

0

6

Cub Cadet 720-0209

KNOB-T

$21.99

$

In Stock, only 2 left!

0

7

Cub Cadet 747-0666

ROD-CLUTCH

$25.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 747-0664

ROD-CONTROL

$23.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 735-0228

BUSHING

$

$

Not available

10

Cub Cadet 725-0157

TIE-CABLE

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 784-0202

GRIP ASSY-LH
(Superseded to 684-04399A-0637)

$33.99

$

In Stock, only 4 left!

0

12

Cub Cadet 746-0605

HOLD DOWN-CABLE
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0919

SCREW-TAP

$4.99

$

In Stock, Qty 8

0

14

Cub Cadet 710-0427

SCREW-HEX 3/8-16 X 2.00
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0266

NUT-HEX CENTER L-JAM
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

16

Cub Cadet 746-0612

CABLE-CLUTCH CONTROL
(Superseded to 946-0612)

$71.99

$

In Stock, only 3 left!

0

17

Cub Cadet 710-0194

SCREW-HEX 3/8-16 X 3.00

$

$

Not available

18

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 8

0

19

Cub Cadet 784-0185

HANDLE ASSY
(Superseded to 649-0030-0638)

Note: Color Code 499

Variations

Cub Cadet 784-0185-0638

USE 649-0030-0638 HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0185-0665

USE 649-0030-0665 HANDLE ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet 784-0189

TUBING ASSY-HDLE

Variations

Cub Cadet 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 784-0189-0498

USE 784-0189-0637 TUBE ASM-HN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0189-0637

TUBE ASM-HNDL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0189-0638

USE 784-0189-0637 TUBE ASM-HN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0189-0648

USE 784-0189-0637 TUBE ASM-HN - TECH GRAY (0648)

$

$

Not available

Cub Cadet 784-0189-0650

USE 784-0189-0637 TUBE ASM-HN - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0189-0662

USE 784-0189-0637 TUBE ASM-HN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0189-0665

USE 784-0189-0637 TUBE ASM-HN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-0189-0691

USE 784-0189-0637 TUBE ASM-HN - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

22

Cub Cadet 735-0226

GROMMET

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 714-0111

PIN-COTTER-3/32 DIA X 1.00

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 712-0386

NUT-HEX SLOTTED
(Superseded to 712-0386A)

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 784-0190

CRANK

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

29

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 784-0182

PIVOT BRKT ASSY
(Superseded to 684-0263A-0637)

$

$

Not available

31

Cub Cadet 784-0183

CRANK ASSY-POS

$

$

Not available

32

Cub Cadet 732-0493

SPRING-HDL ADJ

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-0379

NUT-HEX FLANGE

$4.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 784-0191

BRACKET-RETAINER

$7.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0644

SCREW-HEX 3/8-16 X 3.25
(Superseded to 710-3130)

$10.99

$

In Stock, only 1 left!

0

36

Cub Cadet 710-0521

SCREW-HEX 3/8-16 X 3.00

$5.49

$

In Stock, Qty 11

0

37

Cub Cadet 710-0216

SCREW-HEX 3/8-16 X .75

$4.49

$

In Stock, Qty 15

0

38

Cub Cadet 784-0181

BRACKET ASSY
(Superseded to 686-0071)

$

$

Not available

39

Cub Cadet 714-0145

PIN-INTERN COT

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 711-0415

PIN-CLEVIS 3/8 X 1.620

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 784-0156

SHIELD-TINE

Variations

Cub Cadet 784-0156-0483

SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0156-0498

SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0156-0499

SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-0156-0637

SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0156-0638

SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0156-0662

SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0156-0665

SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 784-0210

BRACKET-REINF

$

$

Not available

44

Cub Cadet 14979

FLAP-HINGE
(Superseded to 786-0113)

Note: Color Code 498

Variations

Cub Cadet 14979-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet 14979-0638

USE 786-0113A-0638 SHIELD-REA - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0665

USE 786-0113A-0665 SHIELD-REA - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0606

REAR TINE SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 14979-0662

REAR TINE SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

45

Cub Cadet ~UNKNOWN

UNKNOWN

$

$

Currently unavailable

46

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 784-0208

COVER-SHIFT

$

$

Not available

48

Cub Cadet 715-0120

PIN-SPRING SPIR 3/16 X 1.00

$10.99

$

In Stock, only 1 left!

0

49

Cub Cadet 784-0173

CRANK ASSY-SHIFT

$

$

Not available

50

Cub Cadet 735-0127

WASHER-RUBBER

$6.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-0133

WASHER-FL-.406 ID X 1.25 OD

$5.49

$

In Stock, Qty 7

0

52

Cub Cadet 735-0227

BUSHING

$

$

Not available

57

Cub Cadet 736-0317

WASHER-BELL

$7.99

$

In Stock, Qty 20+

0
