430 (210-430-100) - Cub Cadet Rear-Tine Tiller (1990) Transmission Parts Diagram

Rear-Tine Tiller

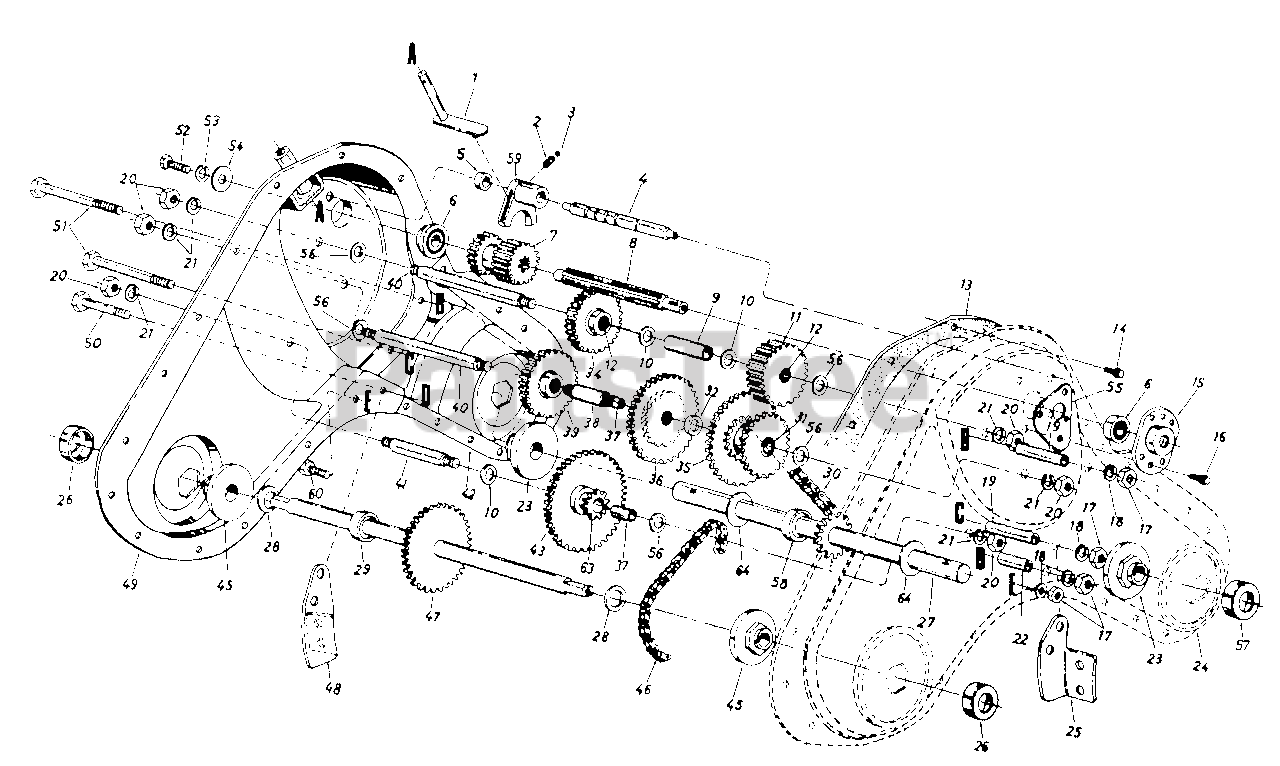

Transmission Parts Diagram

  • Title

1

Cub Cadet 784-0171A

BRACKET ASSY-SHIFT

$

$

Not available

2

Cub Cadet 732-0496

SPRING-COMPRESSION
(Superseded to 932-0496)

$4.99

$

In Stock, Qty 10

0

3

Cub Cadet 741-0862

BALL-DETENT

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 738-0645

SHAFT-DETENT

$61.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 750-0664

SPACER-.505 1D

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

7

Cub Cadet 717-0851

GEAR-SPUR-16T

Note: (Input)

$

$

Not available

8

Cub Cadet 717-0852

SHAFT-INPUT

$

$

Not available

9

Cub Cadet 750-0651

SPACER

$

$

Not available

10

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 717-0857

GEAR-SPUR-30T

$

$

Not available

12

Cub Cadet 741-0478

BEARING-NEEDLE
(Superseded to 941-0478)

$

$

Not available

13

Cub Cadet 721-0211

GASKET
(Superseded to 921-0211)

$

$

Not available

14

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 784-0211

HOUSING-BRG

$

$

Not available

16

Cub Cadet 710-0642

SCREW-HEX HD TAP 1/4-20 X 7.5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 750-0662

SPACER-1.560 1D

$

$

Not available

20

Cub Cadet 712-0378

NUT-HEX 7/16-20

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0407

WASHER-FL

$3.99

$

In Stock, Qty 12

0

22

Cub Cadet 750-0661

SPACER-1.015 1D

$

$

Not available

23

Cub Cadet 741-0420

BEARING
(Superseded to 941-0420B)

$38.99

$

In Stock, Qty 11

0

24

Cub Cadet 784-0214

HOUSING ASSY-LH

$

$

Not available

25

Cub Cadet 784-0193

BRACKET

Variations

Cub Cadet 784-0193-0637

BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 784-0166

COVER ASSY-DUST
(Superseded to 721-0379)

$18.99

$

In Stock, only 2 left!

0

27

Cub Cadet 784-0168

SHAFT ASSY-TINE
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

28

Cub Cadet 736-0403

WASHER-FL
(Superseded to 936-0351)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 750-0671

SPACER
(Superseded to 950-0671)

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 713-0226

#50 CHAIN 5/8 PITCH X 52L E
(Superseded to 913-0226)

$102.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-0488

BEARING-NEEDLE

$

$

Not available

32

Cub Cadet 736-0402

WASHER-FL

$

$

Not available

Cub Cadet 717-0854

GEAR-SPUR-30T

$

$

Currently unavailable

34

Cub Cadet 717-0854

GEAR-SPUR-30T

$

$

Currently unavailable

35

Cub Cadet 717-0874

GEAR-30/44T
(Superseded to 917-0874)

$

$

Not available

36

Cub Cadet 717-0863

GEAR-SPUR-44T

$

$

Not available

37

Cub Cadet 741-0181

BEARING-SLEEVE .627 X .750 X .936
(Superseded to 941-0181)

$

$

Not available

38

Cub Cadet 717-0835

HUB-GEAR

$

$

Not available

39

Cub Cadet 717-0855

GEAR-SPUR-30T

$

$

Not available

40

Cub Cadet 738-0647

JACKSHAFT

$

$

Not available

41

Cub Cadet 738-0648

JACKSHAFT

$51.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 784-0215

HOUSING ASSY-RH
(Superseded to 686-0073-0637)

Variations

Cub Cadet 784-0215-0637

USE 686-0073-0637 HOUSING R.H - POWDER BLACK (0637)

$

$

Not available

$

$

43

Cub Cadet 717-0858

GEAR-SPUR-55T

$

$

Not available

45

Cub Cadet 741-0421

BEARING

$

$

Not available

46

Cub Cadet 713-0367

#420 CHAIN-1/2 PITCH
(Superseded to 913-0367)

$51.99

$

In Stock, only 2 left!

0

47

Cub Cadet 784-0170

SHAFT ASSY-WHEEL

$

$

Not available

48

Cub Cadet 784-0192

BRACKET-RH

Variations

Cub Cadet 784-0192-0637

BRACKET (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

49

Cub Cadet 784-0195

HOUSING ASSY-RH

Variations

Cub Cadet 784-0195-0637

HOUSING ASSEMBLY (RH) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0195-0638

HOUSING ASSEMBLY (RH) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

50

Cub Cadet 710-0116

SCREW-HEX 5/16-18 X 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 710-0378

SCREW-HEX

$4.99

$

In Stock, only 4 left!

0

52

Cub Cadet 710-0513

BOLT - 1/4-28 X 5/8 61.5
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

53

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0176

WASHER-FL

$4.99

$

In Stock, only 4 left!

0

55

Cub Cadet 784-0207

BRACKET-GEAR POS

$

$

Not available

56

Cub Cadet 736-0406

WASHER-FL
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

57

Cub Cadet 784-0167

COVER-DUST
(Superseded to 921-0378)

$18.99

$

In Stock, only 2 left!

0

58

Cub Cadet 750-0570

SPACER
(Superseded to 950-0570)

$10.99

$

In Stock, only 4 left!

0

59

Cub Cadet 717-0853

FORK-SHIFT
(Superseded to 717-0853A)

$83.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 784-0162

SPROCKET ASSY-10T
(Superseded to 984-0162A)

$

$

Not available

64

Cub Cadet 736-0163

WASHER-FL-1.03 ID X 1.62 X .03 HD

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0223

GREASE
(Superseded to 737-0300A)

Note: (27 oz. Req'd.)

$34.99

$

In Stock, Qty 20+

0
